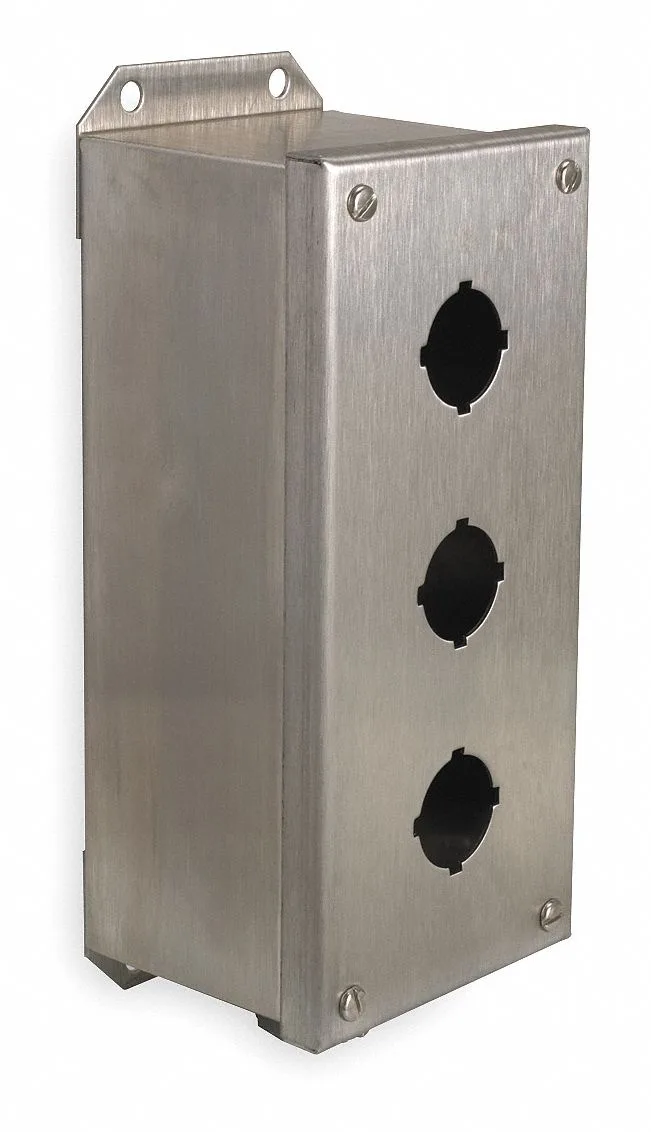

Stainless steel pushbutton enclosure, three 30 mm holes, 10.24 in high

Schneider Electric

Schneider Electric 9001KYSS3 304 stainless pushbutton enclosure 10.24 in H 3 hole 30 mm

SKU CH-HQAP-3PQ53

A 304 stainless-steel enclosure with three 30 mm push-button holes, NEMA 1, 3, 4, 4X and 13 ratings, measuring 10.24 in high by 4.18 in wide by 3.63 in deep

  • Engine BrandSCHNEIDER ELECTRIC
  • 304 stainless steel resists corrosion in harsh environments
  • NEMA 1, 3, 4, 4X and 13 ratings protect against dust and water ingress
  • Three 30 mm holes accept standard pushbuttons and switches
  • Compact 10.24 in H × 4.18 in W × 3.63 in D fits tight panel spaces
  • 3/4 in conduit entry simplifies wiring installation

Enclosure for 30 mm pushbuttons

The Schneider Electric 9001KYSS3 is a 304 stainless steel enclosure built to house three 30 mm pushbuttons in a single column. It measures 10.24 in high, 4.18 in wide and 3.63 in deep with a 3/4 in conduit entry. NEMA 1, 3, 4, 4X and 13 ratings confirm protection against dust, water jets and corrosion. The unit meets RoHS compliance and ships new.

Replacing non-rated or smaller boxes

Upgrade from an unrated plastic or painted steel box when the installation demands NEMA 4X wash-down resistance or NEMA 13 oil-tight sealing. The jump is worth it in food-processing, marine or outdoor environments where 304 stainless withstands chemical cleaning and salt spray that would degrade lesser materials. A three-hole layout also consolidates controls that would otherwise require multiple single-hole enclosures.

Mounting and wiring considerations

The enclosure fits panels or machine frames with its compact 10.24 in by 4.18 in footprint and accepts standard 3/4 in conduit for cable entry. Three 30 mm cut-outs are pre-drilled, freeing the installer from layout and drilling work. Stainless construction eliminates the need for separate corrosion-resistant coatings, reducing long-term maintenance in harsh industrial settings.

Highlights

  • 304 stainless steel resists corrosion in harsh environments
  • NEMA 1, 3, 4, 4X and 13 ratings protect against dust and water ingress
  • Three 30 mm holes accept standard pushbuttons and switches
  • Compact 10.24 in H × 4.18 in W × 3.63 in D fits tight panel spaces
  • 3/4 in conduit entry simplifies wiring installation

Specifications

Engine BrandSCHNEIDER ELECTRIC

Questions about this item

What are the exact height, width and depth measurements of the 9001KYSS3 enclosure?

The enclosure measures 10.24 in high, 4.18 in wide and 3.63 in deep.

How is the 9001KYSS3 mounted and which step is often missed?

Mount the box using the rear lugs; the step often missed is tightening the conduit locknut on the 3/4 in entry to maintain the NEMA 4X seal.

What maintenance will the 304 stainless enclosure and its 30 mm pushbutton cut-outs need over time?

Inspect the gasket annually, clean the 304 stainless surface with mild detergent, and verify that unused 30 mm holes remain sealed to preserve the NEMA 13 rating.
