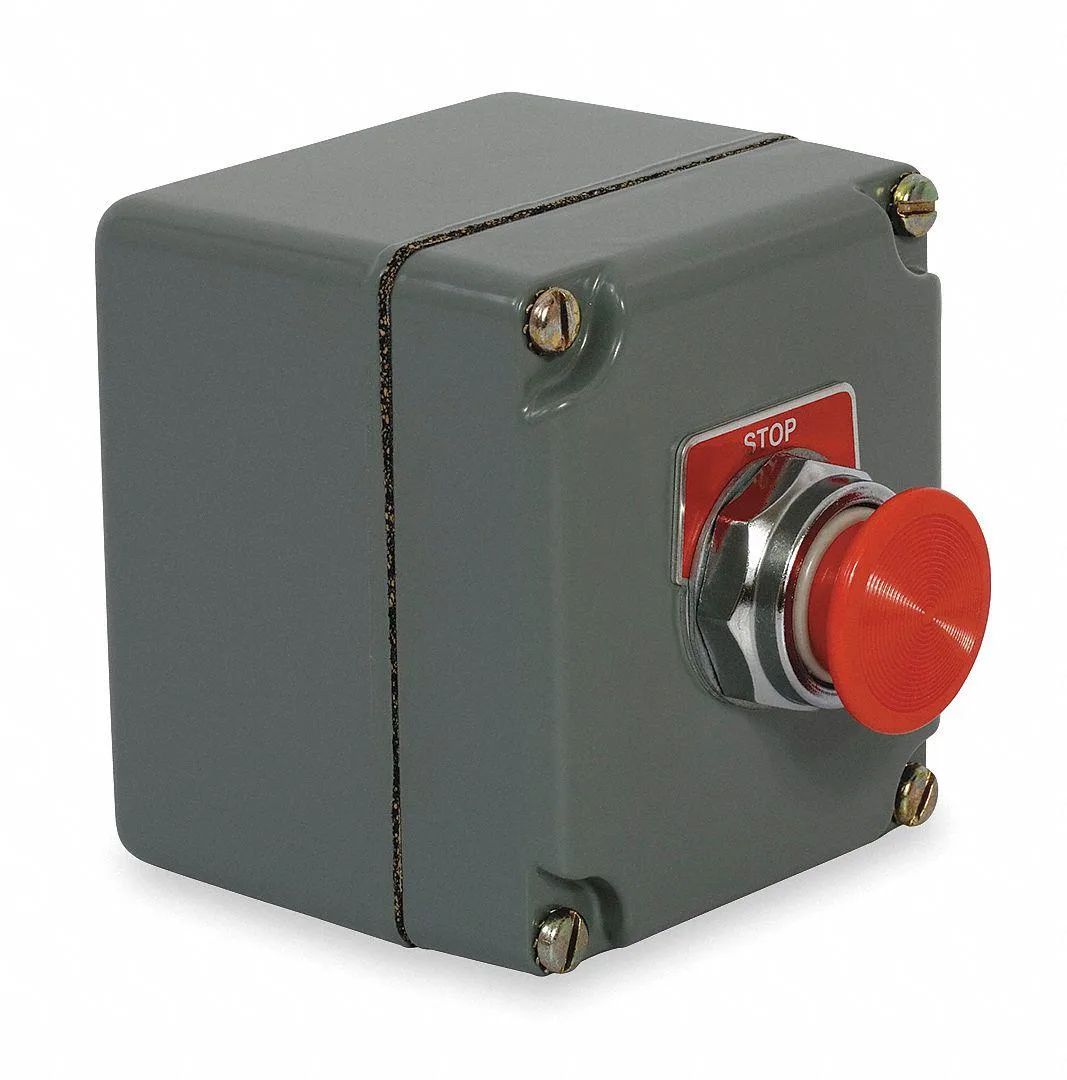

Schneider Electric red mushroom push button station in gray zinc enclosure

Schneider Electric

Schneider Electric 9001KYK14 30 mm Push Button Control Station Red

SKU CH-0NJQ-ET978

A 30 mm red mushroom-head push button station with 1NO/1NC contacts rated 10A at 600V AC in a zinc IP66 enclosure

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30 mm
  • Momentary mushroom-head push button for emergency stop control
  • 10 A AC / 2.5 A DC contact rating handles industrial loads
  • IP66 and NEMA 1, 3, 4, 13 enclosure resists dust and water
  • Zinc die-cast housing with 3/4 in NPT hub for wall mounting
  • 30 mm operator size fits standard panel cut-outs

30 mm Red Mushroom-Head Stop Station

This Schneider Electric 9001KYK14 control station provides a single momentary push-button operator with a red mushroom head marked "Stop". It is built for industrial environments requiring a durable emergency-stop or machine-stop interface.

NEMA 1 3 4 13 and IP66 zinc enclosure

The die-cast zinc housing carries NEMA 1, 3, 4 and 13 ratings plus IP66 ingress protection, shielding the internal contact block from dust, water jets and oil. A 3/4 in NPT hub allows direct conduit entry for secure wiring.

10 A 600 V AC contact rating and wall mounting

Verify that your control circuit does not exceed 10 A at 600 V AC or 2.5 A at 24 V DC, matching the A600/Q600 designation. The unit mounts on a flat wall surface and measures 3.53 in high, 3.58 in wide and 4 in deep, so confirm available panel space before ordering.

Highlights

  • Momentary mushroom-head push button for emergency stop control
  • 10 A AC / 2.5 A DC contact rating handles industrial loads
  • IP66 and NEMA 1, 3, 4, 13 enclosure resists dust and water
  • Zinc die-cast housing with 3/4 in NPT hub for wall mounting
  • 30 mm operator size fits standard panel cut-outs

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30 mm

Questions about this item

How often should the mushroom-head push button be inspected or replaced?

The momentary 30 mm red operator uses a 1NO/1NC contact block rated 10A at 600V AC and 2.5A at 24V DC; replace the block when contacts show wear or fail continuity tests.

What is the first limit reached during continuous operation?

The A600/Q600 contact rating caps sustained current at 10A AC or 2.5A DC; exceeding either value will trip the thermal limit before the IP66 enclosure or zinc housing is stressed.

How much heat does the station generate when the button is held all day?

Power dissipation stays low because the contacts only draw the load current — up to 10A at 600V AC or 2.5A at 24V DC — with no internal electronics to add heat.
