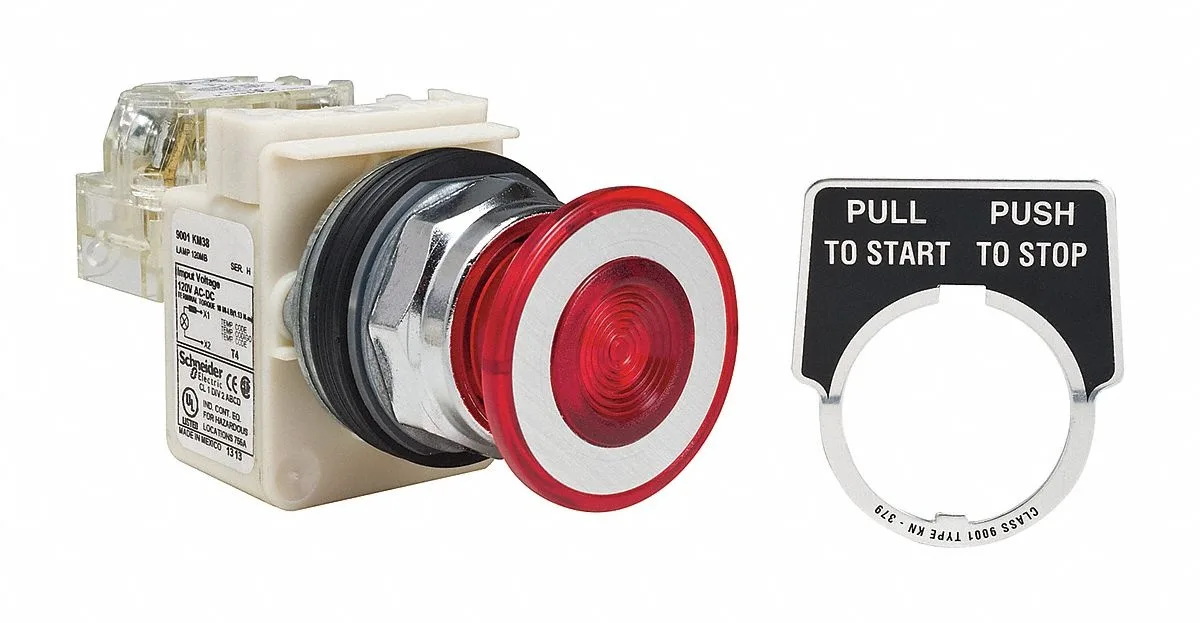

Red illuminated mushroom push button 30 mm chrome bezel

Schneider Electric

Schneider Electric 9001KR9P38RH13 Illuminated Push Button 30 mm Red 1NO/1NC

SKU CH-SKY5-M9S7Q

Red 30 mm mushroom-head push button with maintained action, 10 A contact rating, IP66 and NEMA 1, 2, 3, 3R, 4, 6, 12, 13 protection

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30 mm
  • Illuminated red mushroom head for clear emergency identification
  • 30 mm mounting fits standard industrial panels
  • Maintained action stays engaged until manually released
  • IP66 and NEMA 4/6/13 ratings resist dust and water ingress
  • 10 A at 600 V AC contact rating handles heavy control circuits

Schneider Electric 9001KR9P38RH13 illuminated push

This Schneider Electric 9001KR9P38RH13 is a 30 mm red mushroom-head push button designed for industrial control panels. It provides a maintained action with a pull-to-start and push-to-stop legend, suited for operators who need clear visual status and reliable manual control in machinery or process equipment.

Thermals noise and power draw

The unit carries a contact rating of 10A at 600V AC with NEMA A600/Q600 designation, so it handles substantial switching loads without generating heat or noise of its own. An IP66 rating and NEMA 1, 2, 3, 3R, 4, 6, 12, 13 enclosures protect the contacts from dust and water ingress, ensuring consistent electrical performance in harsh environments.

Build fit and freedoms

The 41 mm mushroom head mounts in a standard 30 mm cutout with a chrome-plated metal bezel, leaving panel space free for additional operators or indicators. SPDT contact form gives both normally-open and normally-closed paths in one device, reducing the need for a second button. CE, CSA, UL, REACH, RoHS and WEEE compliance simplifies regulatory approval for the complete assembly.

Highlights

  • Illuminated red mushroom head for clear emergency identification
  • 30 mm mounting fits standard industrial panels
  • Maintained action stays engaged until manually released
  • IP66 and NEMA 4/6/13 ratings resist dust and water ingress
  • 10 A at 600 V AC contact rating handles heavy control circuits

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30 mm

Questions about this item

How do I mount the 30 mm mushroom head push button and what step is often missed?

Drill a 30 mm panel cut-out, insert the operator, and secure the chrome-plated metal bezel with the locking nut; the step often missed is tightening the nut to the specified torque so the IP66 seal seats correctly.

Which parts will need replacement after extended use?

The SPDT contact block rated 10 A at 600 V AC and the red plastic mushroom head are the wear items; replace the contact block if switching becomes unreliable or the head if the legend or colour fades.

What is the first limit reached during continuous operation?

The 10 A / 600 V AC contact rating is the primary limit; sustained currents above 10 A or voltages above 600 V AC will exceed the A600/Q600 designation and cause premature contact wear.
