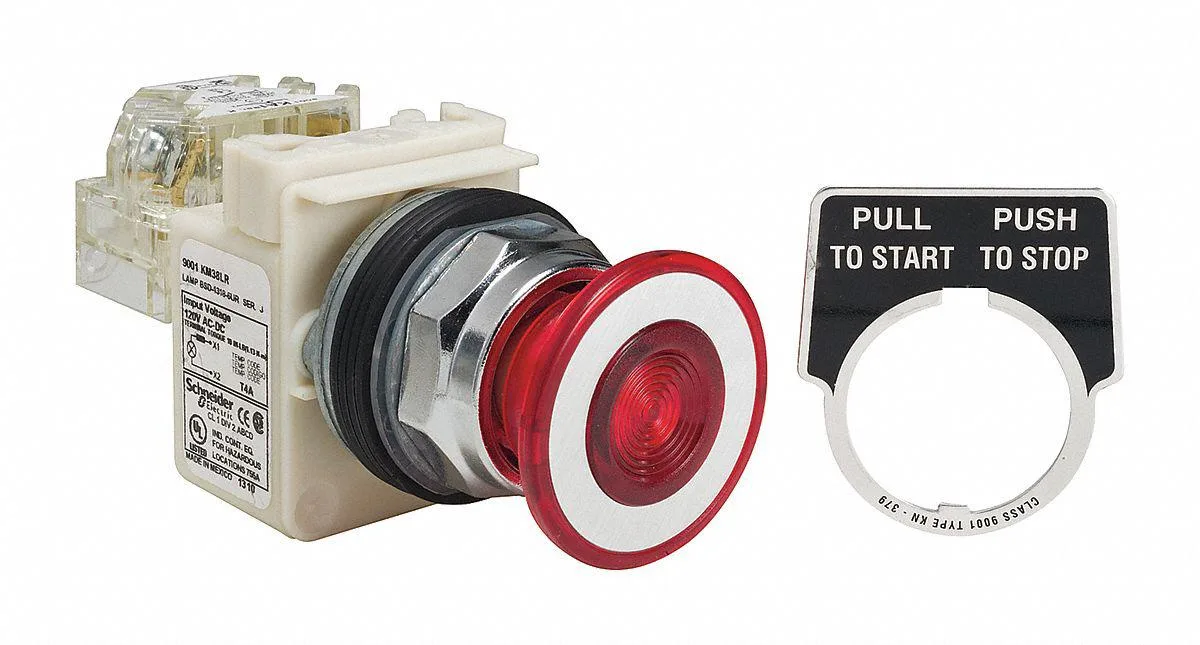

Red mushroom-head push button 30 mm chrome bezel plastic head maintained action

Schneider Electric

Schneider Electric 9001KR9P38LRRH13 Illuminated Push Button 30 mm Red 1NO/1NC

SKU CH-1GPK-54ZGW

A 30 mm red illuminated push button with maintained action, 1NO/1NC contacts rated 10A at 600V AC, and IP66 protection

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30 mm
  • Illuminated for clear status indication
  • 30 mm mushroom head enables easy operation
  • Maintained action stays in selected position
  • IP66 rated for dust and water protection
  • 10 A at 600 V AC contact rating

Product Identity

The Schneider Electric 9001KR9P38LRRH13 is a red illuminated mushroom-head push button designed for industrial control panels. It suits operators who need a maintained-action emergency-stop or start-stop function with clear visual status.

Installation Checks

Verify that the panel cut-out accepts a 30 mm operator and that the 41 mm mushroom head clears adjacent devices. Confirm the control circuit operates within the 10 A at 600 V AC rating and that the NEMA 1, 2, 3, 3R, 4, 6, 12, 13 and IP66 enclosure ratings match the environment.

Build Integration

The chrome-plated metal bezel mounts in a standard 30 mm hole and provides SPDT contacts with A600/Q600 designation for direct wiring. The white-on-black pull-to-start push-to-stop legend removes the need for separate labels. CE, CSA, UL, RoHS and REACH compliance simplifies panel certification.

Highlights

  • Illuminated for clear status indication
  • 30 mm mushroom head enables easy operation
  • Maintained action stays in selected position
  • IP66 rated for dust and water protection
  • 10 A at 600 V AC contact rating

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30 mm

Questions about this item

What comes with the 9001KR9P38LRRH13 illuminated push button and do I need extra contact blocks?

The unit includes the 30 mm red mushroom head operator with chrome-plated metal bezel and a built-in SPDT contact block rated 10 A at 600 V AC, so no separate contact blocks are required for a 1NO/1NC circuit.

The spec lists NEMA 1, 2, 3, 3R, 4, 6, 12, 13 and IP66 — which rating should I use to choose the right enclosure?

Pick the highest rating your environment demands; IP66 and NEMA 4/6 both guarantee protection against powerful water jets and temporary submersion, while NEMA 13 adds oil-tightness for machine-tool splash zones.

What does the 10 A, 600 V AC contact rating mean when the button is wired into a motor starter coil?

The A600/Q600 designation confirms the contacts can make and break a 10 A inrush / 1 A sealed current at 600 V AC, which covers standard NEMA size 0–3 starter coils without an interposing relay.
