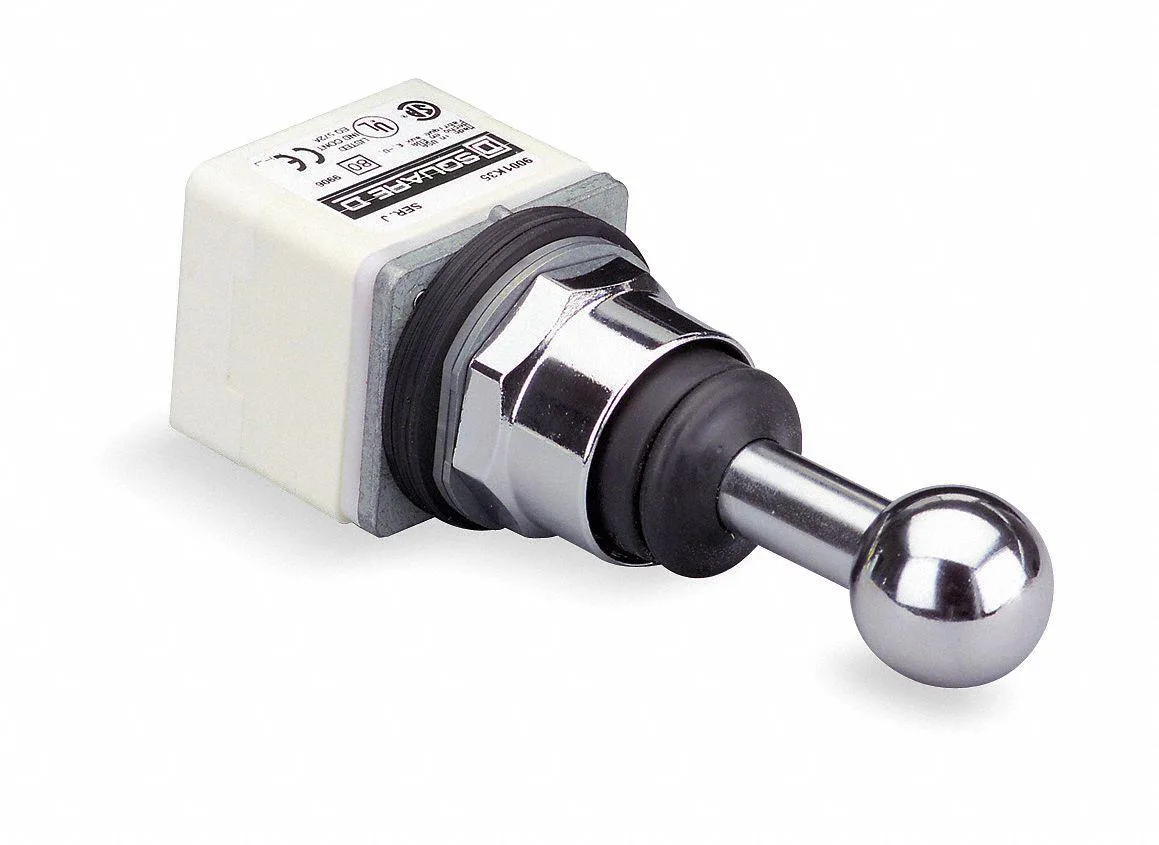

Schneider Electric 9001K31 30 mm metal joystick with chromium bezel, two-direction momentary action

Schneider Electric

Schneider Electric 9001K31 30 mm 2-direction momentary joystick operator

SKU CH-8RXT-XF3X6

A 30 mm two-direction momentary joystick operator rated 10 A at 600 V AC with IP66 and NEMA 1, 2, 3, 3R, 4, 12, 13 protection

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30 mm
  • 30 mm size fits standard panel cut-outs
  • Two-direction momentary action for precise control
  • 10 A at 600 V AC contact rating handles demanding loads
  • IP66 and NEMA 1, 2, 3, 3R, 4, 12, 13 ratings protect against harsh environments
  • Metal joystick with chromium-plated bezel resists wear in industrial use

Industrial joystick operator for 30 mm panels

The Schneider Electric 9001K31 is a 30 mm metal joystick operator designed for two-direction momentary control in industrial environments. Its chromium-plated metal bezel and metal construction suit panels requiring NEMA 1, 2, 3, 3R, 4, 12 and 13 ratings as well as IP66 protection. The non-latching horizontal action returns automatically when released. Contact rating is 10A at 600V AC with NEMA designation R300.

Sealed construction limits contamination

The IP66 and NEMA 4, 13 ratings mean the operator resists water jets, oil and dust ingress during normal operation. Metal components conduct heat away from the contact block without active cooling. Momentary action reduces sustained current flow through the contacts, keeping power draw low during brief actuations. No moving parts generate audible noise beyond the mechanical click of the return spring.

Momentary action and R300 rating suit jog

The two-direction momentary function is intended for jog, inching or safety-interlock circuits where the command must disappear when the operator releases the handle. R300 contact designation supports heavy-duty AC pilot duty at the rated voltage and current. CSA and UL listings confirm compliance for North American control panels. No additional accessories or software are bundled with the operator itself.

Highlights

  • 30 mm size fits standard panel cut-outs
  • Two-direction momentary action for precise control
  • 10 A at 600 V AC contact rating handles demanding loads
  • IP66 and NEMA 1, 2, 3, 3R, 4, 12, 13 ratings protect against harsh environments
  • Metal joystick with chromium-plated bezel resists wear in industrial use

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30 mm

Questions about this item

How do I mount the 30 mm joystick operator in a panel, and what step is often missed?

Drill a 30 mm hole, insert the operator, and secure it with the locking nut; the step often missed is tightening the nut to the specified torque so the IP66 seal remains effective.

Which parts of the joystick operator will need inspection or replacement over time?

The momentary contacts rated at 10A @ 600V AC and the chromium-plated metal bezel should be checked for wear or corrosion; replace the operator if contact resistance rises or the bezel shows pitting.

What is the first limit reached during continuous operation of the joystick?

The thermal limit of the 10A @ 600V AC contacts is reached first under sustained use, so duty cycle must stay within the R300 rating to avoid overheating.
