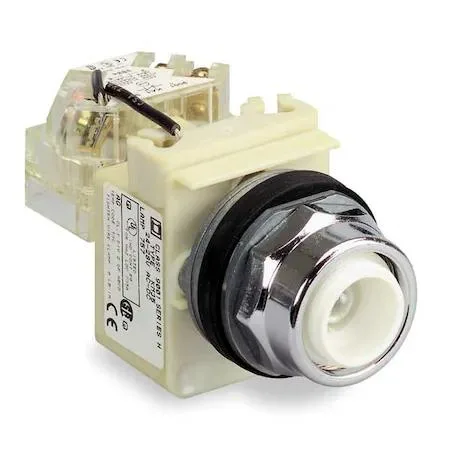

Schneider Electric 30 mm green illuminated push button with metal bezel and plastic head

Schneider Electric

Schneider Electric 9001K1L1G Illuminated Push Button 30 mm Green

SKU CH-BM4X-JRQRG

30 mm illuminated push button with green full-guarded head, 120 V AC transformer module and NEMA 12, 3R, 4 / IP66 ratings

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30 mm
  • Green illuminated button for clear status indication
  • 30 mm operator fits standard panel cut-outs
  • 120 V AC transformer module powers the 6 V incandescent lamp
  • NEMA 12, 3R, 4 and IP66 ratings protect against dust and water ingress
  • CE, CSA and UL certifications confirm compliance with safety standards

Schneider Electric 30 mm Illuminated Push Button

The Schneider Electric 9001K1L1G is a 30 mm green illuminated push button operator designed for industrial control panels. It features a momentary full-guarded plastic head with a metal bezel and a metal basic construction. The unit includes a transformer-type lamp module rated for 120V AC supply with a 6V AC incandescent lamp. It carries NEMA 12, 3R, 4 and IP66 ratings plus CE, CSA and UL certifications.

Replaces worn or non-illuminated 30 mm operators

This operator replaces a damaged or non-illuminated 30 mm push button in existing panels where momentary action and green indication are required. The jump is worth it when the original unit lacks a transformer module for 120V AC supply or when the legend plate is missing and a guarded head is needed for safety. The incandescent lamp is user-replaceable with part 4VCW2.

Verify panel cut-out and control voltage before

Confirm the panel cut-out suits a 30 mm operator and that the control circuit provides 120V AC for the transformer module. Check that the NEMA 12, 3R, 4 and IP66 ratings satisfy the enclosure environment. Ensure the pressure-plate terminal connection matches the wiring practice used in the panel. The green lens colour is fixed and cannot be changed without replacing the head.

Highlights

  • Green illuminated button for clear status indication
  • 30 mm operator fits standard panel cut-outs
  • 120 V AC transformer module powers the 6 V incandescent lamp
  • NEMA 12, 3R, 4 and IP66 ratings protect against dust and water ingress
  • CE, CSA and UL certifications confirm compliance with safety standards

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30 mm

Questions about this item

What panel cut-out diameter does the 30 mm operator need?

The operator is a 30 mm unit, so it requires a standard 30 mm panel cut-out for mounting.

How is the 120V AC transformer module wired, and what mistake should be avoided?

Connect the supply wires to the pressure-plate terminals on the transformer module; do not apply voltage directly to the 6V incandescent lamp.

Which replacement lamp is specified for the green illuminated button?

The specified replacement lamp is the 4VCW2 incandescent type rated at 6V AC.
