Schneider Electric 30 mm illuminated push button operator metal flush head no cap

Schneider Electric

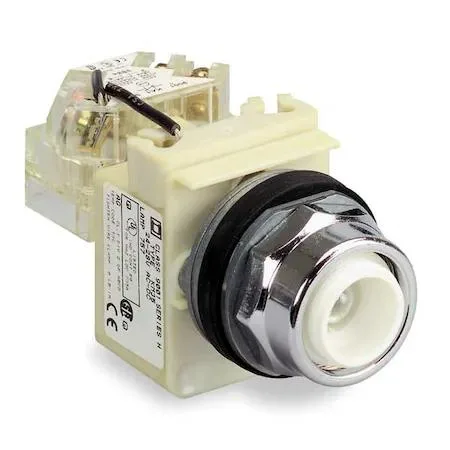

Schneider Electric 9001K1L1 30 mm Illuminated Push Button Operator, No Cap

SKU CH-7MHY-1N02F

30 mm illuminated push-button operator with metal construction, IP66 and NEMA 4/12 ratings, incandescent lamp included, no cap supplied

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30 mm
  • 30 mm flush operator fits standard panels
  • IP66 and NEMA 4 rating seal out dust and water jets
  • Metal head and bezel withstand harsh industrial environments
  • CE, CSA, UL and RoHS certifications confirm compliance
  • Incandescent lamp included for immediate visual status

30 mm Illuminated Push Button Operator

This Schneider Electric 9001K1L1 unit is a flush-mounted momentary operator built for industrial control panels. Its full-guarded metal head and bezel meet NEMA 12, 3R and 4 ratings as well as IP66 ingress protection. The device is designed for operators who need reliable actuation in harsh environments. It ships new without a cap so users can select the colour or marking that matches their panel layout.

Incandescent Lamp Included

The operator comes with an incandescent lamp already fitted, providing immediate visual indication at a distance. No separate light module or wiring harness is required for basic illumination. This simplifies the bill of materials for panel builders and reduces the number of loose components during assembly. The lamp is powered directly through the operator terminals.

Standard 30 mm Panel Cut-out

Installation uses the common 30 mm mounting hole found on most industrial enclosures, so no special tooling is needed. The metal construction resists vibration and impact, but installers must ensure the panel thickness suits the locking nut supplied. Over-tightening can damage the bezel threads, and the absence of a cap means the lamp is exposed until a suitable cap is fitted. Compliance markings include CE, CSA LR25490 Class 3211 03, REACH, RoHS and UL E42259 CCN NKCR.

Highlights

  • 30 mm flush operator fits standard panels
  • IP66 and NEMA 4 rating seal out dust and water jets
  • Metal head and bezel withstand harsh industrial environments
  • CE, CSA, UL and RoHS certifications confirm compliance
  • Incandescent lamp included for immediate visual status

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30 mm

Questions about this item

Does the incandescent lamp inside the 9001K1L1 need periodic replacement?

Yes, the included incandescent lamp will burn out over time and should be replaced when it no longer illuminates the button.

What environmental limit stops the operator first during continuous operation?

The IP66 and NEMA 12, 3R, 4 ratings define the dust and water ingress limits; exceeding those conditions will cause failure before any thermal limit.

How much heat does the 30 mm illuminated push button generate when lit all day?

The incandescent lamp produces modest heat during continuous use, but the metal head and bezel dissipate it without exceeding the device's rated operating range.
