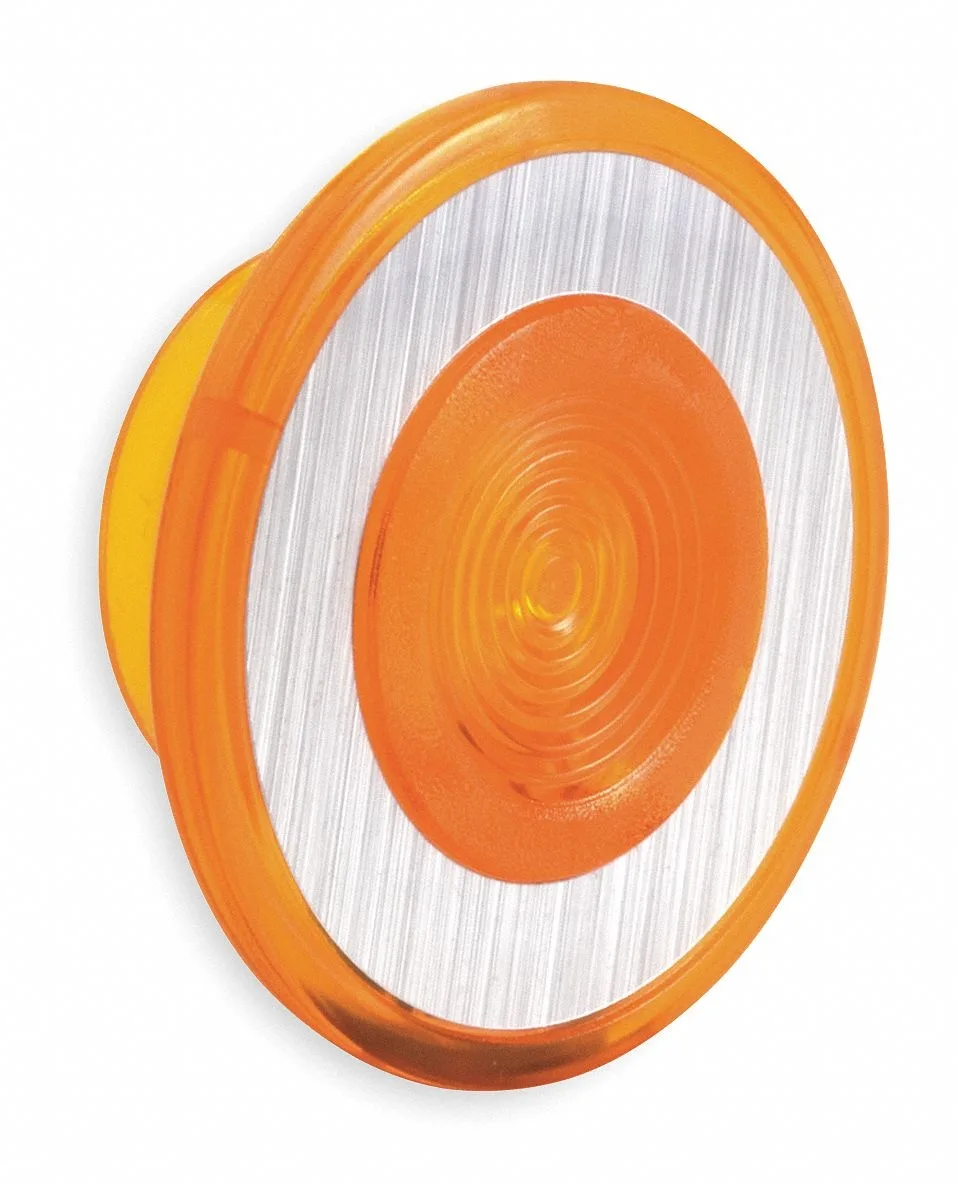

Amber illuminated mushroom push button cap 30mm

Schneider Electric

Schneider Electric 9001A22 Amber Illuminated Push Button Cap 30mm

SKU CH-316E-Z3SDW

Amber illuminated push-button cap, 30 mm diameter, fits Schneider KR8, KR9, SKR8 and SKR9 series, NEMA 1, 12, 3R, 4, 4X and IP66 rated

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30mm
  • Amber illumination for clear status indication in industrial panels
  • 30 mm operator diameter fits standard Schneider push-button cut-outs
  • IP66 and NEMA 4X ratings protect against dust and water ingress
  • Non-metallic mushroom head resists corrosion in harsh environments
  • Certified to CE, CSA and UL standards for regulatory compliance

Amber Push Button Cap for Industrial Controls

This 30 mm illuminated mushroom head cap fits Schneider Electric KR8, KR9, SKR8 and SKR9 series push buttons. It provides a clear amber indication for operator panels and machine control stations. The component is sold new and ready for integration into compliant assemblies.

Non-Metallic Head with NEMA and IP66 Ratings

The plastic mushroom head measures 1.61 inches in diameter and carries NEMA 1, 12, 3R, 4 and 4X ratings alongside IP66 protection. These ratings mean the cap resists dust, water jets and corrosion in indoor or outdoor industrial environments. CE, CSA and UL markings confirm conformity to recognised safety standards.

Verify Series Compatibility Before Ordering

This cap is designed exclusively for the listed Schneider push button series; other ranges will not accept the 30 mm mounting. Confirm that your existing operators are KR8, KR9, SKR8 or SKR9 models before purchase. No other dimensions or electrical specifications are supplied for this accessory.

Highlights

  • Amber illumination for clear status indication in industrial panels
  • 30 mm operator diameter fits standard Schneider push-button cut-outs
  • IP66 and NEMA 4X ratings protect against dust and water ingress
  • Non-metallic mushroom head resists corrosion in harsh environments
  • Certified to CE, CSA and UL standards for regulatory compliance

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30mm

Questions about this item

What NEMA and IP ratings does the 9001A22 amber cap carry, and what environments do they cover?

The cap is rated NEMA 1, 12, 3R, 4, 4X and IP66, meaning it is suitable for indoor use, protection against dust, falling dirt, and hose-directed water, plus corrosion resistance in wash-down areas.

What operator diameter and mounting size does this 30 mm mushroom head require?

The mushroom head measures 1.61 inches in diameter and fits a standard 30 mm panel cut-out used by Schneider KR8, KR9, SKR8 and SKR9 series push buttons.

How do I install the illuminated cap on a compatible Schneider push button, and what step is commonly missed?

Align the cap with the operator base, press firmly until it clicks into the retaining groove, then verify the amber lens seats evenly; the step often missed is confirming the lens is fully locked before applying power.
