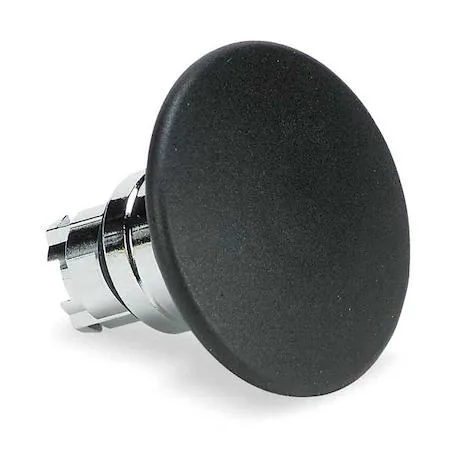

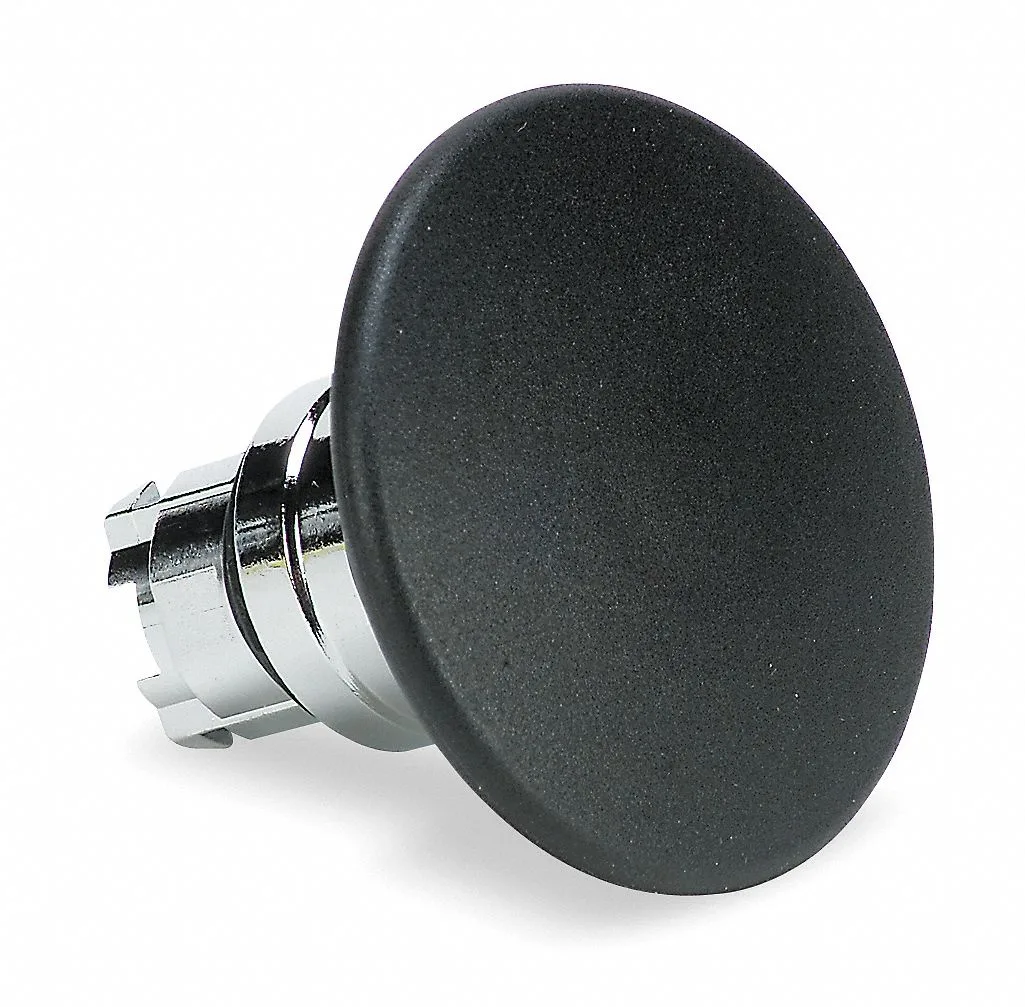

Schneider Electric 22 mm black metal mushroom pushbutton

Schneider Electric

Schneider Electric 22 mm Mushroom Momentary Pushbutton Black

SKU CH-F71K-1ZZDY

A 22 mm black mushroom-head momentary pushbutton with metal construction, IP66 and NEMA 1, 2, 3, 4, 4X, 13 ratings for industrial control panels

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Reliable operation in harsh environments backed by IP66 and NEMA 1 2 3 4 4X 13 ratings
  • Durable all-metal construction with metal head bezel and base material for long service life
  • Large 60 mm mushroom head gives clear tactile actuation for emergency or heavy-duty use
  • Complies with multiple international standards including IEC 60947 series UL 508 and CSA C22.2 No 14
  • Momentary action suits control circuits requiring temporary contact without latching

22 mm Industrial Mushroom Pushbutton

The Schneider Electric 22 mm mushroom momentary pushbutton is a metal-bodied industrial control device rated IP66 and NEMA 1, 2, 3, 4, 4X, 13. It carries certifications including UL 508, CSA C22.2 No. 14, IEC 60947 series, DNV, GL and LROS. The 60 mm black mushroom head provides a distinct tactile target for emergency or heavy-duty start functions.

Panel Mounting and Wiring Requirements

The operator installs through a standard 22 mm cut-out and secures with a metal bezel, leaving the contact block and wiring to be selected separately for the application. Its metal construction resists impact per IEC 60068-2-27 and vibration per IEC 60068-2-6, while the IP66 seal protects internal contacts from dust and powerful water jets. No legend plate is included, so labelling must be sourced to match the control scheme.

Replacing Worn or Non-Compliant Operators

This unit replaces damaged or obsolete 22 mm mushroom heads that no longer meet IEC 60947-5-5 or environmental ratings required by the installation. The jump is worthwhile when the existing device lacks the IP66 or NEMA 4X rating, shows metal fatigue, or fails verification to standards such as IEC 60529 and JIS C8201-5-1. It is not suited for applications requiring maintained action, illuminated heads or integrated legend plates.

Highlights

  • Reliable operation in harsh environments backed by IP66 and NEMA 1 2 3 4 4X 13 ratings
  • Durable all-metal construction with metal head bezel and base material for long service life
  • Large 60 mm mushroom head gives clear tactile actuation for emergency or heavy-duty use
  • Complies with multiple international standards including IEC 60947 series UL 508 and CSA C22.2 No 14
  • Momentary action suits control circuits requiring temporary contact without latching

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

What is the NEMA rating of the 22 mm mushroom pushbutton?

The pushbutton carries NEMA ratings 1, 2, 3, 4, 4X and 13 for indoor and outdoor protection.

How much heat does the metal bezel and head generate during continuous operation?

As a passive mechanical switch the unit produces no measurable heat during all-day use.

Which mounting cut-out size must the panel already have for this operator?

The operator requires a standard 22 mm panel cut-out for installation.
