Rosewill
Rosewill RSV-RL26HV2 server accessory 2U-5U 26-39.4in depth 77lb load

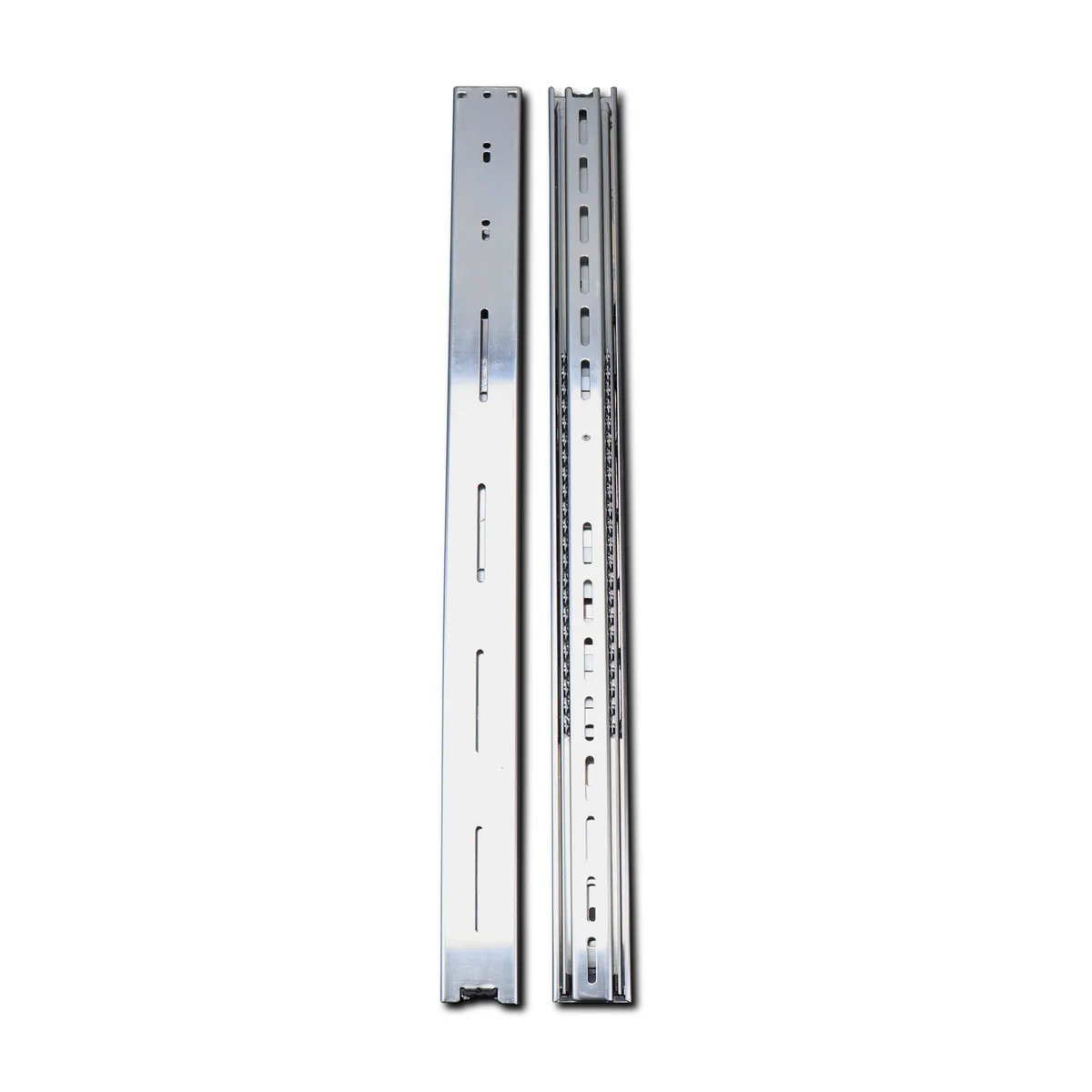

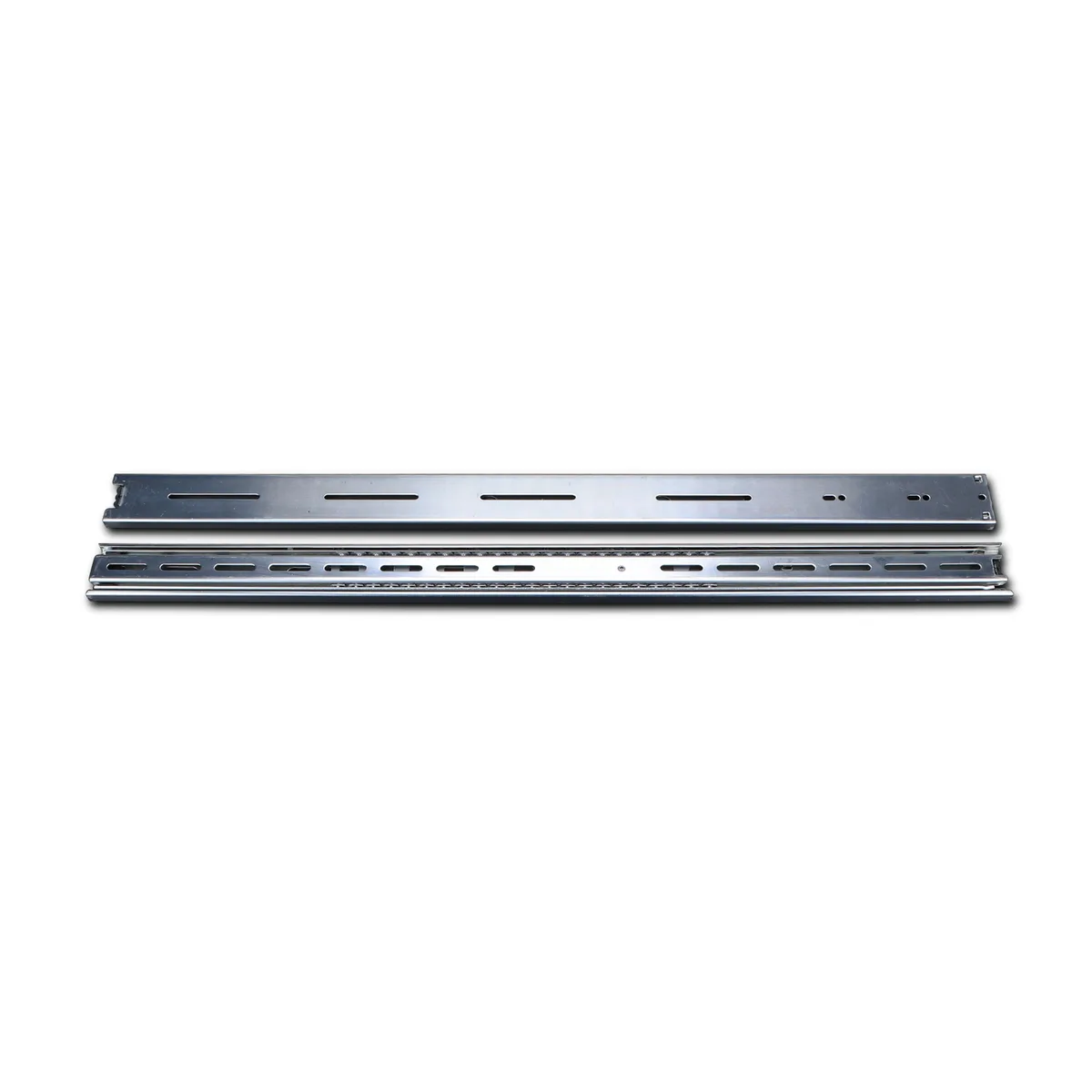

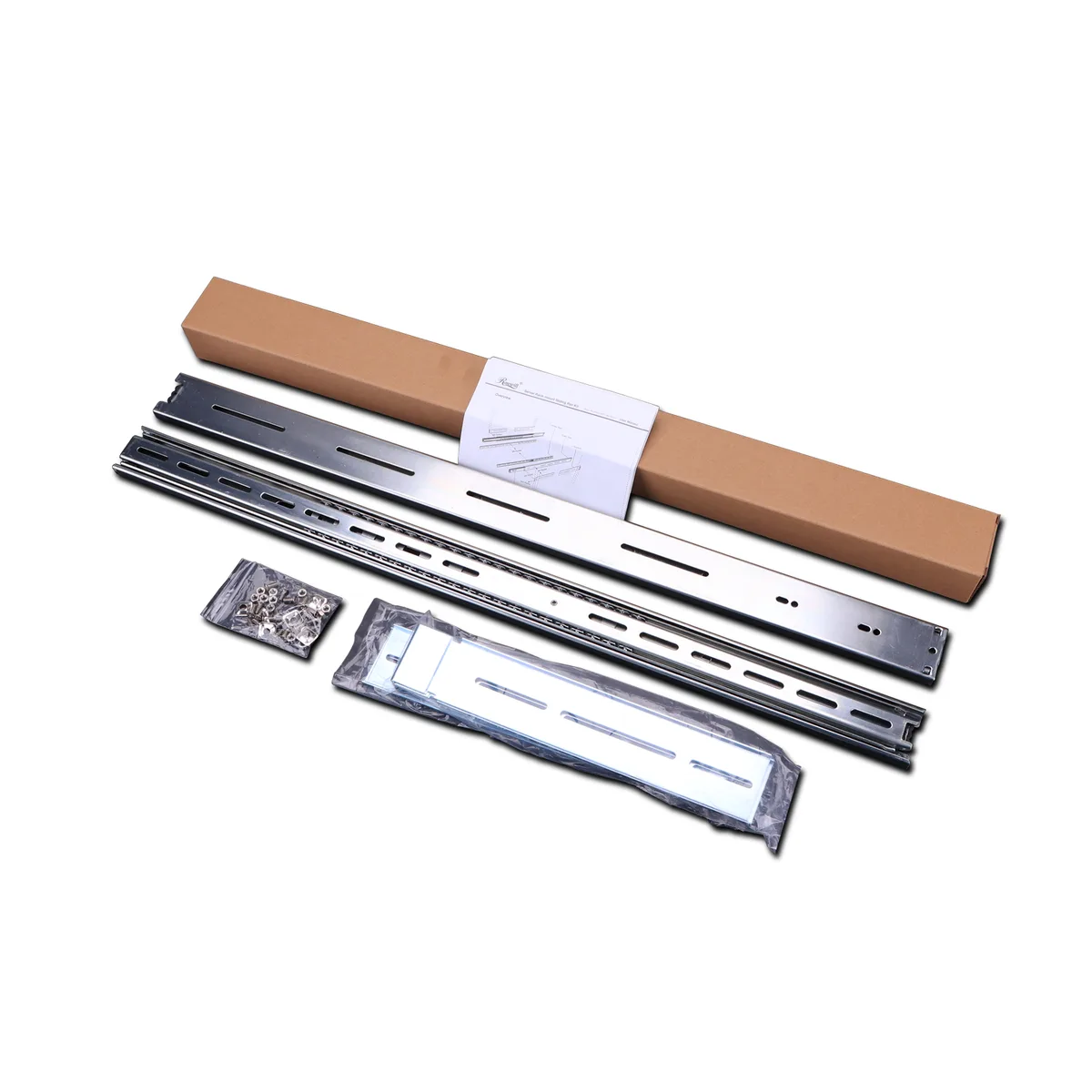

Three-section ball-bearing slide rails mount 2U to 5U chassis at 26 to 39.4 inch depth with a 77 lb load rating
- TypeBall Bearing Slide Rail
- SpecificationsLoad rating up to 77.00 lbs. Profile: 25.63" x 1.80" x 0.50"
- Features2U to 5U height, adjustable 26" to 39.4" Depth 3-members Bal
Size 26" V2
- 20" V2
- 26" V2
- Adjustable 26 to 39.4 inch depth fits varied rack posts
- Ball-bearing slides give smooth silent travel under 77.00 lb load
- 2U to 5U height covers most server chassis except two models
- Thin 25.63 by 1.80 by 0.50 inch profile maximises chassis width up to 426 mm
- Quick-disconnect outer member with extra tapped holes speeds chassis removal
Compatible Chassis Range
The rail kit fits server chassis from 2U to 5U in height and supports an adjustable mounting depth of 26 to 39.4 inches between front and rear rack posts. It is designed for standard-width cases up to 426 mm and excludes Rosewill models RSV-AI01 and RSV-L4620.
Depth Adjustment Limits
Rear post spacing can be set from 20 to 33.5 inches, while the three-member slide extends the overall rail length from 26 to 39.4 inches. The load rating is 77 lbs according to the primary specification, with a zinc-plated profile measuring 25.63 by 1.80 by 0.50 inches.
Installation Notes
Ball-bearing slides give smooth, silent travel and a quick-disconnect design allows the chassis to be removed without tools. Extra tapped holes on the outer member provide flexible mounting options, though the thin 0.50-inch profile may limit clearance for very wide side-panels or cable-routing brackets.
Highlights
- Adjustable 26 to 39.4 inch depth fits varied rack posts
- Ball-bearing slides give smooth silent travel under 77.00 lb load
- 2U to 5U height covers most server chassis except two models
- Thin 25.63 by 1.80 by 0.50 inch profile maximises chassis width up to 426 mm
- Quick-disconnect outer member with extra tapped holes speeds chassis removal
Specifications
| Brand | Rosewill |
|---|---|
| Model | RSV-RL26HV2 |
| Type | Ball Bearing Slide Rail |
| Specifications | Load rating up to 77.00 lbs. Profile: 25.63" x 1.80" x 0.50" Finish: Zinc plated |
| Features | 2U to 5U height, adjustable 26" to 39.4" Depth 3-members Ball Bearing Slide Rail. ROHS compliant finish (Chrome Trio zinc plating) Ball bearings provide precise linear motion with smooth, silent travel. Special design for easy chassis removal, more tapped screw holes on outer member, easy-mount, quick-disconnect design. Extremely thin profile to fit the maximum chassis width 426 mm. |
| Shipping weight | 2.54 kg |
| Package size | 676 × 57 × 46 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Should I pick this kit for a 2U chassis or a 5U chassis?
The rail kit adjusts to fit any server chassis from 2U through 5U height, so it works for either size.
What does the 77.00 lb load rating mean when the rails are fully extended in my rack?
The ball-bearing slides are rated to carry up to 77.00 lbs while the chassis is pulled out for service.
How does the 26 to 39.4 inch depth range match my rack's post spacing?
The outer rails mount to rear posts spaced from 20 to 33.5 inches apart, giving the 26 to 39.4 inch adjustable depth.
