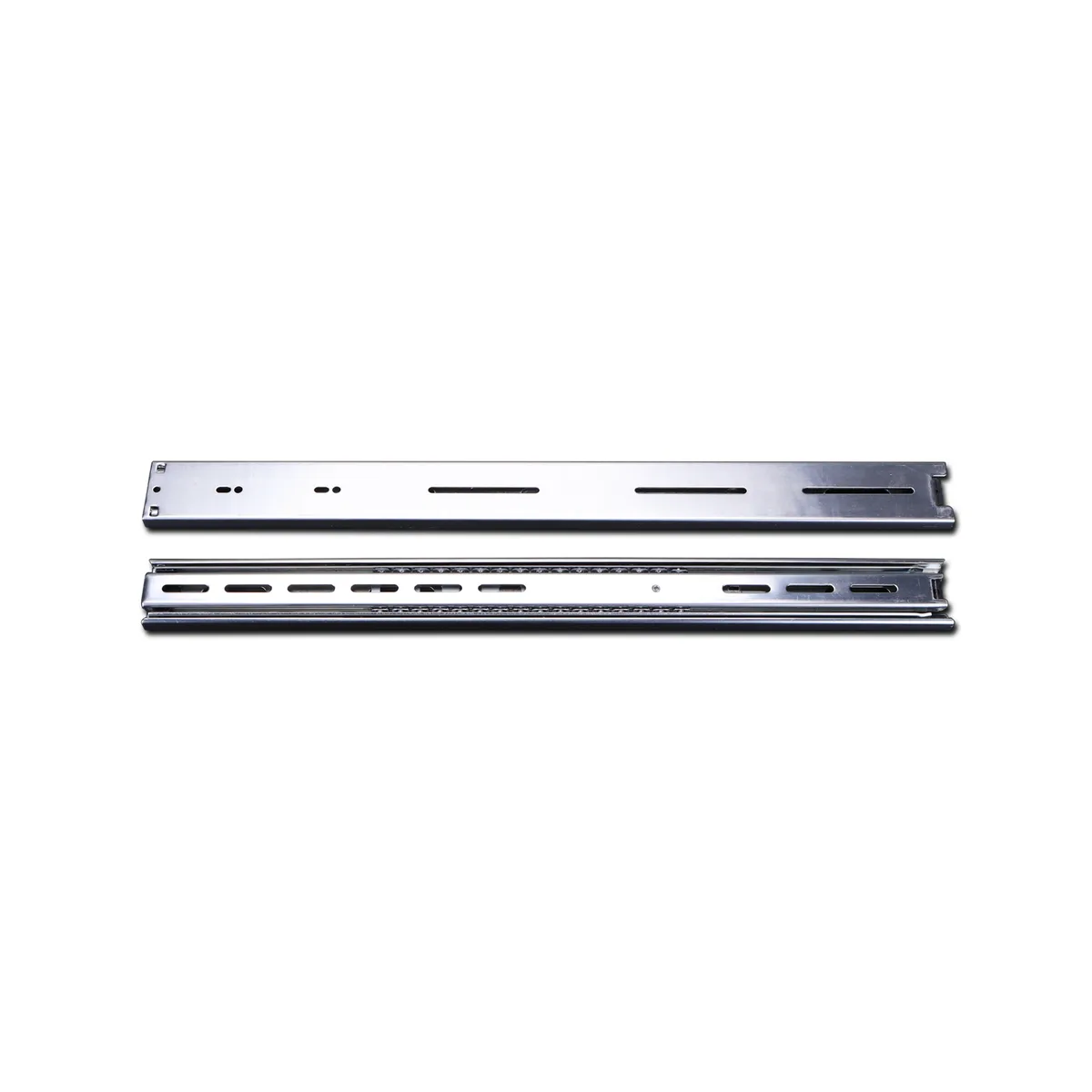

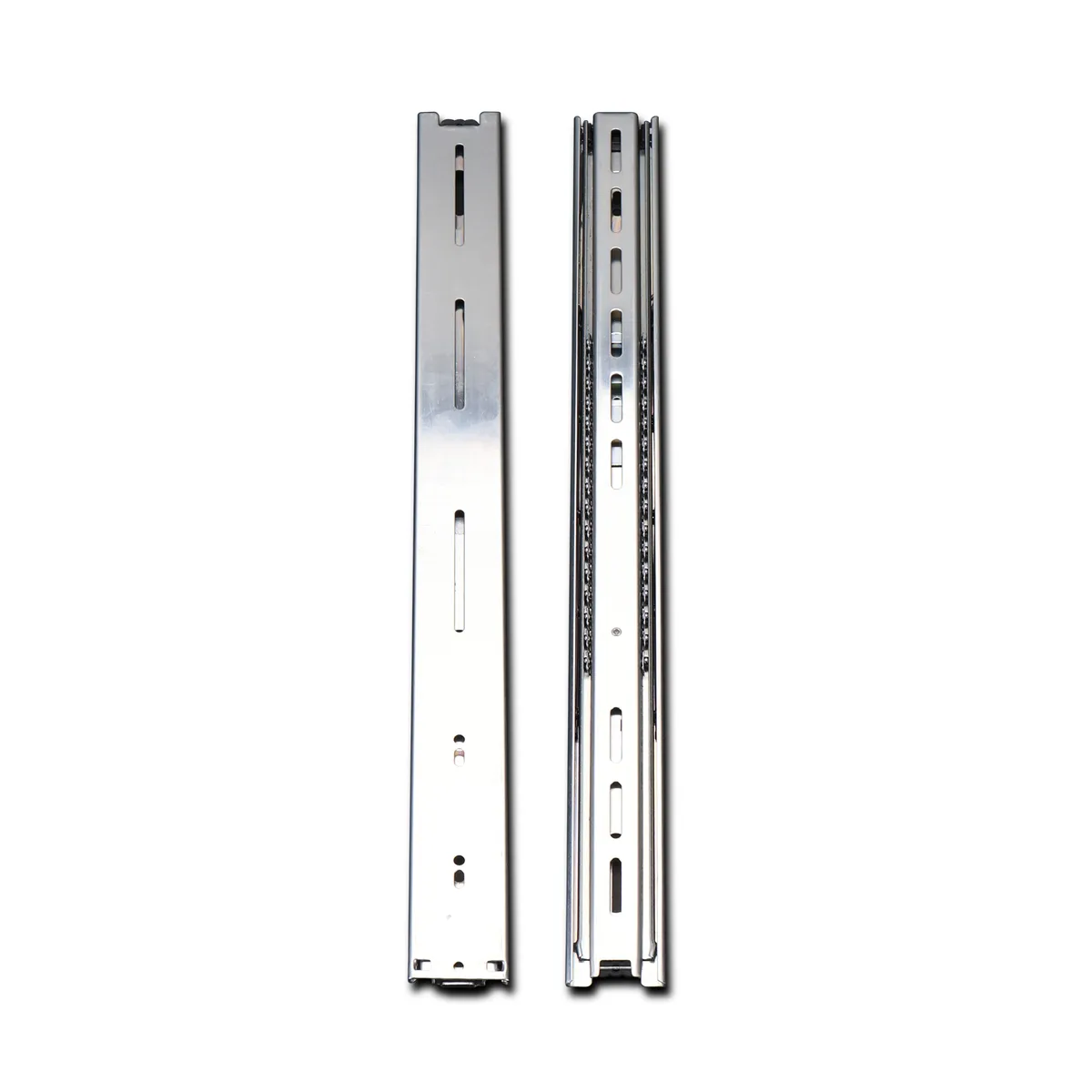

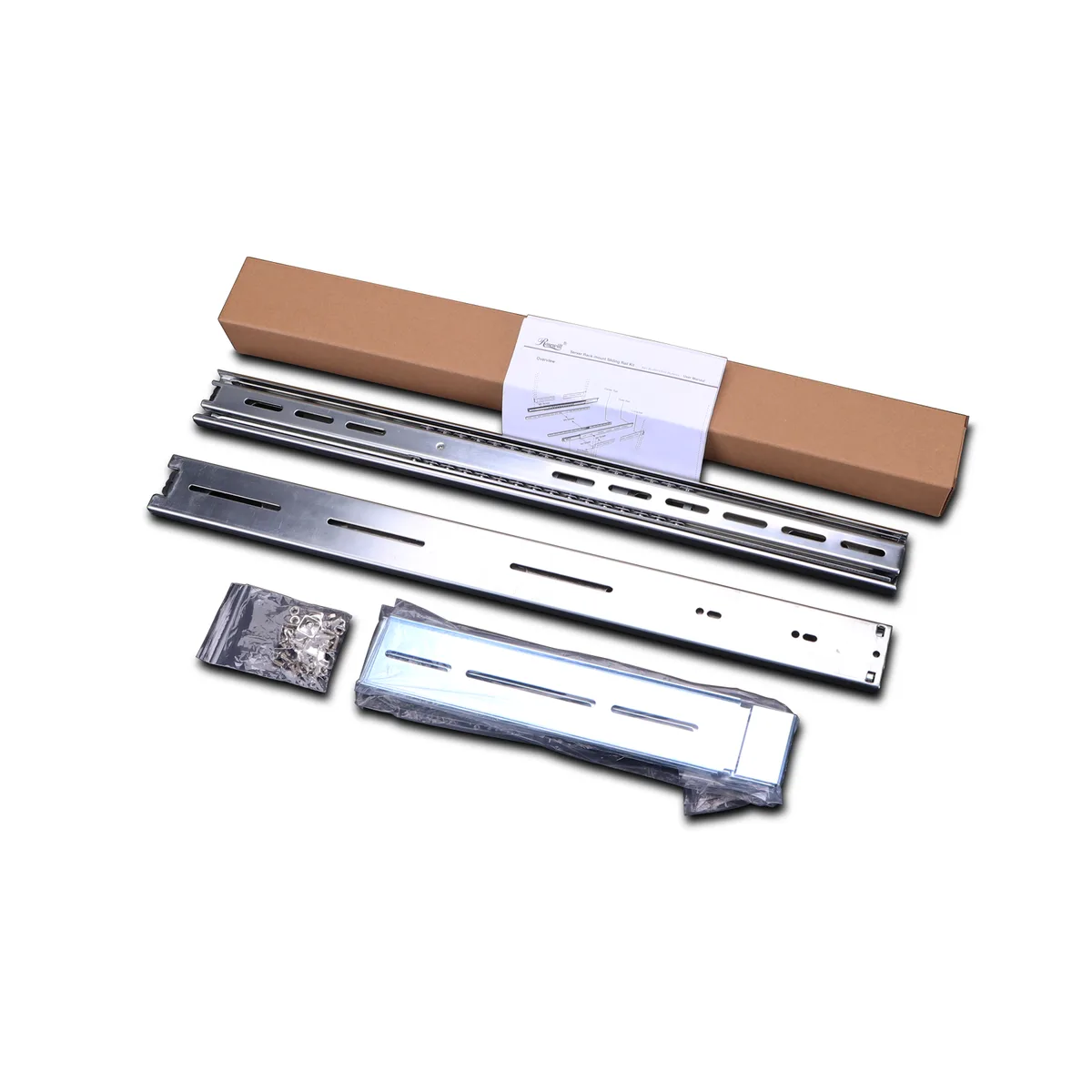

Pair of zinc-plated steel sliding rails, three-section ball-bearing design, thin profile for 2U–5U server chassis

Rosewill

Rosewill RSV-RL20HV2 2U–5U Sliding Rail Kit 20″–33.5″ server accessory

SKU CH-1K0Y-F4ADH MPN RSV-RL20HV2

Adjustable 20″–33.5″ depth sliding rails support 2U–5U chassis up to 100 lbs with ball-bearing travel and quick-disconnect removal

  • TypeBall Bearing Slide Rail
  • SpecificationsLoad rating up to 77.00 lbs. Profile: 25.63" x 1.80" x 0.50"
  • Features2U to 5U height, Adjustable 20" to 33.5" Depth Bearing Slide

Size 20" V2

  • Fits 2U–5U server chassis for versatile rack mounting
  • Adjustable 20″–33.5″ depth suits varied rack configurations
  • Ball-bearing slides deliver smooth, silent chassis extension
  • Load rating up to 77.00 lbs supports heavy equipment
  • Ultra-thin 0.50″ profile maximises usable chassis width

Slide Rail Kit for 2U–5U Chassis

The Rosewill RSV-RL20HV2 is a ball-bearing slide rail kit built for server chassis between 2U and 5U height. It fits standard racks with an adjustable mounting depth from 20" to 33.5". The zinc-plated finish meets ROHS requirements. Installers who need a different height range or a depth outside this window cannot use this kit.

Load Rating and Sustained Operation

The rails carry a load rating up to 77.00 lbs with a manufacturer highlight of 100 lbs. Ball bearings give precise linear motion with smooth, silent travel during repeated extensions. The 25.63" x 1.80" x 0.50" profile fits maximum chassis width of 426 mm. Builders whose equipment exceeds the stated load rating must choose a heavier-duty rail.

Installation and Common Issues

A quick-disconnect design and extra tapped screw holes on the outer member allow easy chassis removal and mounting. The kit works with all Rosewill server cases except models RSV-AI01 and RSV-L4620. Installers using those two excluded cases or non-standard rack posts will find the rails incompatible.

Highlights

  • Fits 2U–5U server chassis for versatile rack mounting
  • Adjustable 20″–33.5″ depth suits varied rack configurations
  • Ball-bearing slides deliver smooth, silent chassis extension
  • Load rating up to 77.00 lbs supports heavy equipment
  • Ultra-thin 0.50″ profile maximises usable chassis width

Specifications

BrandRosewill
ModelRSV-RL20HV2
TypeBall Bearing Slide Rail
SpecificationsLoad rating up to 77.00 lbs.
Profile: 25.63" x 1.80" x 0.50"
Finish: Zinc plated
Features2U to 5U height, Adjustable 20" to 33.5" Depth Bearing Slide Rail.
ROHS compliant finish (Chrome Trio zinc plating)
Ball bearings provide precise linear motion with smooth, silent travel.
Special design for easy chassis removal, more tapped screw holes on outer member, easy-mount, quick-disconnect design.
Extremely thin profile to fit the maximum chassis width 426 mm.
Shipping weight2.04 kg
Package size527 × 57 × 46 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much noise do the ball-bearing slides add when the chassis is pulled out for daily maintenance?

The zinc-plated ball-bearing rails provide smooth, silent travel, so the sliding action adds no audible noise during routine access.

Which rack posts and chassis dimensions must already be in place for this kit to mount correctly?

You need a standard rack with front-to-rear post spacing between 20" and 33.5" and a server chassis 2U–5U high, up to 426 mm wide, with side mounting holes.

Will the 25.63" x 1.80" x 0.50" profile clear the side panels on an older 4U Rosewill case I plan to keep?

The extremely thin 1.80" rail height and quick-disconnect outer member are designed to fit maximum chassis width, allowing removal without panel interference on compatible Rosewill cases.
