Riseem S3001-White HVAC Control 12-Pack White 24V
Twelve non-programmable thermostats for single-stage 24 V systems with separate heating and cooling swing adjustment and a white backlit display
- TypeThermostat,Two Screws and anchors,Operating manual,Cable lab
- Size/Dimensions5.43 in x 3.86 in x 1.06 in
- ColorWhite
- Voltage24 volts_of_alternating_current
- Mount TypeWall Mount
- Relay ContactDigital, 24 volts_of_alternating_current
- 12-pack covers multiple zones from one purchase
- Non-programmable digital control simplifies daily temperature setting

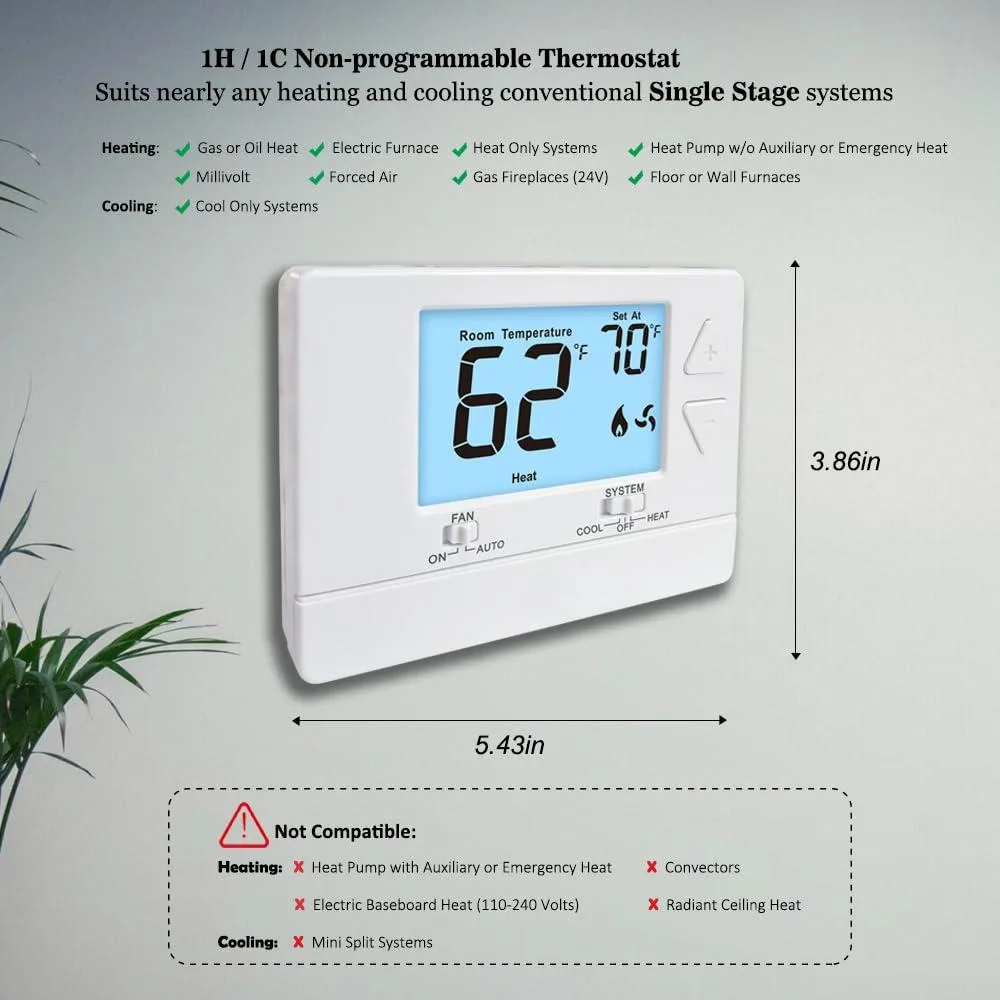

- 24 V AC single-stage compatibility fits gas, oil, electric and boiler systems
- 30-minute DIY install with large terminal blocks and included anchors
- White backlit LCD gives clear reading in low light

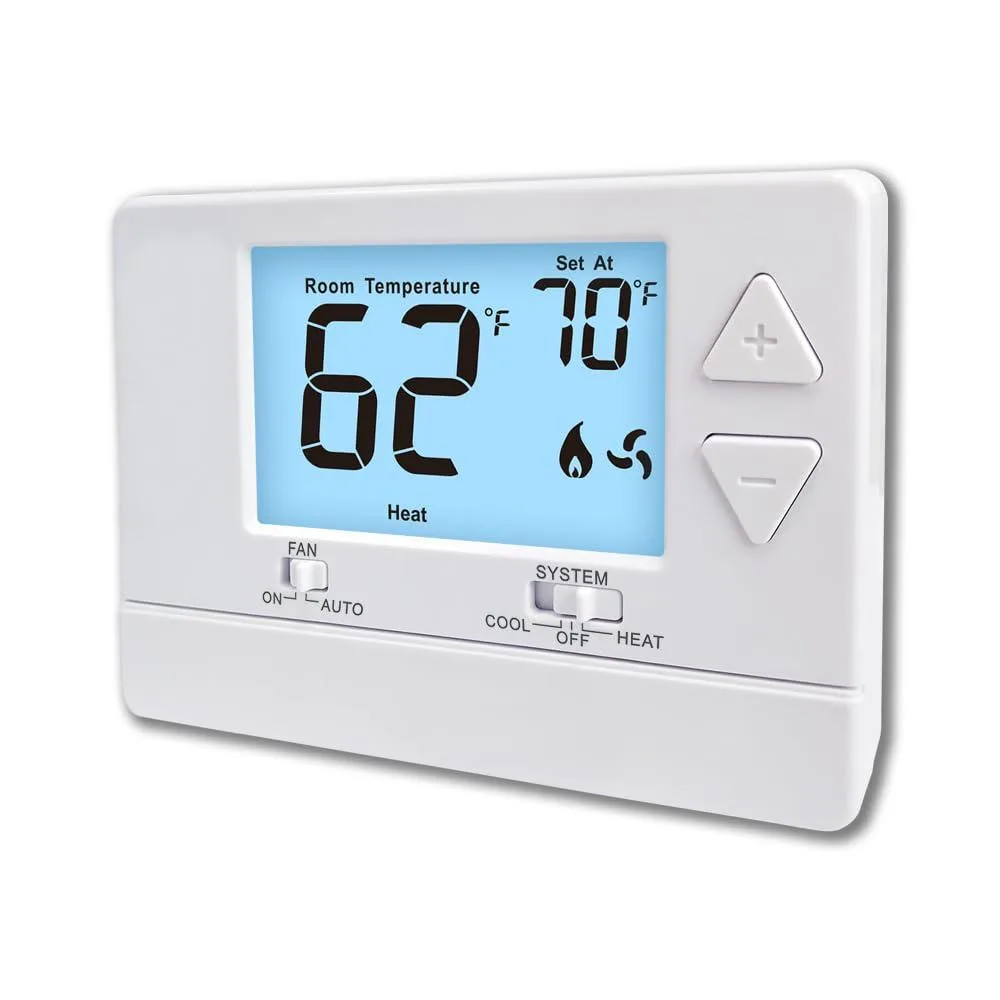

12-Pack Non-Programmable Thermostat
This 12-pack supplies non-programmable digital thermostats for conventional single-stage heating and cooling systems. Each unit handles one heat and one cool stage at 24 V AC. The white backlight LCD and push-button controls suit homeowners and property managers who want simple, manual temperature control across multiple zones.
Thermals Noise and Power Draw
The thermostats operate on 24 V AC with digital relay contacts, drawing minimal power from the system transformer. No fan or active cooling is present, so operation is silent. A low-battery indicator alerts when the backup cells need replacement, preventing unexpected loss of settings during normal use.
Wall-Mount Build and Wiring Limits

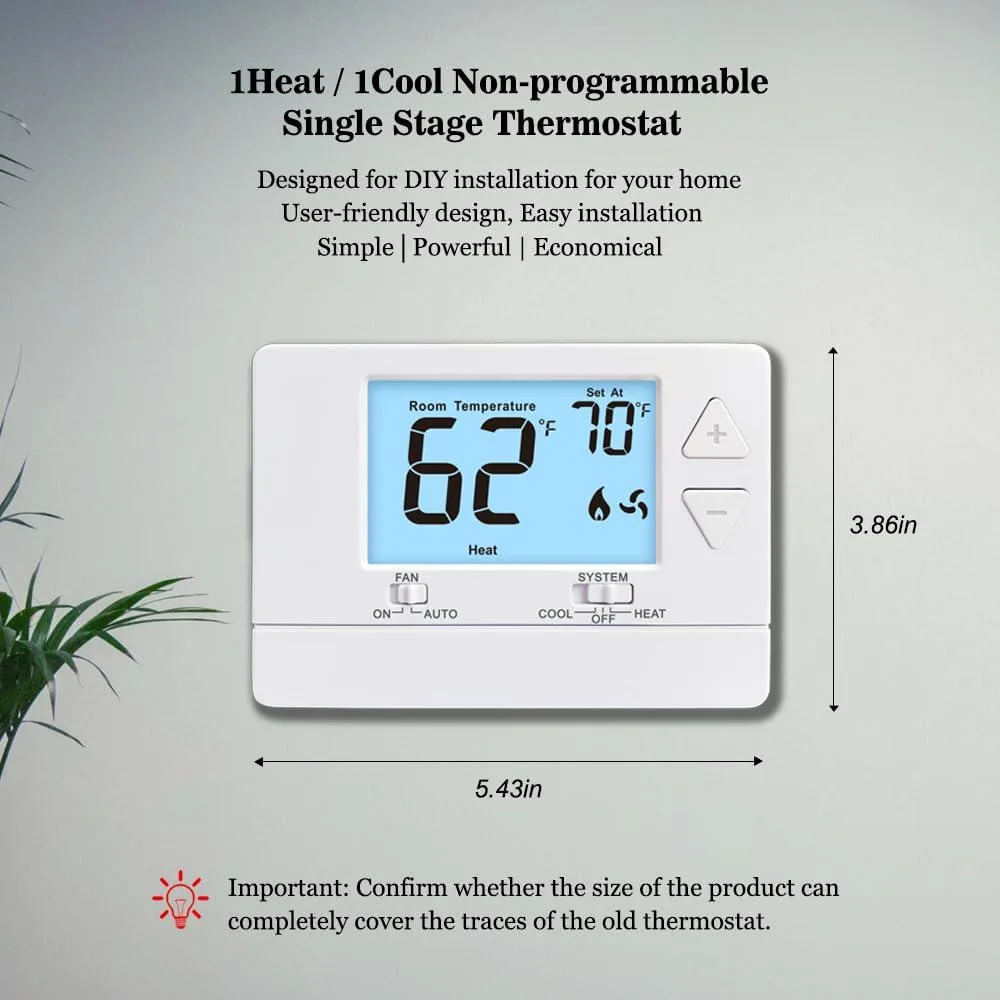

Each thermostat measures 5.43 in x 3.86 in x 1.06 in and mounts on a wall with the included screws and anchors. The universal sub-base accepts a maximum of two to five wires; six to eight wire connections are not supported. Cable labels and an operating manual are provided to assist DIY installation within about 30 minutes per unit.
Highlights
- 12-pack covers multiple zones from one purchase
- Non-programmable digital control simplifies daily temperature setting
- 24 V AC single-stage compatibility fits gas, oil, electric and boiler systems
- 30-minute DIY install with large terminal blocks and included anchors
- White backlit LCD gives clear reading in low light
Specifications
| Type | Thermostat,Two Screws and anchors,Operating manual,Cable label, Conventional Single Stage Systems, Push Button |
|---|---|
| Brand | Riseem |
| Model | S3001-White |
| Size/Dimensions | 5.43 in x 3.86 in x 1.06 in |
| Color | White |
| Voltage | 24 volts_of_alternating_current |
| Mount Type | Wall Mount |
| Relay Contact | Digital, 24 volts_of_alternating_current |
| Item Count | 12 pack |
| Selling Unit | 1, Thermostat,Two Screws and anchors,Operating manual,Cable label |
| Features | Heating and Cooling Controls, Separate Heating and Cooling Swing (Cycle Rate), Low Battery Indicator, Riseem |
Questions about this item
How do I mount the Riseem S3001-White thermostat on the wall and what wiring mistake should I avoid?
Use the two supplied screws and anchors to secure the sub-base; the terminal block accepts only two to five wires, so do not attempt to connect six to eight wires or the unit will not function.
What ongoing maintenance does this 12-pack of thermostats require?
Each unit has a low-battery indicator on the backlit LCD; replace the batteries when the icon appears to keep heating and cooling control active.
What is the first limitation I will hit if the heating or cooling runs continuously?
The relay contacts are rated for 24 V AC single-stage systems only; multistage, heat-pump, hydronic or 120-240 V baseboard loads are not supported and will cause malfunction.
