Twelve black polycarbonate bus bars with nickel-plated brass plates and stainless studs

RECOIL BBPG5 Bus Bar Power Distribution Block 15A 300V 12 Pack

SKU CH-AK59-7SNY4

A 12-pack of 15A 300V bus-bar blocks with ten connections each for clean positive and negative power distribution in boats, cars or caravans

  • Amps15
  • Voltage300 volts
  • Item Count12 pack
  • Selling Unit1
  • 15 A per circuit protects wiring from overload
  • 300 V AC and 48 V DC rating suits marine and vehicle systems
  • 12 blocks in one pack covers multiple installation points
  • Ten connections per block with included ring terminals speeds wiring
  • Reinforced polycarbonate cover with nylon nuts guards against short circuits

12-pack bus bar block for marine and vehicle wiring

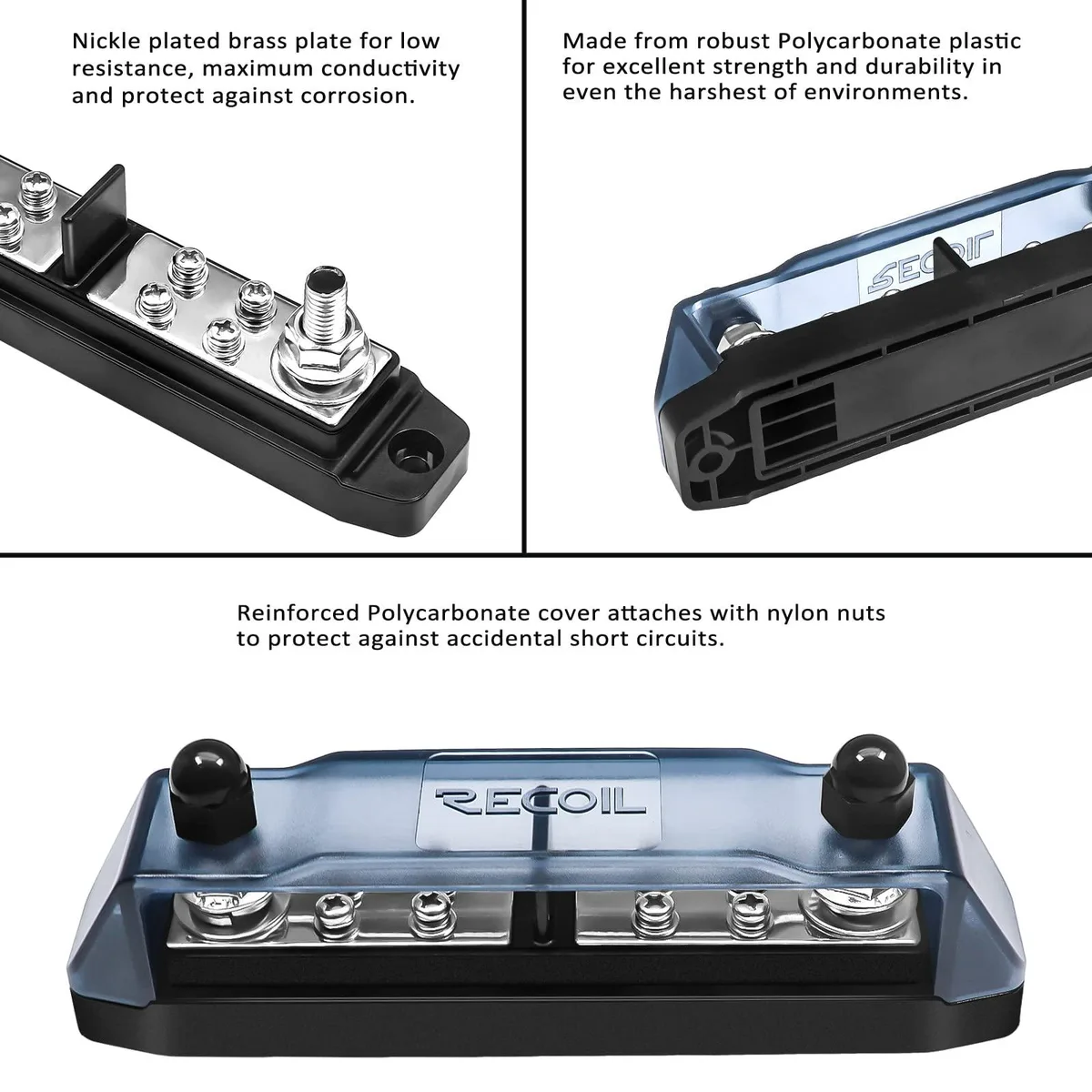

This RECOIL BBPG5 distribution block provides ten connection points with two 5/16 inch stainless steel studs and eight #8 stainless steel screws. A reinforced polycarbonate cover secures with nylon nuts to guard against accidental shorts. The nickel-plated brass plate resists corrosion while maintaining low resistance. Each pack contains twelve blocks for multiple installations.

Suits installers needing many compact positive

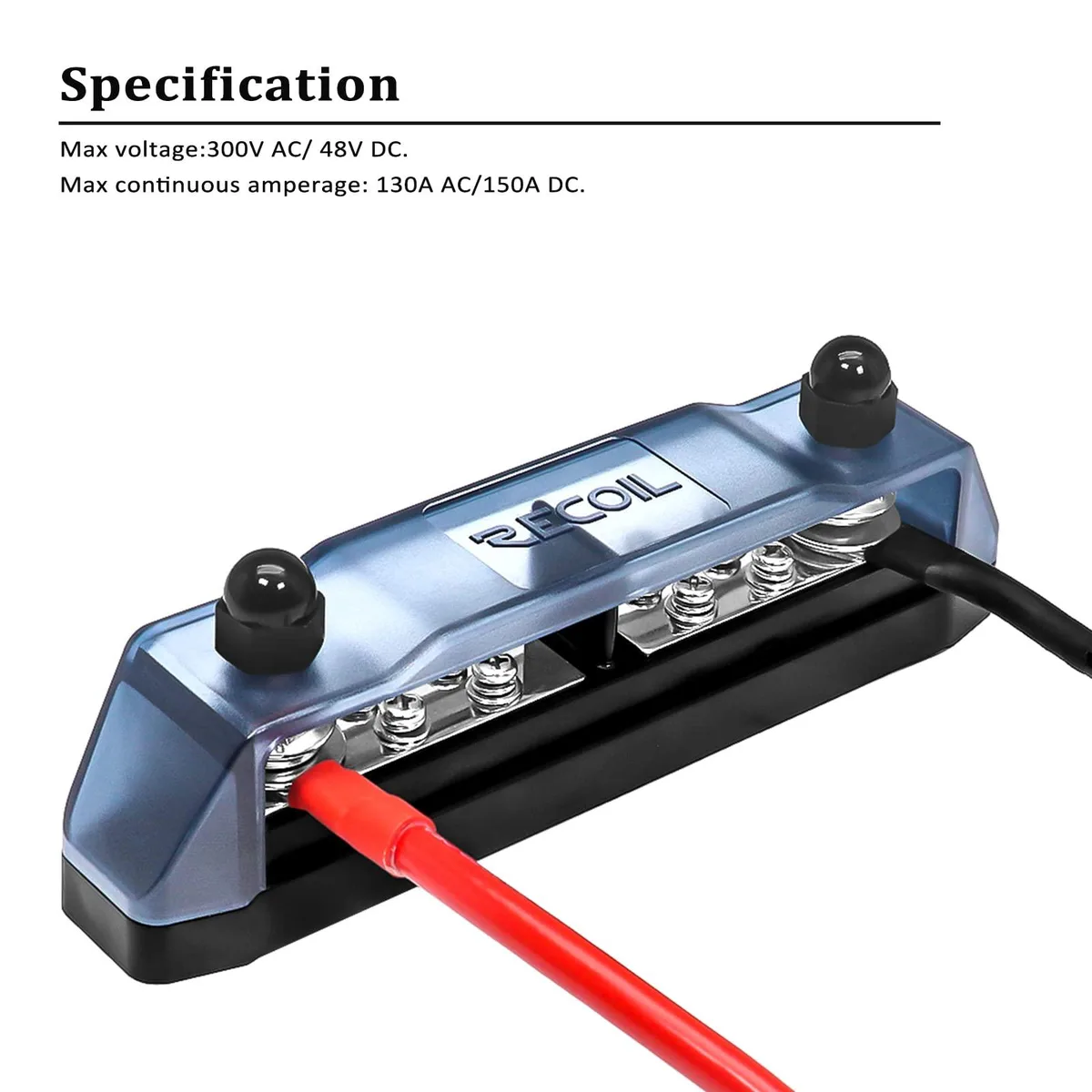

Builders who require higher continuous current than 130 amps AC or 150 amps DC should consider larger bus bars. Projects limited to 48 volts DC or 300 volts AC maximum are supported; systems exceeding those voltages need different hardware. The included 8 AWG and 10 AWG ring terminals cover common cable sizes, but very large conductors would need separate terminals.

15 amp fuse rating per block

Each block in the 12 pack carries a 15 amp fuse rating at 300 volts, making the fuse specification the key figure for circuit protection planning. The block itself handles up to 130 amps AC or 150 amps DC continuous current through the bus bar, but the fitted fuse limits the protected circuit to 15 amps. Verify that the 15 amp rating matches the branch circuit you are protecting.

Highlights

  • 15 A per circuit protects wiring from overload
  • 300 V AC and 48 V DC rating suits marine and vehicle systems
  • 12 blocks in one pack covers multiple installation points
  • Ten connections per block with included ring terminals speeds wiring
  • Reinforced polycarbonate cover with nylon nuts guards against short circuits

Specifications

Amps15
Voltage300 volts
BrandRECOIL
Item Count12 pack
Selling Unit1
Part NumberHU-XI-150

Questions about this item

How can I verify the RECOIL BBPG5 bus bar is working correctly after installation?

Check that all ten connections — two 5/16" studs and eight #8 screws — are tight, the polycarbonate cover is secured with its nylon nuts, and measure continuity across the nickel-plated brass plate; the block is rated for 300 V AC, 48 V DC, 130 A AC and 150 A DC continuous.

What comes in the 12-pack box and what must I buy separately?

Each of the twelve blocks includes two 5/16" stainless-steel studs, eight #8 stainless-steel screws, two 8 AWG 5/16" ring terminals, two 10 AWG 5/16" ring terminals and eight #8 insulated ring terminals; cables and additional lugs are not supplied.

Which RECOIL bus-bar version should I choose for a 150 A DC system?

Select the 5/16" stud model — it is rated for 150 A DC continuous, whereas the 1/4" version handles 100 A DC and the 3/8" version handles 250 A DC.
