Coiled self-regulating heating cable kit 100 ft 240VAC on spool

Raychem

Raychem 103857-000 Self-Regulating Heating Cable Kit 100 ft 240VAC

SKU CH-RBB6-3152G

Self-regulating heating cable kit delivers 100 ft of 240 VAC freeze protection at 6 W per foot with included power connection, splice and tee kits

  • TypeTarps
  • Self-regulating output adjusts to temperature using conductive carbon core
  • 100 ft cable length covers extended pipe or roof runs
  • 240 VAC 50 Hz supply suits standard hardwired installations
  • Includes power connection, splice, tee kit and application tape for complete setup
  • Maximum circuit length 350 ft allows long continuous heating circuits

Product Identity

The Raychem 103857-000 is a self-regulating heating cable kit supplied in a 100 ft length for 240V AC operation. It is intended for indoor pipe freeze protection or temperature maintenance in residential and light commercial settings.

Pre-Installation Checks

Verify that the supply voltage matches the 240V AC 50 Hz rating and that the circuit can accommodate the 0.03 A per foot draw. Confirm the maximum circuit length of 350 ft is not exceeded and that the installation environment remains within the 150 Degrees F maximum operating temperature.

Build and Connections

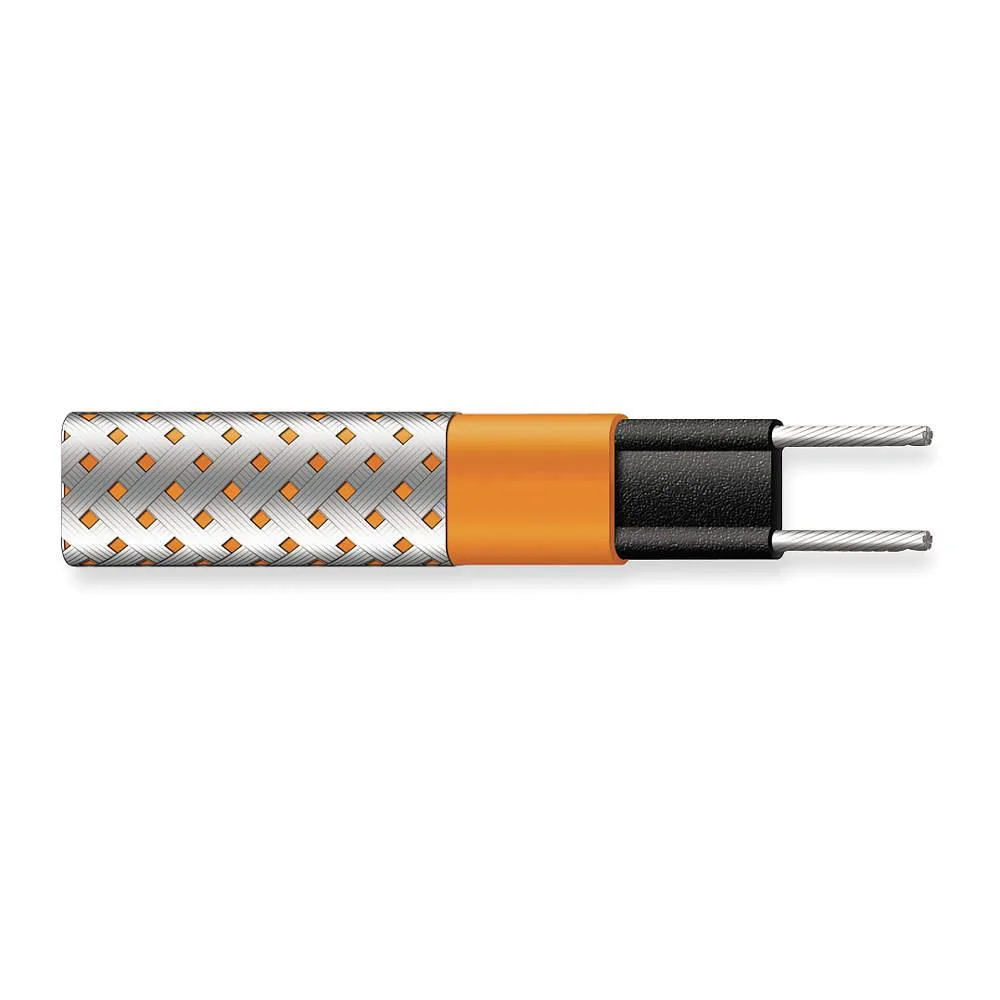

The cable uses a conductive carbon core with a tinned-coated copper braid cover for durability. The kit includes a power connection kit, a roll of application tape, and a splice and tee kit to support hardwired installation without a plug.

Highlights

  • Self-regulating output adjusts to temperature using conductive carbon core
  • 100 ft cable length covers extended pipe or roof runs
  • 240 VAC 50 Hz supply suits standard hardwired installations
  • Includes power connection, splice, tee kit and application tape for complete setup
  • Maximum circuit length 350 ft allows long continuous heating circuits

Specifications

BrandRAYCHEM
TypeTarps

Questions about this item

Does the kit include everything needed to install the 100 ft cable, or are extra parts required?

The kit includes the 100 ft self-regulating heating cable, a power connection kit, a roll of application tape, and a splice and tee kit for a complete installation.

How do I decide between the available cable lengths for this self-regulating model?

This kit supplies a fixed 100 ft length rated at 6 W per foot at 40°F; the maximum circuit length for the 240 V system is 350 ft if you need a longer run.

What does the 6 W per foot rating mean for heat output once the cable is powered at 240 V?

At 40°F the cable draws 6 W per foot and 0.03 A per foot on 240 V AC, and it self-regulates down as the temperature rises toward the 150°F maximum operating limit.
