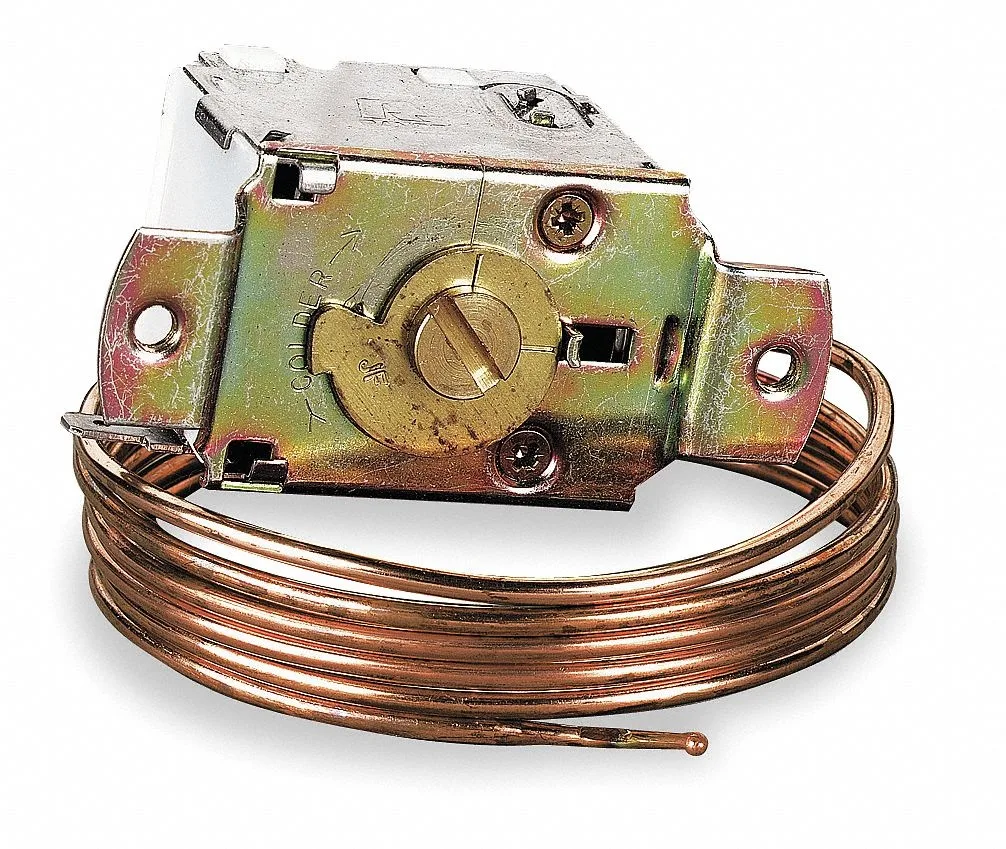

Ranco K-3001 water cooler control box with capillary tube

Ranco

Ranco K-3001 Water Cooler Control

SKU CH-2SMZ-4154A

Controls water-cooler temperature between 37 °F and 61 °F with a 48 in capillary and SPST switch action

  • Controls water-cooler temperature between 37 °F and 61 °F
  • Capillary length of 48 in allows flexible mounting
  • SPST switch closes on temperature rise for reliable operation
  • Rated 10 A full-load and 40 A locked-rotor current
  • Certified to CSA, ENEC and UL safety standards

Water Cooler Control

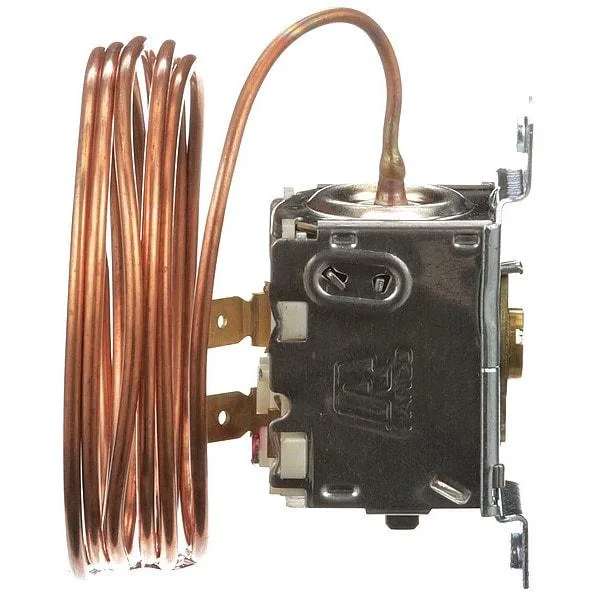

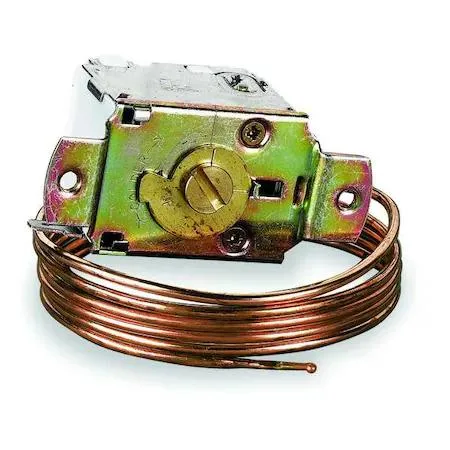

The Ranco K-3001 is a thermostatic switch designed to regulate water cooler compressors. It opens and closes a single-pole single-throw contact based on the temperature sensed by its 48-inch capillary tube. The control range spans from 37 to 61 degrees Fahrenheit with a switch action that closes on temperature rise.

Installation Compatibility

Verify that the application requires a control with a 37-degree cold-off setting and a normally-off temperature of 46 degrees Fahrenheit. The unit carries CSA, ENEC and UL listings, so confirm these standards meet local code requirements. Ensure the available mounting space accommodates the overall height of 1 9/16 inches and length of 1 5/8 inches.

Electrical and Thermal Performance

In normal operation the switch handles a full-load current of 10/6/6 amps and a locked-rotor rating of 40/36/36 amps. The compressor will typically start when the temperature reaches 53 degrees Fahrenheit and stop once it falls to 37 degrees Fahrenheit. This cycling keeps the cooler within the intended temperature band without continuous running.

Highlights

  • Controls water-cooler temperature between 37 °F and 61 °F
  • Capillary length of 48 in allows flexible mounting
  • SPST switch closes on temperature rise for reliable operation
  • Rated 10 A full-load and 40 A locked-rotor current
  • Certified to CSA, ENEC and UL safety standards

Specifications

BrandRANCO

Questions about this item

What comes in the box with the Ranco K-3001 water cooler control?

The control unit with a 48-inch capillary tube is supplied; mounting hardware and wiring are not included.

Which temperature range suits a standard water cooler application?

The control operates between 37 °F minimum and 61 °F maximum, with normally-off at 46 °F and normally-on at 53 °F for typical cooler cycling.

Will the 10 A full-load rating handle my cooler compressor directly?

Yes, the SPST switch carries 10 A full-load and 40 A locked-rotor current at the rated voltage, suitable for direct compressor control.
