A white rectangular oscilloscope with a 7.0-inch colour screen, two BNC channels, USB ports and a folding handle

Qingdao Hantek Electronic Co.,Ltd

Qingdao Hantek Electronic Co.,Ltd 5102P Digital Storage Oscilloscope USB 100MHz 1GSa/s 40K 2 Channel

SKU CH-XHZ7-XT3ZC

A two-channel digital storage oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sampling and a 7.0-inch 800×480 colour display

  • 100 MHz bandwidth captures fast signals accurately
  • 1 GSa/s real-time sampling resolves fine waveform detail
  • 40 K record length stores long captures for analysis
  • 32 automatic measurements plus FFT speed up debug work

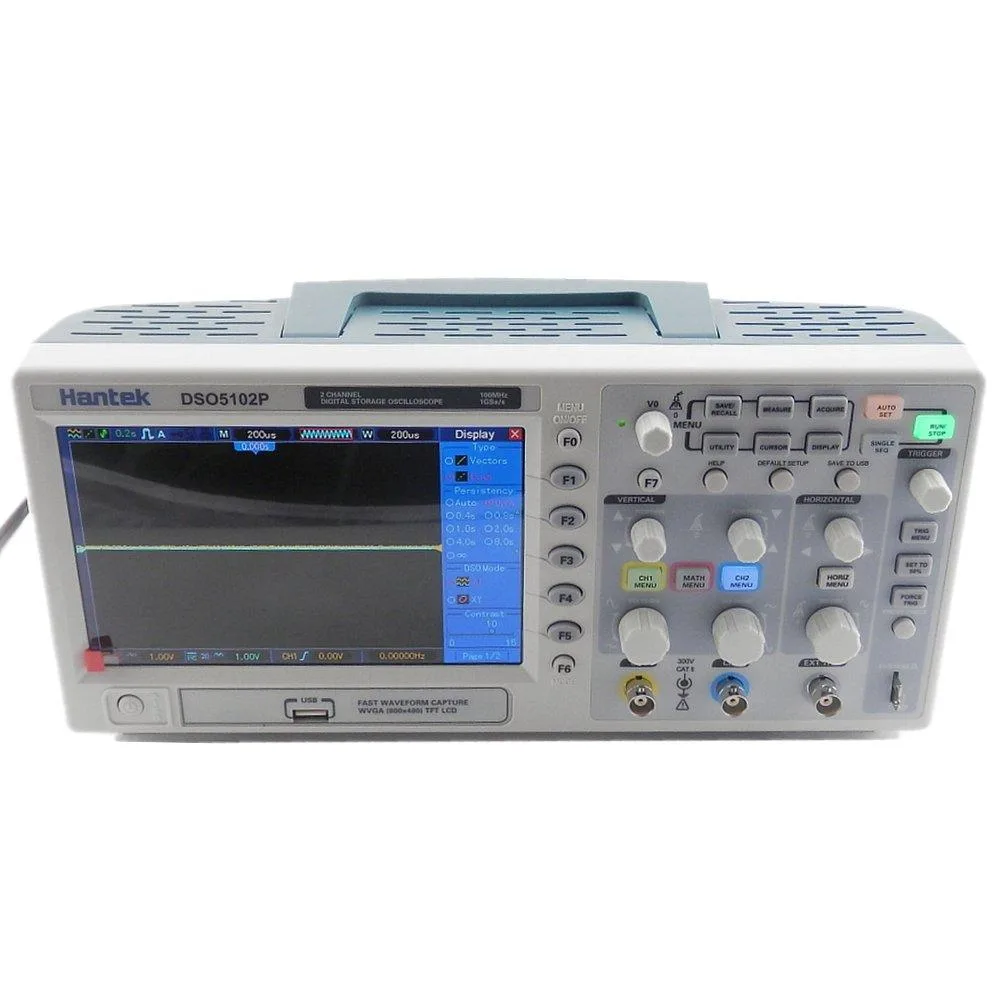

  • 7-inch 800 × 480 colour display shows waveforms clearly

Two-channel USB oscilloscope for field

The Qingdao Hantek 5102P provides 100 MHz bandwidth and a 1 GSa/s real-time sample rate across two channels. A 7.0-inch 800 x 480 colour TFT display shows waveforms clearly. The unit stores more than 1000 waveforms internally and supports USB storage devices for portable use.

Practical limits of the USB interface

Real-time sampling tops out at 1 GSa/s with a 40 K record length, while equivalent-time sampling reaches 25 GSa/s for repetitive signals. The 8-bit A/D converter and 5 ns rise time define vertical resolution and edge response. Time-base accuracy is ±50 ppm across a 4 ns/div to 40 s/div range.

Build, connectors and daily handling

A folding handle and compact USB-powered design make the instrument easy to carry and set up. Front-panel buttons are grouped by function for quick access. The package includes two PP150 passive probes, a USB cable, a power line, replaceable test wires, an installation CD and the original box.

Highlights

  • 100 MHz bandwidth captures fast signals accurately
  • 1 GSa/s real-time sampling resolves fine waveform detail
  • 40 K record length stores long captures for analysis
  • 32 automatic measurements plus FFT speed up debug work
  • 7-inch 800 × 480 colour display shows waveforms clearly

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 100MHz bandwidth version or the 25GSa/s equivalent sample rate version?

This model provides both 100MHz bandwidth and 25GSa/s equivalent sampling simultaneously; they are not separate versions to choose between.

What does the 1GSa/s real-time sample rate mean when I am measuring a 100MHz signal?

At 1GSa/s you get ten samples per cycle at 100MHz, which is sufficient for basic waveform reconstruction and the 32 automatic measurements.

What does the USB host and device connectivity cap in practice?

The USB host accepts flash drives for storing over 1000 waveforms and the USB device port enables PC software control and firmware upgrades.
