Compact white plastic two-pole breaker with push-to-reset actuator and bolt-on lugs

Pushmatic

Pushmatic UBIP 40 A 2 Pole 120/240 V Miniature Circuit Breaker

SKU CH-YTN8-HE0NX

A 40 A, 2-pole miniature circuit breaker with push-to-reset actuation and bolt-on mounting for 120/240 V AC panels

  • 40 A two-pole protection for 120/240 V circuits
  • Push-to-reset actuator restores power without tools
  • Bolt-on mounting fits Pushmatic and Bulldog load centers
  • 10 kA interrupting rating handles high fault currents

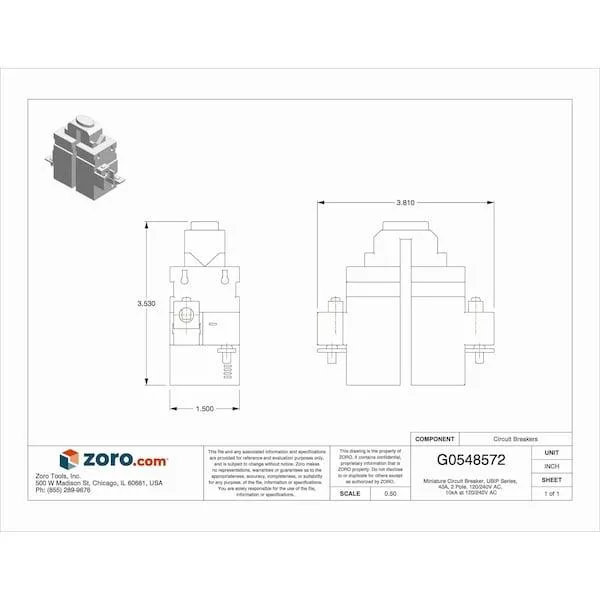

  • Compact 3.8 in frame saves panel space

Product identity and intended use

The Pushmatic UBIP miniature circuit breaker is a 40 A two-pole device rated for 120/240 V AC single-phase service. It is built for Pushmatic and Bulldog load centers that accept the L250-PL14 series. The push-to-reset actuator and bolt-on mounting suit standard branch-circuit protection in residential or light-commercial panels.

Interrupting capacity and connection limits

The breaker carries a 10 kA AIR rating at 120/240 V AC and fits a 100 A frame size with HACR marking. It is not rated for DC applications. Termination uses a lug connection compatible with the panelboard bus. The UBIP series does not support load centers outside the specified Pushmatic and Bulldog compatibility list.

Pre-installation checks for your panel

Confirm the load center is a Pushmatic or Bulldog model that lists the L250-PL14 series as compatible. Verify the panel has an open two-pole bolt-on position and that the bus rating does not exceed 100 A. Ensure the circuit voltage is 120/240 V AC single phase and that DC circuits are not involved.

Highlights

  • 40 A two-pole protection for 120/240 V circuits
  • Push-to-reset actuator restores power without tools
  • Bolt-on mounting fits Pushmatic and Bulldog load centers
  • 10 kA interrupting rating handles high fault currents
  • Compact 3.8 in frame saves panel space

Specifications

BrandPUSHMATIC

Questions about this item

How do I know if the 40 A, 2-pole version fits my panel?

This breaker is built for Pushmatic and Bulldog load centres in the L250-PL14 series and uses a bolt-on mounting style, so it matches panels that accept that frame and connection type.

What does the 10 kA AIR rating mean when the breaker is installed?

It indicates the breaker can safely interrupt up to 10 000 amps of fault current at 120/240 V AC, protecting the circuit during a short-circuit event.

Does the bolt-on mounting limit the type of panel I can use it with?

Yes, the bolt-on design and L250-PL14 series compatibility mean it only fits Pushmatic or Bulldog load centres that accept that specific mounting style.
