Prime-Line D 1789 sliding glass door roller assembly, stamped steel housing with concave nylon ball bearing roller and K-tab

Prime-Line

Prime-Line D 1789 Sliding Glass Door Roller Assembly

SKU CH-WYCH-Y848R

A K-tab patio door roller assembly with a 1-1/2 in. concave nylon ball bearing roller that slides into a T-shaped receptacle without screws

  • TypeDoor Hardware & Components
  • K-tab design slides into door frame without screws
  • 1-1/2 in. concave ball bearing roller for smooth operation
  • Stamped steel body provides durable construction
  • Rear adjusting screw allows precise door alignment
  • Compatible with International and other patio door brands

Prime-Line D 1789 Sliding Door Roller

The Prime-Line D 1789 is a K-tab patio door roller assembly designed for sliding glass doors. It features a 1-1/2 in. concave nylon ball bearing roller and a stamped steel body. The T-shaped tab slides into a matching receptacle in the door bottom without screws. This part suits homeowners repairing International and other compatible patio door brands.

Installation Requirements and Compatibility

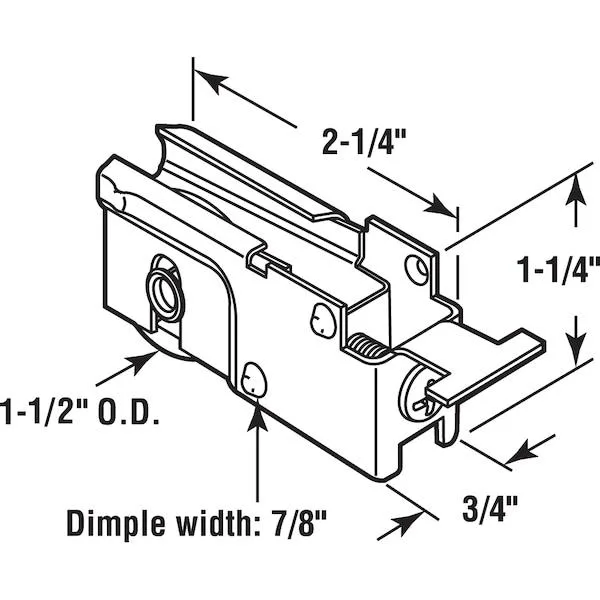

The roller housing measures 3/4 in. wide by 1-1/4 in. tall with a 7/8 in. dimple width for frame retention. A Phillips head screwdriver is needed to operate the rear adjusting screw during installation. The K-tab design only fits doors with a T-shaped receptacle channel. Doors lacking this specific receiver style cannot use this assembly.

K-Tab Receiver Fit Decides Suitability

The single specification determining fit is the presence of a T-shaped receptacle in the door bottom rail. The K-tab slides up into this channel and is secured by dimples on the housing. If the existing door uses a different mounting method such as screw-on brackets or a flat tab, this roller will not install. Verify the receptacle profile before purchase.

Highlights

  • K-tab design slides into door frame without screws
  • 1-1/2 in. concave ball bearing roller for smooth operation
  • Stamped steel body provides durable construction
  • Rear adjusting screw allows precise door alignment
  • Compatible with International and other patio door brands

Specifications

BrandPRIME-LINE
TypeDoor Hardware & Components

Questions about this item

Which roller diameter fits my patio door, the 1-1/2 in. concave nylon ball bearing or another size?

This assembly uses a 1-1/2 in. diameter concave nylon ball bearing roller; verify your existing roller matches that diameter before ordering.

How does the K-tab mounting work once the assembly is inside the door frame?

The T-shaped K-tab slides up into a matching T-shaped receptacle in the door bottom; dimples on the housing then lock it in place without screws.

What adjustment does the rear screw provide after the roller is installed?

The rear adjusting screw lets you raise or lower the door panel to correct alignment and rolling effort once the assembly is seated.
