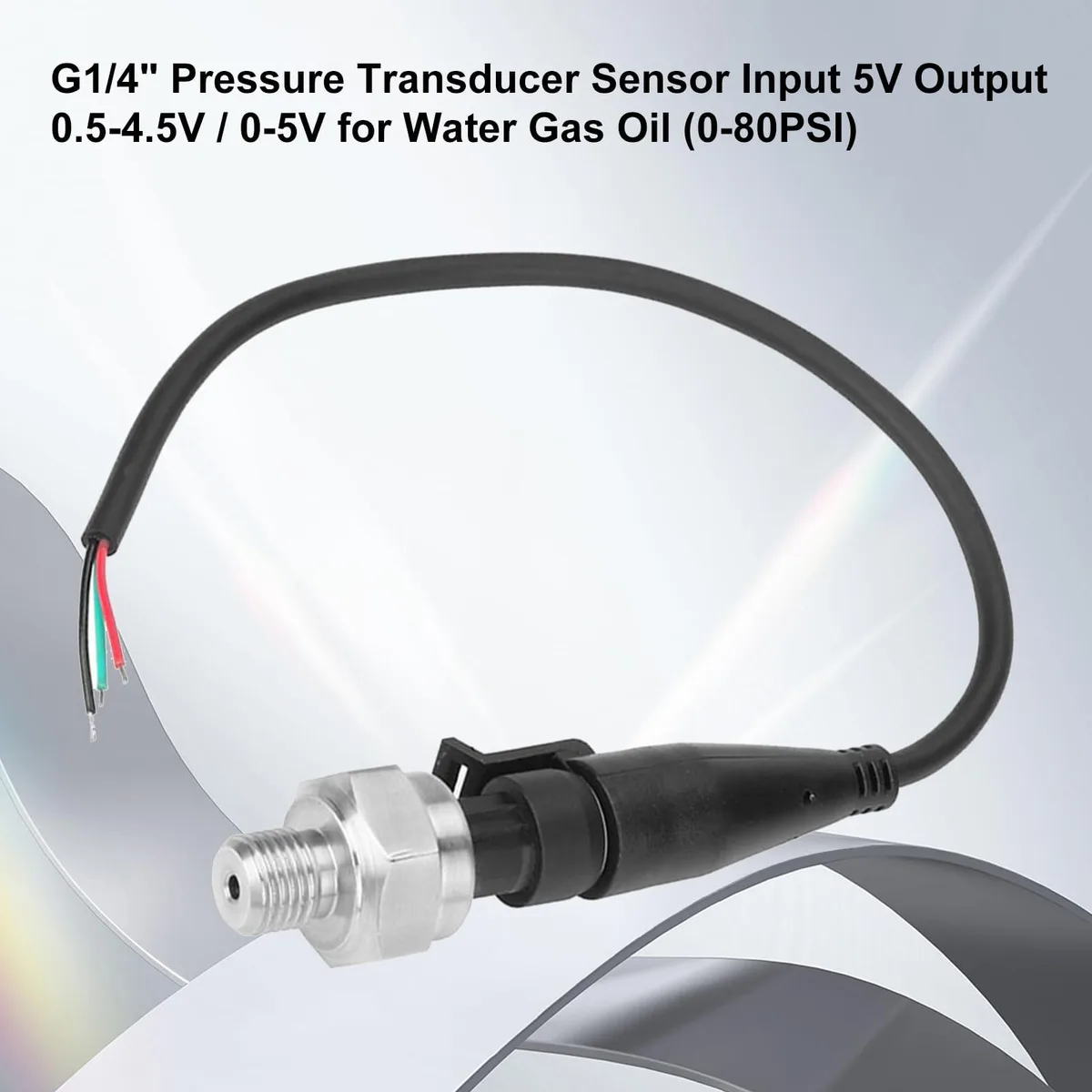

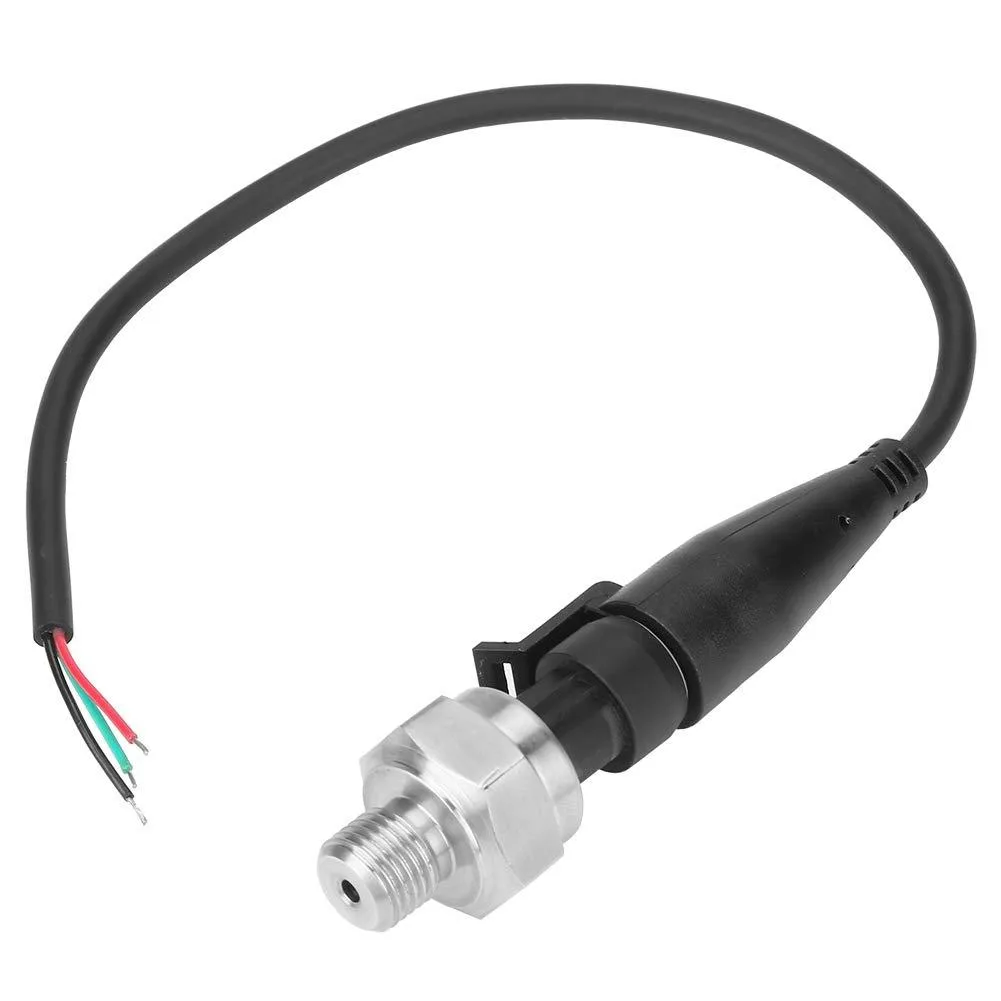

Stainless steel G1/4 pressure transducer sensor 0-80PSI 0.5-4.5V output

Pressure Gauge 0-80PSI 0.5-4.5V Output

SKU CH-5PVZ-KPDRY

G1/4 stainless-steel pressure transducer measures 0-80 PSI with 0.5-4.5 V output and 0.5 %FS accuracy

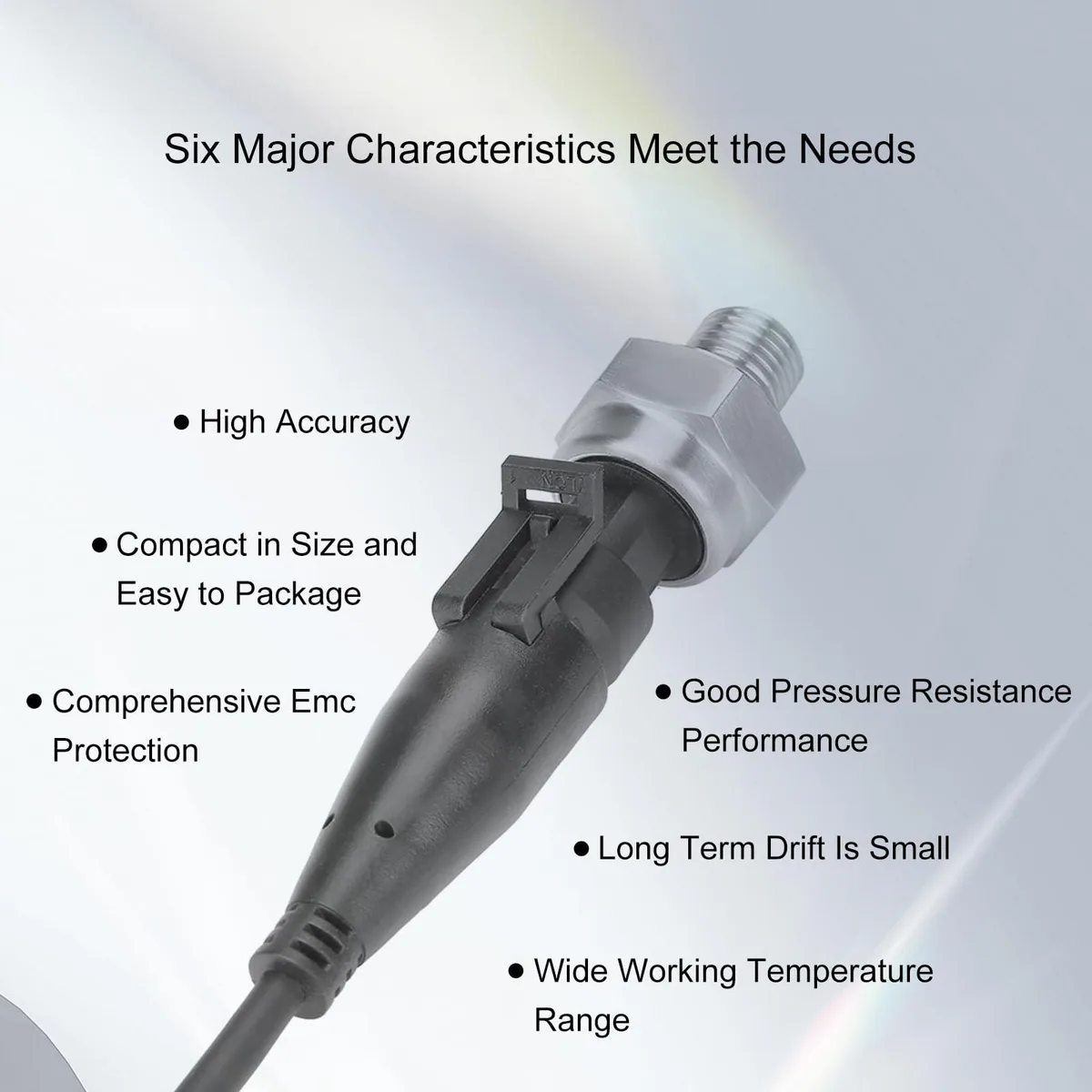

  • Precision compensation technology delivers stable, reliable readings
  • Stainless steel G1/4 body ensures long-lasting performance
  • 5%FS minimal error provides precise measurements
  • Versatile for oil, gas, water, and fuel level detection
  • Compact, lightweight design allows easy installation

Pressure transducer for fluid monitoring

This G1/4 pressure transducer sensor measures oil, fuel, diesel, gas and water levels in tanks. It uses precision compensation technology with sensitive components for stable and reliable readings. The stainless steel body provides durability and includes surge voltage protection. Its small, lightweight design allows for easy installation in various tank applications.

Output signal range 0.5 to 4.5 volts

The sensor operates on a 5 volt input and delivers a linear output from .5 volts at zero pressure to 4.5 volts at the maximum 80 PSI. Accuracy is rated at 0.5% full scale, covering non-linearity, hysteresis and repeatability. Wiring uses red for 5 volt supply, black for ground and green for the signal output. This specific voltage range determines compatibility with your monitoring equipment.

Suits tank level monitoring with 0.5-4.5V input

This unit fits builders needing a G1/4 threaded sensor with a 0.5 to 4.5 volt output curve for liquid or gas measurement up to 80 PSI. It is not for systems that require a 0 to 5 volt or 0 to 3.5 volt signal range without external scaling. Buyers who need a different thread size, pressure range or output protocol should look at other transducers.

Highlights

  • Precision compensation technology delivers stable, reliable readings
  • Stainless steel G1/4 body ensures long-lasting performance
  • 5%FS minimal error provides precise measurements
  • Versatile for oil, gas, water, and fuel level detection
  • Compact, lightweight design allows easy installation

Specifications

No published specifications for this item yet.

Questions about this item

What does the 80 PSI maximum mean when the sensor is installed in a live system?

It marks the pressure at which the output reaches 4.5 V; any pressure above 80 PSI stays at the same voltage and is not measured.

How does the 0.5–4.5 V output work with a 5 V supply and what does it limit?

Red wire takes 5 V, black is ground, green delivers 0.5 V at zero pressure rising linearly to 4.5 V at 80 PSI; the span is fixed by the sensor.

What thread and material do I need to mount this transducer?

It uses a G1/4 thread on a stainless steel body, so the port must accept G1/4 and be compatible with stainless steel.
