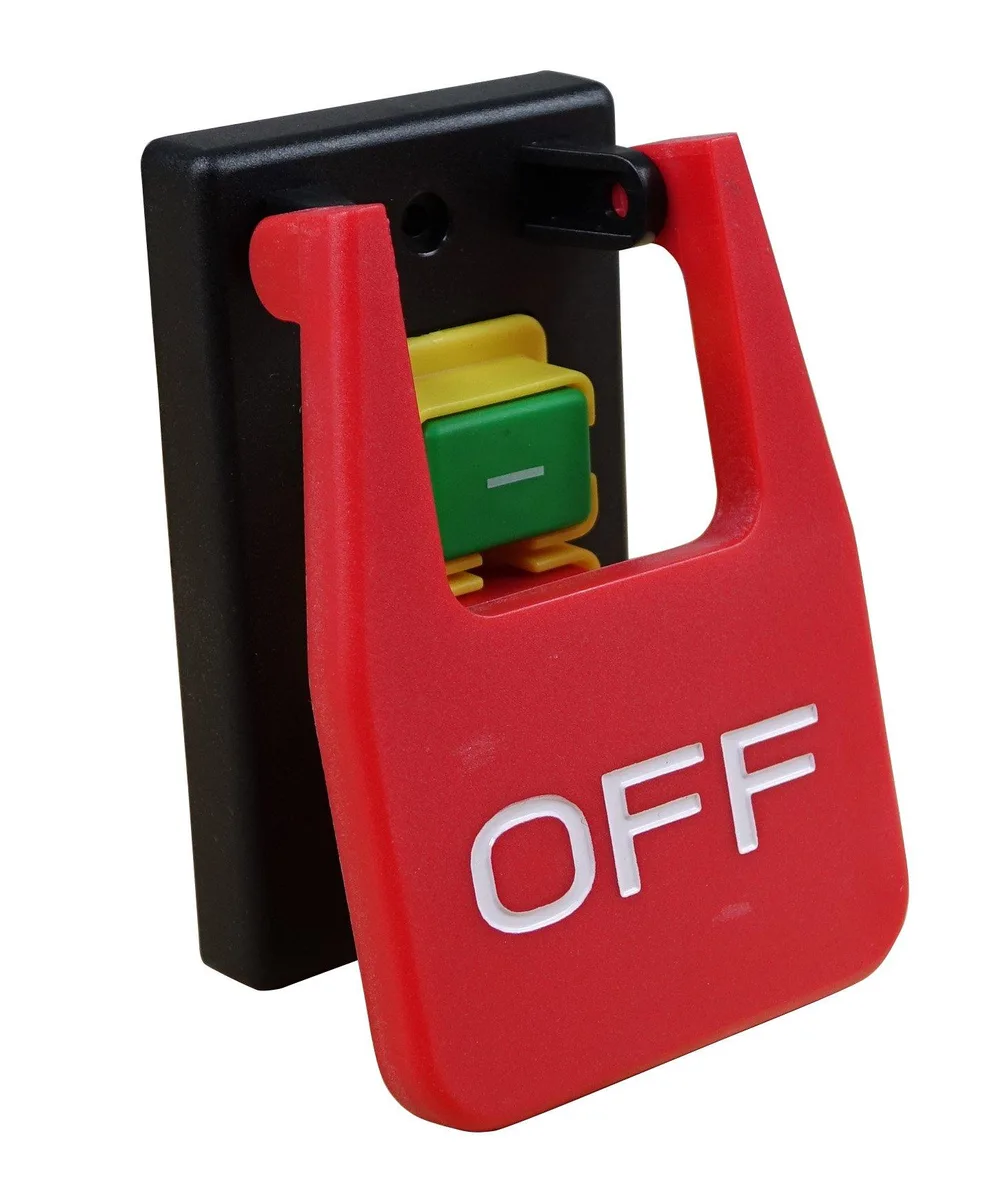

Rectangular plastic safety switch with large red knee paddle and green recessed on button

POWERTEC 71054 120V 9A Magnetic Paddle Switch IP54

SKU CH-0YDV-EYT9Q MPN 71054

A 120V magnetic paddle switch rated 9A with IP54 protection and a large knee-operated emergency stop paddle for table saws, routers and drill presses

  • TypeSurface Mount
  • Amps9 amps
  • Horsepower20
  • Includesfalse
  • Voltage12
  • StyleMagnetic Paddle Switch - 120v 9a
  • Knee-activated emergency stop cuts power instantly
  • Magnetic latch prevents automatic restart after power loss
  • IP54-rated enclosure resists dust and water splashes
  • Pre-wired cords with safety key simplify installation
  • 120 V 9 A rating suits routers, saws, drill presses

Purpose & Audience

The POWERTEC 71054 is a 120V magnetic paddle switch rated for 9 amps continuous load and up to 1/2 HP motors. It is designed for woodworkers and machinists who need a hands-free emergency stop on table saws, router tables, drill presses or band saws.

Compatibility Check

Verify your tool runs on 120V single-phase power and draws no more than 9 amps continuous current. The switch fits POWERTEC 71834 deep gang boxes or standard boxes with extension rings using 6-32 mounting hardware, which is not included. Confirm your motor’s startup current does not exceed the switch rating before installation.

Sustained-Load Behaviour

The magnetic mechanism prevents automatic restart after a power loss or outage, keeping the tool off until the green ON button is pressed again. Rated IP54, the plastic enclosure resists dust ingress and water splashes during prolonged workshop use. Continuous operation stays within the 9 amp limit, while the 16 amp peak capacity handles brief motor starting surges.

Highlights

  • Knee-activated emergency stop cuts power instantly
  • Magnetic latch prevents automatic restart after power loss
  • IP54-rated enclosure resists dust and water splashes
  • Pre-wired cords with safety key simplify installation
  • 120 V 9 A rating suits routers, saws, drill presses

Specifications

TypeSurface Mount
Amps9 amps
Horsepower20
Includesfalse
Voltage12
StyleMagnetic Paddle Switch - 120v 9a
MaterialPlastic
IP RatingIP54
BrandPOWERTEC
Model71054
Featuresrouters, table saws, drill presses, band saws, Craftsman, Shop Fox, Grizzly
Part Number71054

Questions about this item

Does the POWERTEC 71054 come with the 6-32 mounting screws and nuts needed to install it in a standard gang box?

The switch includes a removable safety lock key and pre-wired cords, but the required 6-32 screws and nuts for replacing the original M4 hardware are not included and must be purchased separately.

The specs list both 16 amp and 9 amp ratings; which one should I use to match my tool?

The continuous load is limited to 9 amps at 120V with a maximum of 1/2 HP; use the 9 amp rating to confirm your tool's running current stays within this limit for safe operation.

What does the IP54 rating mean for a switch mounted on a table saw or router table?

IP54 indicates the enclosure is protected against dust ingress that could interfere with operation and against water splashing from any direction, suitable for typical workshop environments.
