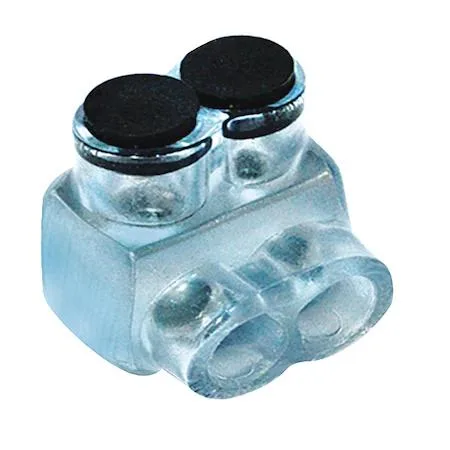

Clear plastisol-insulated aluminium two-port connector with hex heads

Polaris Vision Tap

Polaris Vision Tap IT-4CB 2-port insulated multitap connector

SKU CH-HHMF-MRHYF

Two-port insulated multitap connector joins aluminium or copper conductors from 14 to 4 AWG with a clear plastisol body rated to 194 °F and 600 V

  • Insulated plastisol body protects connections up to 194 °F
  • Dual-port design accepts 14 to 4 AWG stranded copper and aluminium conductors
  • Hex-head set screws allow secure termination with 1/8 in hex driver
  • cULus listed to UL 486A and UL 486B for 600 V applications
  • RoHS compliant aluminium construction ensures code-compliant installations

2-Port Insulated Multitap Connector

This Polaris Vision Tap connector joins two conductors in a single insulated block. The aluminium body accepts copper or aluminium wires from 14 AWG up to 4 AWG. A clear plastisol coating provides dielectric protection and visual confirmation of wire seating. Electricians and panel builders use it for service entrances, motor leads and equipment taps rated to 600 V.

Thermal Performance and Electrical Ratings

The assembly carries a maximum operating temperature of 194 °F and complies with cULus, UL 486A and UL 486B listings. RoHS compliance confirms restricted-substance adherence. Under normal load the connector runs at the temperature of the attached conductors without added cooling requirements.

Build Integration and Installation

Each port is secured with a 1/8 in hex set screw, allowing standard driver access in tight enclosures. The two-port layout frees DIN-rail or gutter space compared with multiple single lugs. Clear insulation lets inspectors verify full conductor insertion without removal. The connector mounts in any orientation inside rated enclosures.

Highlights

  • Insulated plastisol body protects connections up to 194 °F
  • Dual-port design accepts 14 to 4 AWG stranded copper and aluminium conductors
  • Hex-head set screws allow secure termination with 1/8 in hex driver
  • cULus listed to UL 486A and UL 486B for 600 V applications
  • RoHS compliant aluminium construction ensures code-compliant installations

Specifications

BrandPOLARIS

Questions about this item

How do I install the Polaris Vision Tap IT-4CB connector and what step is often missed?

Strip each conductor to the proper length, insert fully into both ports, then tighten the two 1/8 in hex screws until the plastisol insulation seats evenly around every wire.

What maintenance will the IT-4CB need over time?

Inspect the clear plastisol insulation periodically for cracking or heat discolouration; if the 194 Degrees F rating is ever exceeded, replace the connector rather than re-using it.

What limit appears first when the IT-4CB runs continuously at high load?

The 194 Degrees F maximum operating temperature is reached before the 600 V voltage rating becomes a concern.
