Peerless Industries, Inc.

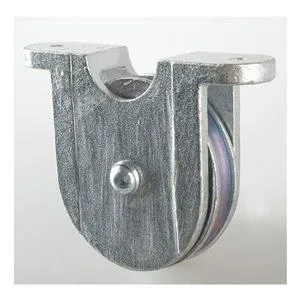

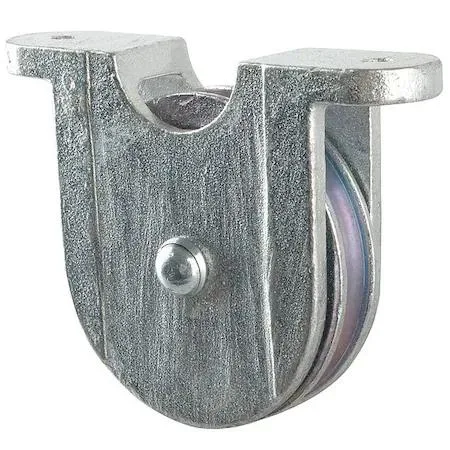

Peerless 3-020-13-86 Cheek Block Wire Rope 3/8 in
A side-mounted steel cheek pulley block for 3/8 in wire rope with a 3 in sheave and bolt-on attachment
- TypeAngle, Pitch & Slope Locators
- Side-mount steel housing bolts directly to structures
- 3 in steel sheave handles 3/8 in wire rope smoothly
- 19/32 in sheave depth keeps cable aligned under load
- Sleeve bearing reduces friction during lifting and pulling
- 7/32 in mounting hole fits standard hardware fasteners
Peerless Cheek Block for 3/8 in Wire Rope
This steel cheek block is a side-mounted pulley designed for lifting and pulling tasks using wire rope up to 3/8 in diameter. It suits rigging professionals and maintenance crews who need a fixed redirect point on flat surfaces.
Check mounting surface
The block attaches through a 7/32 in mounting hole and requires a compatible bolt or stud. Verify that the structure can accept the side-mount orientation and that the single 3 in sheave with 19/32 in depth clears the rope path without interference.
Sleeve bearing runs on steel sheave in normal use
The steel sheave with 2 7/32 in inside diameter rotates on a sleeve bearing without lubrication fittings. Expect audible metal contact under load and periodic inspection for wear. No working load limit is rated by the manufacturer.
Highlights
- Side-mount steel housing bolts directly to structures
- 3 in steel sheave handles 3/8 in wire rope smoothly
- 19/32 in sheave depth keeps cable aligned under load
- Sleeve bearing reduces friction during lifting and pulling
- 7/32 in mounting hole fits standard hardware fasteners
Specifications
| Brand | Peerless |
|---|---|
| Type | Angle, Pitch & Slope Locators |
Questions about this item
What comes with the Peerless 3-020-13-86 cheek block and what must I buy separately?
The unit is a complete steel cheek block with a sleeve-bearing sheave for 3/8 in wire rope. Rope, mounting bolts and any rigging hardware are sold separately.
How do I choose the right version for my wire rope size?
This model is built for a maximum 3/8 in wire rope diameter. If your rope is thicker or thinner, select a different Peerless block rated for that size.
What does the 3 in sheave outside diameter mean when the block is under load?
The 3 in outside diameter gives a fixed bend radius for the wire rope, reducing fatigue while the sleeve bearing handles the rotation during lifting or pulling.
