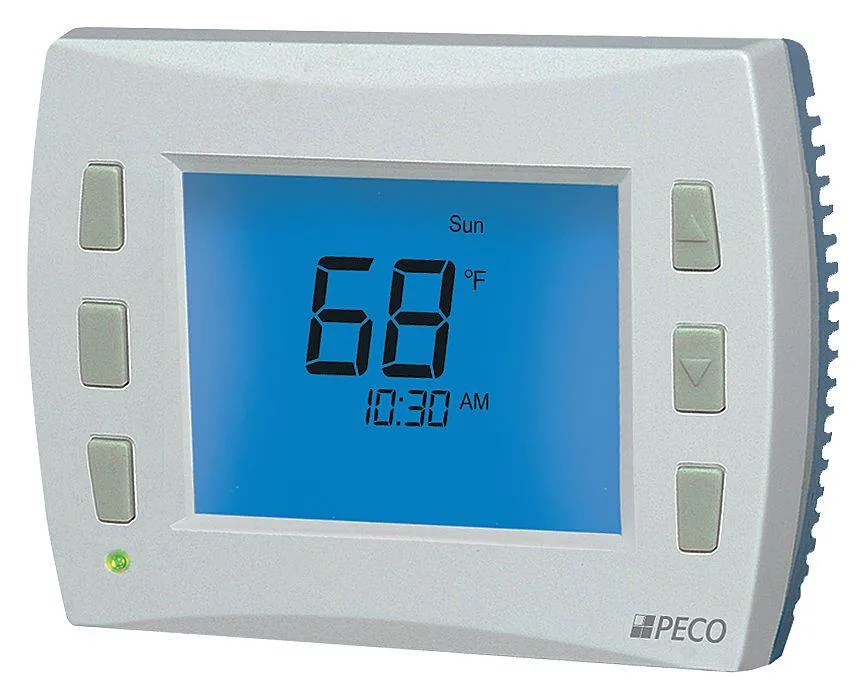

White rectangular wall thermostat with blue digital display

Peco

Peco T8532-001 Low Voltage Thermostat 3H/2C 24VAC

SKU CH-TT0K-FPPEQ MPN T8532-001

A low-voltage thermostat controlling three heating and two cooling stages with 24 VAC power

  • TypeLearning Thermostats
  • ColorWhite
  • 3 heat / 2 cool stages handle multi-stage systems
  • 7-day, 5-2, 5-1-1 or non-programmable scheduling fits any routine
  • 8 sq in blue digital display shows settings clearly
  • Keypad lockout prevents unauthorised changes
  • Auto changeover switches between heating and cooling automatically

Low Voltage Thermostat for HVAC Systems

The Peco T8532-001 is a low voltage thermostat designed for residential and light commercial heating and cooling equipment. It supports up to three heating stages and two cooling stages with a 24VAC power supply. Installers and homeowners can choose from 7-day, 5-2, 5-1-1 or non-programmable schedules to match daily routines. The digital display features a blue backlight and an 8 square inch viewing area for clear reading.

Thermals Noise and Power Draw

The unit operates on a standard 24VAC control circuit and draws minimal current during normal operation. No fan or compressor is integrated, so the thermostat itself produces no audible noise. Heat generated by the electronics is negligible and does not affect surrounding wall surfaces. Power consumption remains constant regardless of the selected program or stage configuration.

Terminal Layout Determines Compatibility

Wiring terminals include A, C, E, G, RC, RH, S1, S2, S3, SC, W1 (B/O), W2 (AUX), Y1 and Y2 for multi-stage equipment. The board provides dedicated connections for humidification control, though that function is not supported on this model. Automatic changeover switches between heating and cooling without manual intervention. Keypad lockout prevents unauthorised changes to the programmed schedule.

Highlights

  • 3 heat / 2 cool stages handle multi-stage systems
  • 7-day, 5-2, 5-1-1 or non-programmable scheduling fits any routine
  • 8 sq in blue digital display shows settings clearly
  • Keypad lockout prevents unauthorised changes
  • Auto changeover switches between heating and cooling automatically

Specifications

BrandPeco
ModelT8532-001
TypeLearning Thermostats
ColorWhite

Questions about this item

How do I wire the 24VAC thermostat to the RC and RH terminals, and which step is often missed?

Connect the 24VAC transformer wires to RC and RH, then remove the factory jumper between them if your system uses separate heating and cooling transformers.

What maintenance will the T8532-001 require over time?

Replace the backup batteries annually to keep programmed schedules and clock settings during power interruptions.

What limits the number of heating stages I can control with this thermostat?

The thermostat supports a maximum of three heating stages and two cooling stages, so a fourth heating stage cannot be connected.
