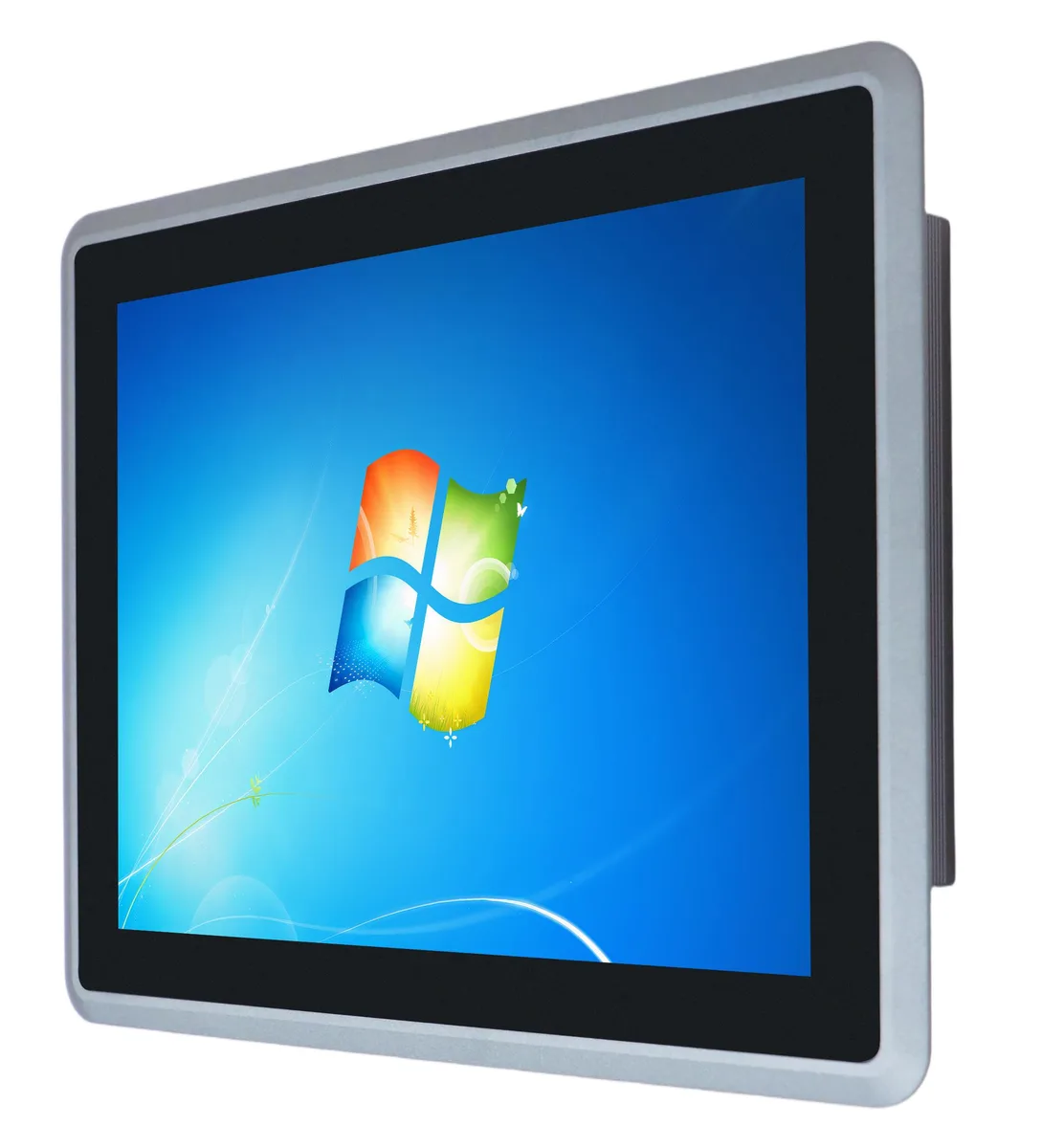

12.1 inch gray aluminum all-in-one panel PC with capacitive touch screen

partaker

partaker A26 12.1" AI edge system i3-5005U 8GB 128GB

SKU CH-0F9Y-CSBB7

A fanless 12.1-inch industrial panel PC with an IP65-rated capacitive touch screen, Intel Core i3-5005U processor, 8 GB DDR3 memory, 128 GB mSATA storage, dual Gigabit LAN, HDMI, two serial ports.

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A26 12.1" Capacitive I3 5005U 8GB RAM / 128GB SSD

  • Fanless aluminium alloy chassis runs silently in dusty environments
  • IP65-rated front panel resists water and dust ingress
  • 1-inch capacitive multi-touch screen at 1024×768 resolution

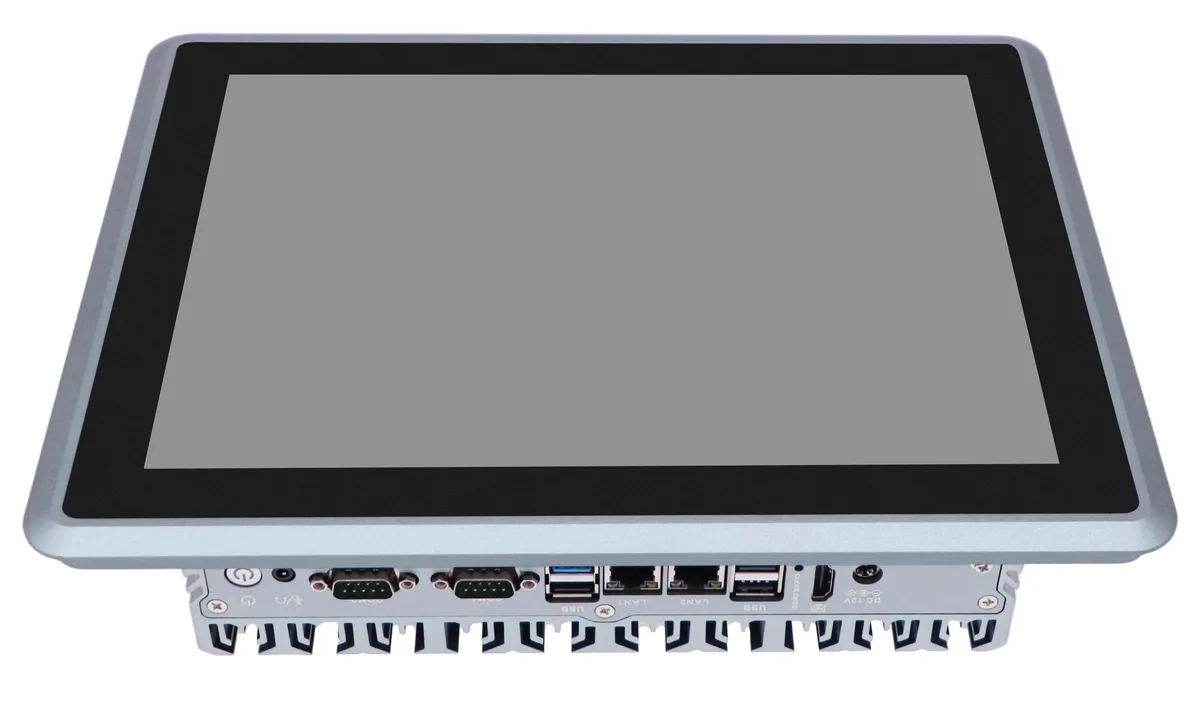

  • Dual Gigabit LAN plus four USB and two COM ports for industrial connectivity
  • Intel Core i3-5005U dual-core processor with 8 GB DDR3 and 128 GB mSATA storage

Industrial Panel PC for Automation

The Partaker A26 is a 12.1-inch all-in-one industrial panel PC built around an Intel Core i3-5005U processor, 8 GB of DDR3 memory and a 128 GB mSATA drive. It ships with Windows 10 Pro on a capacitive multi-touch TFT-LCD running at 1024 x 768 resolution. The fanless aluminium chassis carries an IP65-rated front panel, making the unit suited for machine interfaces, SCADA terminals and edge-AI inference in dusty or wet factory environments.

Sustained Load Behaviour

Passive cooling across the sealed alloy body keeps the dual-core CPU at its 2.00 GHz base clock during long shifts without throttling, while the solid-state drive maintains consistent read-write latency from -20 °C to +60 °C. Dual Realtek Gigabit LAN ports and two configurable RS232/485 COM ports provide deterministic I/O for PLCs and sensors, and the watchdog timer (0-255 levels) adds automatic recovery if a process hangs.

Installation and Common Issues

Embedded mounting requires a precise 298.5 x 237 mm cut-out; VESA brackets are an alternative but add depth behind the panel. The single 12 V DC jack (optional 9-36 V wide-range) uses a locking connector — loose crimps are the most frequent cause of intermittent power loss. Only one mSATA slot exists, so storage expansion means cloning the drive; the two mini-PCIe sockets are reserved for wireless modules, not extra SSDs.

Highlights

  • Fanless aluminium alloy chassis runs silently in dusty environments
  • IP65-rated front panel resists water and dust ingress
  • 1-inch capacitive multi-touch screen at 1024×768 resolution
  • Dual Gigabit LAN plus four USB and two COM ports for industrial connectivity
  • Intel Core i3-5005U dual-core processor with 8 GB DDR3 and 128 GB mSATA storage

Specifications

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much noise and heat does the fanless aluminium chassis produce when the i3-5005U runs continuously?

The system uses a completely fanless aluminium alloy chassis, so it generates no audible fan noise. Operating temperature is rated from -20 °C to +60 °C with a solid-state drive, and the front panel is IP65 sealed against dust and water ingress.

Which cables and peripherals must I already have to install the A26 in a control cabinet?

You will need a 12 V DC power source (or 9–36 V wide-range supply if ordered), a network cable for one of the two Gigabit Ethernet ports, and any serial devices for the two RS232/485 COM ports. The unit includes the capacitive touch screen, 8 GB DDR3 RAM and 128 GB mSATA storage.

Can the HDMI port drive a legacy 1024×768 monitor while the built-in 12.1" panel stays active?

Yes. The HDMI and the internal LVDS connection support synchronous or asynchronous dual display, so an external monitor at the panel's native 1024×768 resolution can run independently or mirrored.
