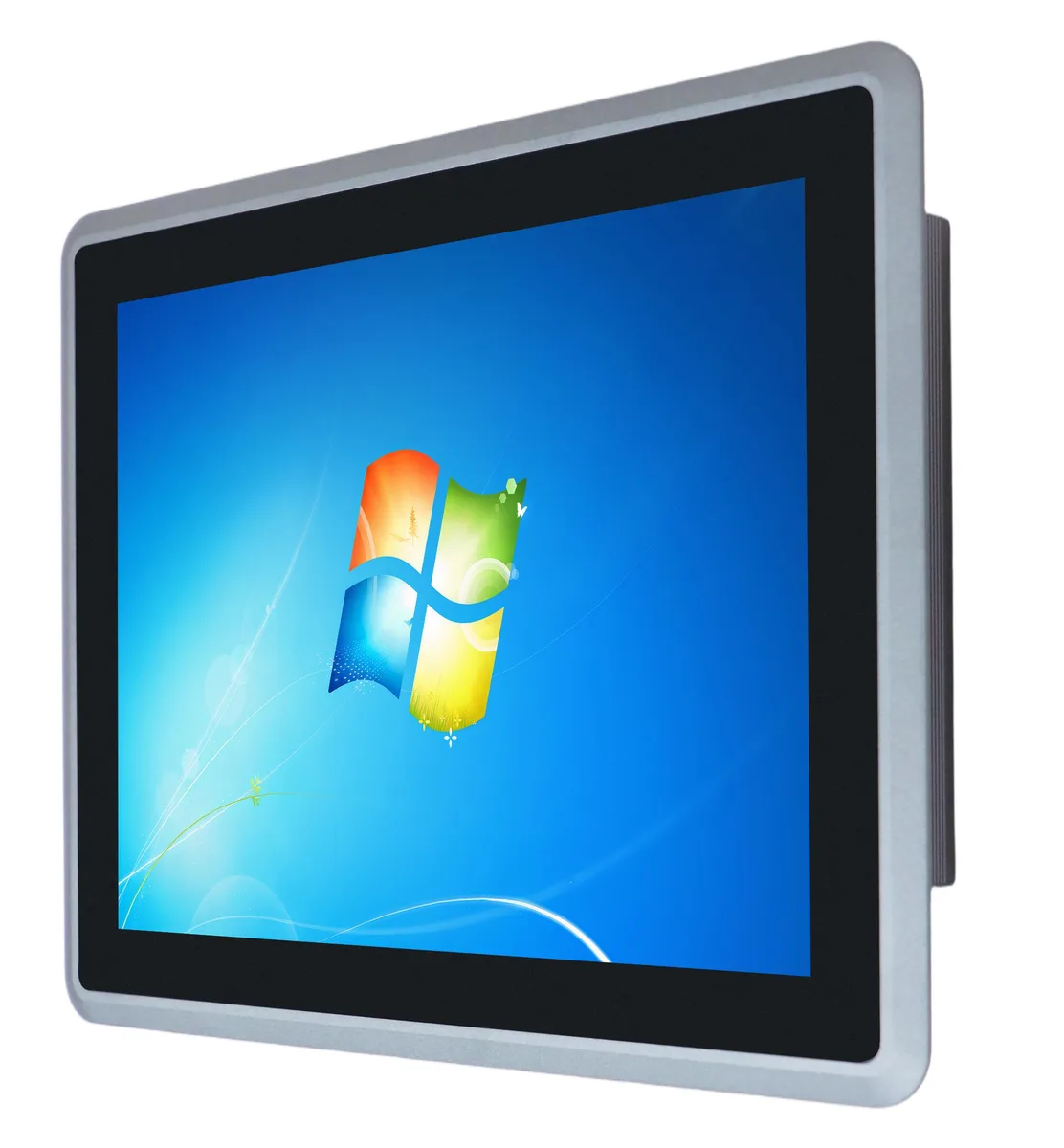

Gray 12.1-inch fanless panel PC with capacitive touch screen and aluminum alloy chassis

partaker

Partaker A26 12.1" AI edge system i3-5005U 4GB 128GB

SKU CH-FZPM-ENBWA

A fanless 12.1-inch industrial panel PC with an IP65-rated capacitive touchscreen, Intel Core i3-5005U processor, 4 GB DDR3 memory, 128 GB mSATA storage and Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A26 12.1" Capacitive I3 5005U 4GB RAM / 128GB SSD

  • Silent fanless aluminium chassis handles -20 to 60 °C reliably
  • IP65 front panel resists dust and water in harsh settings
  • 1 inch 1024x768 capacitive touch screen gives clear multi-touch control
  • Dual Gigabit LAN plus four USB and two COM ports connect factory gear
  • i3-5005U with 4 GB DDR3 and 128 GB mSATA runs automation tasks smoothly

Industrial 12.1" Panel PC

The Partaker A26 is a fanless all-in-one system built around an Intel Core i3-5005U dual-core processor running at 2.00 GHz. It ships with 4 GB of DDR3 memory and a 128 GB mSATA drive, ready for Windows 10 Pro. The unit targets automation engineers and integrators who need a compact, self-contained human-machine interface for machine control, data logging or SCADA visualization in space-constrained cabinets.

IP65 Front Panel and Dual LAN

A 12.1-inch capacitive TFT-LCD with 1024x768 resolution and 450 cd/m² brightness sits behind a fully flat IP65-rated bezel that resists dust and water jets. The aluminum alloy chassis dissipates heat silently across a -20 °C to +60 °C range. Two Realtek Gigabit Ethernet ports support wake-on-LAN and PXE boot, while two RS232/485 COM ports, four USB ports, HDMI and audio connect directly to PLCs, sensors and peripheral displays without extra adapters.

Expandable Mini PCIe and Watchdog

Two full-size Mini PCIe slots accept Wi-Fi, Bluetooth or 4G modules with a SIM holder for wireless connectivity in remote sites. The AMI EFI BIOS exposes a programmable watchdog timer from 0 to 255 levels and timer power-on for unattended recovery. An optional wide-range 9-36 V DC input can be specified at order time, and the standard 12 V DC jack ships with the unit. Internal expansion supports up to 16 GB of DDR3 across two SO-DIMM sockets.

Highlights

  • Silent fanless aluminium chassis handles -20 to 60 °C reliably
  • IP65 front panel resists dust and water in harsh settings
  • 1 inch 1024x768 capacitive touch screen gives clear multi-touch control
  • Dual Gigabit LAN plus four USB and two COM ports connect factory gear
  • i3-5005U with 4 GB DDR3 and 128 GB mSATA runs automation tasks smoothly

Specifications

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What resolution does the 12.1-inch capacitive touch panel run at?

The built-in TFT-LCD displays at 1024 by 768 pixels in a 4:3 aspect ratio.

Which cut-out size and VESA pattern are required for embedded or arm mounting?

Embedded mounting needs a 298.5 mm by 237 mm rectangular cut-out; the rear also provides standard VESA mounting holes.

How is the operating system loaded onto the internal mSATA drive during first setup?

Boot from a Windows 10 Pro USB installer, enter the AMI EFI BIOS, set the mSATA SSD as the first boot device, then follow the on-screen setup.
