Small white rectangular LED controller with rounded edges

Pandery PD-CON-12-24V-C 12-24V LED controller

SKU CH-3GT5-H7RAG MPN PD-CON-12-24V-C

Controls 12-24V LED strips via 2.4G remote and app with 0-100% dimming and group control

  • TypeBluetooth
  • Switch Functionapp control,remote control
  • Housing MaterialWhite
  • Mounting Styleled contorl
  • Size/Dimensions2.8956 cm x 5.3086 cm x 9.2964 cm
  • MaterialWhite
  • Control LED strips from a smartphone via the Pandery app

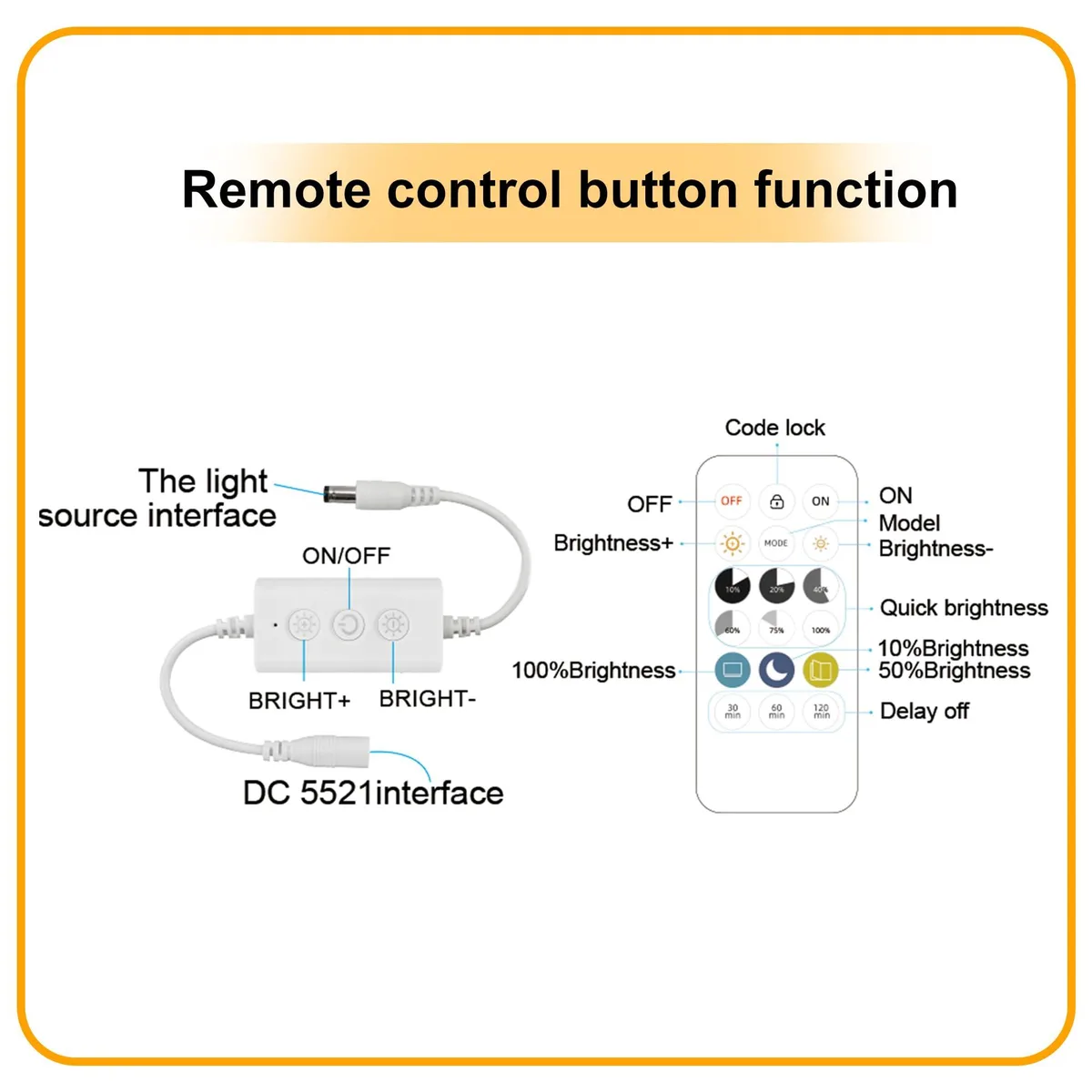

  • Adjust brightness 0-100% with the included 18-key 2.4G remote
  • Operate strips directly using the 3-key in-line controller on the receiver
  • Manage multiple controllers together or separately through app group control
  • Compatible with 5050, 3528, 2835, 5630, 3014 and COB LED strip types

Control method

The Pandery PD-CON-12-24V-C is a dimmable LED controller that accepts a 12-24 V DC input and drives compatible strips at up to 3 A per channel with a 6 A total maximum. It pairs with a supplied 18-key RF remote, a three-button inline controller and a smartphone app for 0-100 % dimming.

Installer fit

Suits installers who want flexible control of monochrome 5050, 3528, 2835, 5630, 3014 or COB strips and the ability to group multiple controllers within a 30 m range. Not suited for buyers who need RGB or CCT colour mixing, DMX or DALI integration, or control of strips that draw more than 6 A in total.

Deciding specification

The single figure that determines compatibility is the 6 A combined output limit; any installation whose strips would exceed this current must use additional controllers or a different power arrangement.

Highlights

  • Control LED strips from a smartphone via the Pandery app
  • Adjust brightness 0-100% with the included 18-key 2.4G remote
  • Operate strips directly using the 3-key in-line controller on the receiver
  • Manage multiple controllers together or separately through app group control
  • Compatible with 5050, 3528, 2835, 5630, 3014 and COB LED strip types

Specifications

TypeBluetooth
BrandPandery
Switch Functionapp control,remote control
ModelPD-CON-12-24V-C
Housing MaterialWhite
Mounting Styleled contorl
Size/Dimensions2.8956 cm x 5.3086 cm x 9.2964 cm
MaterialWhite
Standards/Certifications2A6U6-BR-4808-9, has_fcc_id
Color/FinishWhite
Operating Frequencynot_applicable
Application5050, 3528, 2835, 5630, 3014, COB LED strip lights,
Actuation Typeapp control,remote control
Duty5050, 3528, 2835, 5630, 3014, COB LED strip lights,, led contorl
Compatibility/Fitment5050, 3528, 2835, 5630, 3014, COB LED strip lights,
ResolutionWhite
Display TypeWhite
Color DisplayWhite
FeaturesDimmable
Parts2 year manufacturer., Dimmable
Labor2 year manufacturer., Dimmable
Part NumberPD-CON-CCT

Questions about this item

Will the 12-24V input range and 3A per channel limit let me keep my existing 12V 5050 strip and 24V COB strip?

Yes. The controller accepts DC 12 V to 24 V and delivers up to 3 A per channel with a 6 A total maximum, so it can drive both a 12 V 5050 strip and a 24 V COB strip as long as each strip stays within the per-channel current limit.

How can I confirm the 2.4G remote and the smartphone app are both communicating with the controller after pairing?

Pair the 18-key remote and the app; the controller’s in-line 3-key box will respond to on/off presses, and the app will show real-time brightness from 0 to 100 % when sliders are moved, proving both links are active.

Does the package include a power supply for my LED strip or only the controller, remote and in-line box?

The box contains the controller, an 18-key 2.4G remote and a 3-key in-line control box; a separate DC power supply matched to your strip’s voltage and wattage must be purchased separately.
