Small black metal IR sensor switch controller with DC plug connectors

KEHIPI

KEHIPI Mini IR Sensor Switch Controller DC12V DC24V 3A Black

SKU CH-NMYQ-KETGY

Controls monochrome LED strips up to 3 A at 12 V or 24 V with an IR door sensor

  • MaterialMetal
  • IR sensor activates lights when cabinet door opens
  • DC12V and DC24V input with 3A maximum output
  • Compatible with PWM monochrome strips including 2835, 3528, 5050, 5630, 5730, 3014
  • Adhesive tape included for quick indoor mounting
  • 5mm DC plug with 2.1 to 2.5mm centre pin

Compact IR Door Sensor for PWM LED Strips

This mini infrared switch activates single-colour PWM LED strips when a cabinet or drawer door opens and turns them off when the door closes. It is designed for installers and DIY users who want automatic lighting in furniture without wiring a mechanical switch.

DC 12 V to 24 V input with 3 A current limit

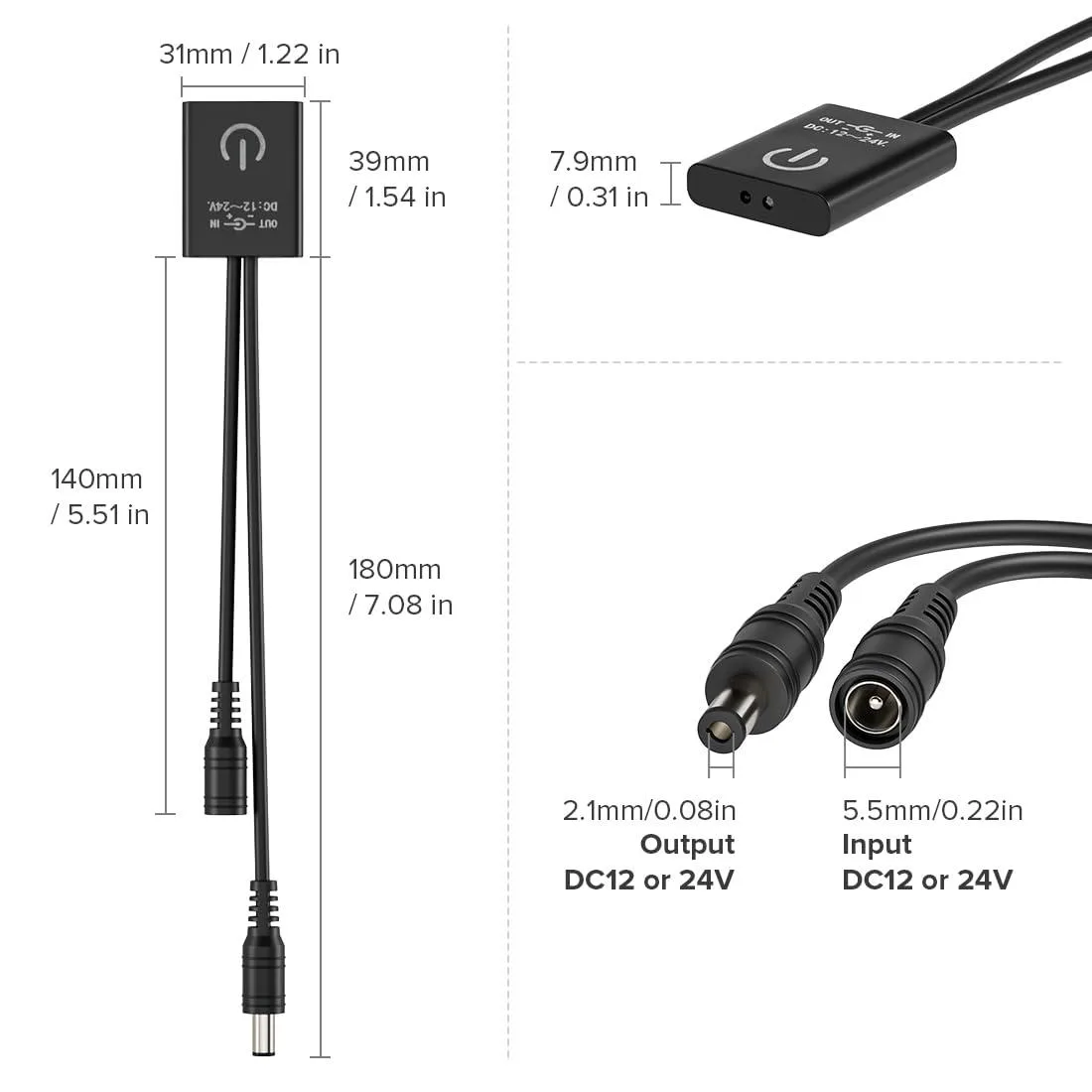

The controller accepts 12 V or 24 V DC and passes the same voltage to the load, delivering up to 36 W at 12 V or 72 W at 24 V. The DC barrel jack measures 5.5 mm outer diameter with a 2.1 mm to 2.5 mm inner pin, so the power supply must match both voltage and connector size.

Replaces manual switches

It upgrades installations that currently rely on a hand-operated toggle or a passive infrared detector by fitting inside shallow cabinets where a PIR module would not sit flush. The jump is worth it when the door swing gives a clear line of sight to the IR beam and the load stays within the 3 A rating.

Highlights

  • IR sensor activates lights when cabinet door opens
  • DC12V and DC24V input with 3A maximum output
  • Compatible with PWM monochrome strips including 2835, 3528, 5050, 5630, 5730, 3014
  • Adhesive tape included for quick indoor mounting
  • 5mm DC plug with 2.1 to 2.5mm centre pin

Specifications

BrandBTF-LIGHTING
MaterialMetal

Questions about this item

Which power-supply voltage should I pick for this IR sensor switch?

Choose a 12 V or 24 V DC supply that matches your LED strip; the switch passes the input voltage straight through to the output.

What does the 3 A rating mean for my LED strip?

At 12 V the switch handles up to 36 W of PWM monochrome strip, and at 24 V up to 72 W, provided your power supply can deliver the same current.

What connector standard does the DC plug use?

The plug has a 5.5 mm outer diameter and a 2.1–2.5 mm inner diameter, matching the common barrel-jack size used on many 12 V and 24 V LED strips.
