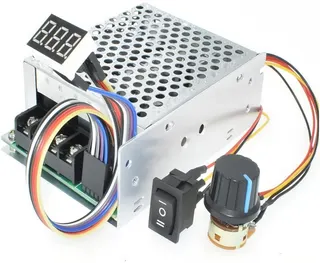

Rectangular copper circuit board with digital display and rotary knob, terminal screws on edges

KEHIPI

KEHIPI 10-55V 60A PWM DC Brushed Motor Speed Controller Switch Control

SKU CH-AFHV-T63QG

PWM controller drives brushed DC motors at 10–55 V with 60 A peak current and digital 0–100 % speed readout

  • Materialcopper
  • Wide 10-55V input fits 12V 24V 36V 48V systems
  • Digital display shows 0-100% speed percentage for accurate adjustment
  • Stepless knob with forward brake reverse switch enables full control
  • 60A peak 40A continuous current handles high power brushed motors

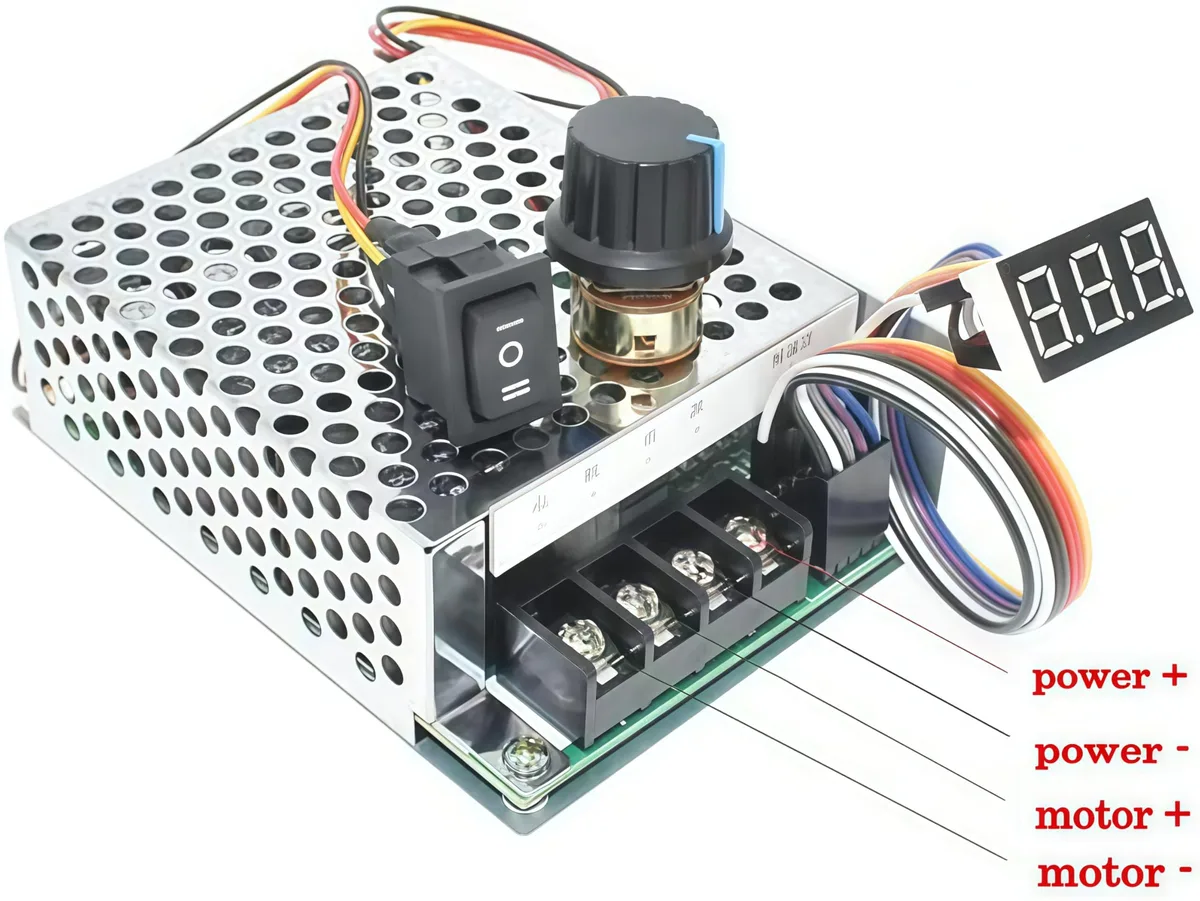

  • Compact 100mm x 76mm board with terminal knobs simplifies wiring

KEHIPI 10-55V 60A PWM DC Motor Controller

This new KEHIPI controller regulates brushed DC motors across a 10 to 55 volt input range with a 60 amp peak and 40 amp continuous current rating. It features a digital display showing motor speed percentage from 0 to 100 percent and a stepless potentiometer knob for precise adjustment. A forward-brake-reverse switch provides directional control for compatible applications.

Input voltage must match motor rated voltage

The unit only operates when the supply voltage equals the motor's rated voltage, such as 12V input for a 12V motor or 36V input for a 36V motor. The power source must also exceed 1.5 times the motor's rated power. Incorrect voltage connection or mismatched supply will prevent operation or damage the controller.

Suits brushed motor speed regulation only

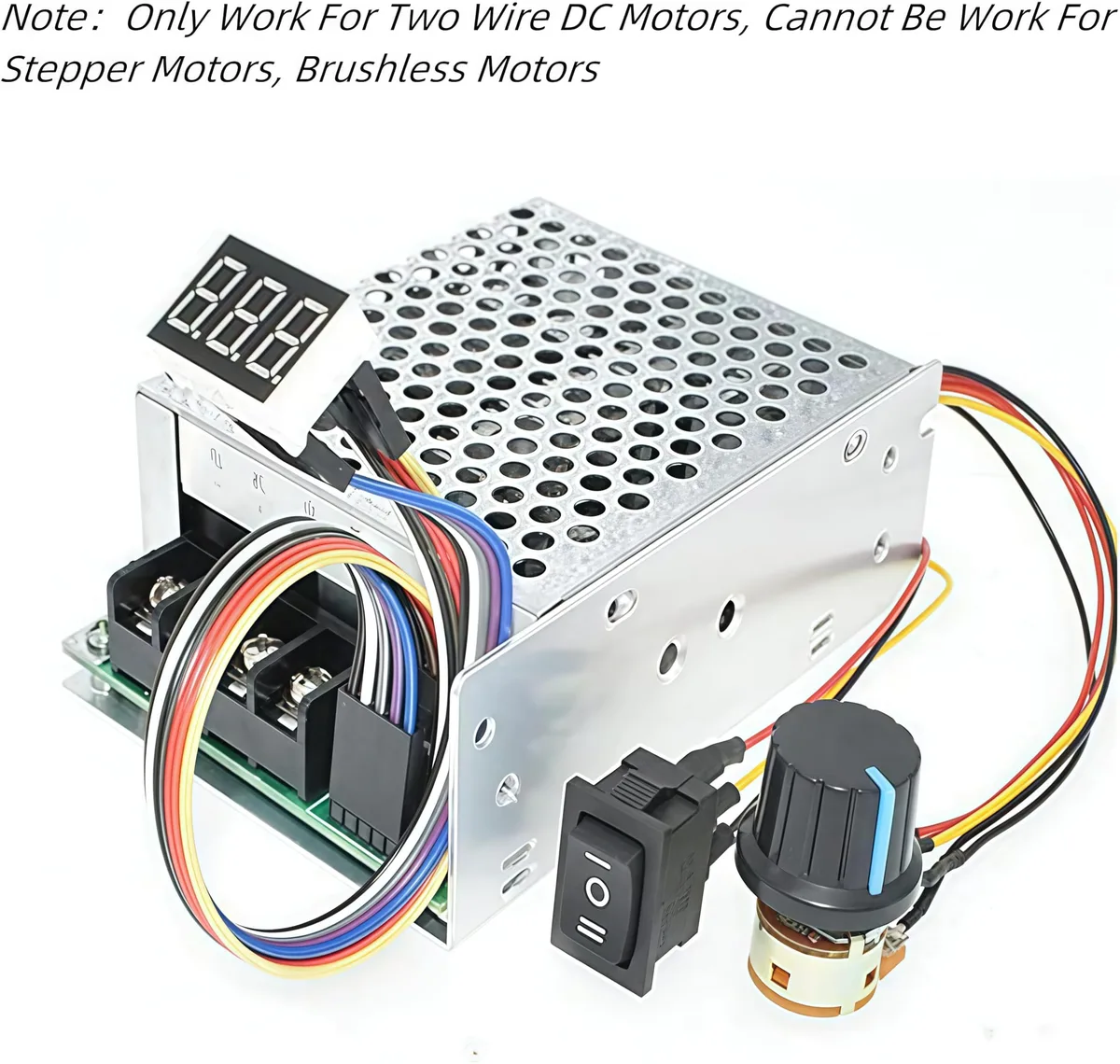

This controller is built for DC brushed motors in uses like power wheels or small machinery where variable speed and direction are needed. It cannot drive brushless or stepper motors. Buyers needing brushless motor control or a controller without forward-reverse switching should look at other options.

Highlights

  • Wide 10-55V input fits 12V 24V 36V 48V systems
  • Digital display shows 0-100% speed percentage for accurate adjustment
  • Stepless knob with forward brake reverse switch enables full control
  • 60A peak 40A continuous current handles high power brushed motors
  • Compact 100mm x 76mm board with terminal knobs simplifies wiring

Specifications

BrandTKXEC
Materialcopper

Questions about this item

What does the 60 A peak rating mean when the controller is running a motor?

The controller can deliver up to 60 A for short bursts and 40 A continuously, so the motor can draw peak current during acceleration without tripping the unit.

How does the 15 kHz PWM frequency affect speed control in practice?

At 15 kHz the PWM switching is above audible range, giving smooth stepless speed adjustment from 0 to 100 % without motor whine.

Will the 110 mm × 78 mm × 38 mm enclosure fit inside a standard power-wheels chassis?

The board measures 100 mm × 76 mm × 28 mm and the shell adds a small margin; check your chassis cavity against those dimensions before mounting.
