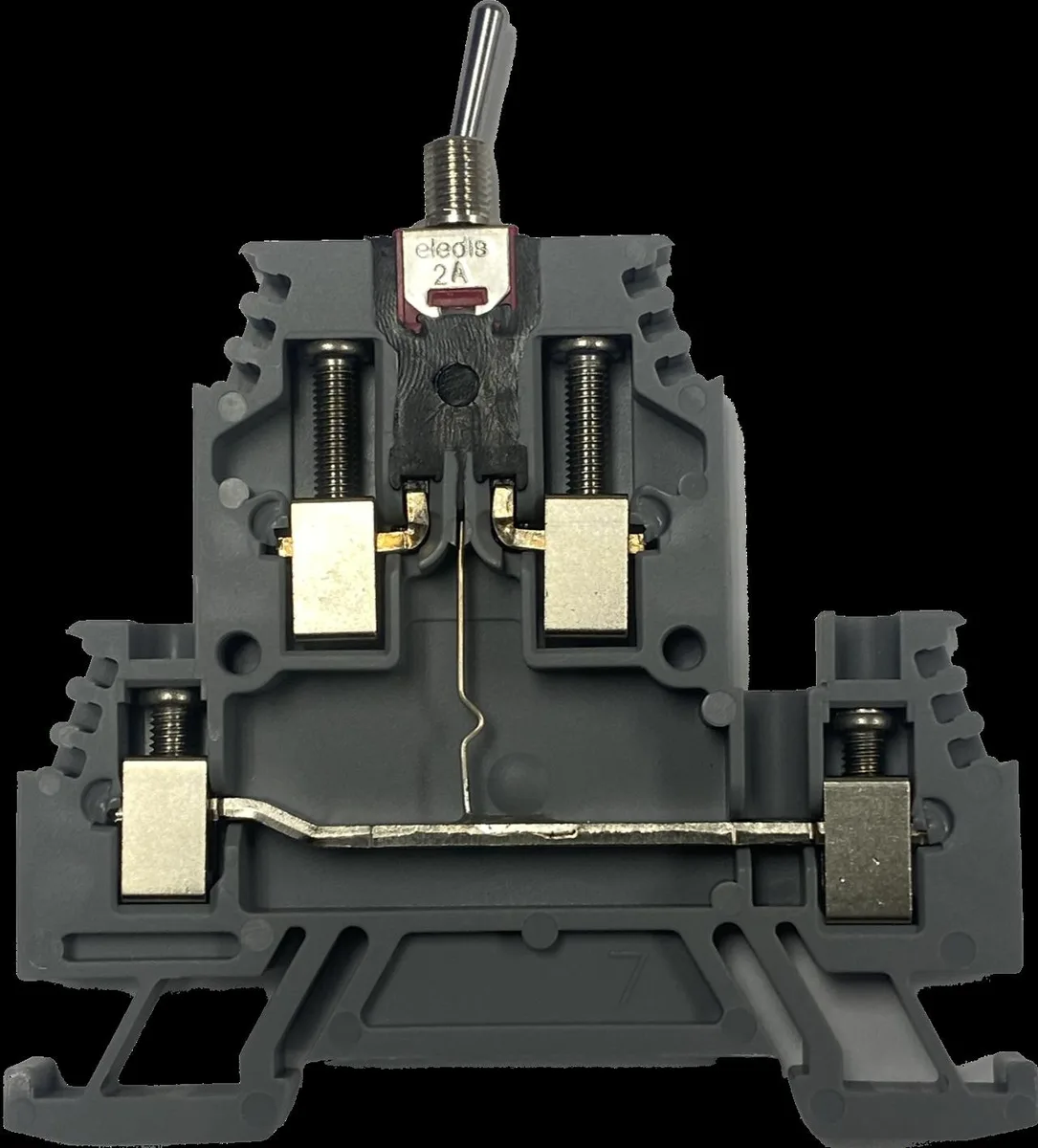

Gray plastic toggle switch terminal block for 35 mm DIN rail

Electrotech Sales Group, LLC

Electrotech Sales Group 2-Position Toggle Switch Terminal Block DIN Rail 35mm Gray No 30892 End Cover

SKU CH-W0E1-EJDEV

A 6 mm wide DIN-rail toggle switch block with ON-ON function, two-hand activation and IP65 emergency stop, UL file E45033

  • Mounting StyleUniversal
  • MaterialPlastic
  • Color/FinishGray
  • DutyIndustrial
  • Two-hand activation reduces accidental start-up
  • Emergency stop push-button cuts power immediately
  • IP65 rating protects against low-pressure washdowns
  • Self-monitoring safety relay shuts system down on any failure
  • UL approved File E45033 for 35 mm DIN rail mounting

Two-Hand Activation Safety Switch

This 6 mm wide terminal toggle switch mounts on a 35 mm DIN rail and provides an ON-ON function for industrial control panels. It requires two-hand operation to reduce the chance of accidental equipment start-up and can be stacked with additional blocks. UL approval is documented under File E45033. The gray plastic housing carries an IP65 rating for low-pressure washdown protection.

IP65 Washdown Rating And Low Voltage Relay

The switch body is sealed to IP65 so it withstands routine washdown environments without ingress. An integrated emergency stop push-button cuts power immediately when pressed. The associated safety relay operates on 24 V DC and can also run on 120 V AC when a separate power supply is used. Self-monitoring circuitry shuts the system down if any component fails.

Sustained Operation With Self-Monitoring

Under continuous duty the safety relay monitors both push-buttons and requires them to be actuated within 0.5 seconds of each other to maintain the circuit. If a fault is detected the self-monitoring logic locks out the entire system until the issue is repaired. This behaviour prevents unintended restarts during extended production runs. The end cover for the assembly is ordered separately as part number 30892.

Highlights

  • Two-hand activation reduces accidental start-up
  • Emergency stop push-button cuts power immediately
  • IP65 rating protects against low-pressure washdowns
  • Self-monitoring safety relay shuts system down on any failure
  • UL approved File E45033 for 35 mm DIN rail mounting

Specifications

Mounting StyleUniversal
MaterialPlastic
Color/FinishGray
DutyIndustrial

Questions about this item

How do I mount this terminal block on a 35 mm DIN rail and what step is often missed?

Snap the 6 mm wide block onto the rail; the separate 30892 end cover must be fitted to the open side to complete the assembly.

Which component will need replacement first in an industrial environment?

The emergency stop push-button rated IP65 is the wear item; the safety relay's self-monitoring circuitry will shut the system down if the relay itself fails.

What timing limit stops the safety relay from activating under sustained use?

The two activation buttons must be pressed within 0.5 seconds of each other; if the interval is longer the relay will not energise.
