Numatics 081RD100J000000 Sandwich Dual Air Regulator

Sandwich Dual Air Regulator

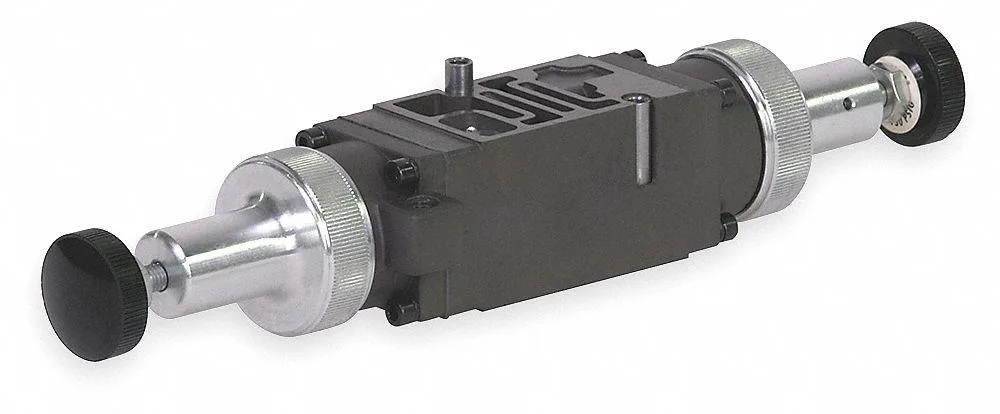

The Numatics 081RD100J000000 is a sandwich-style dual air regulator built for compressed-air systems that require two independently controlled pressure zones from a single supply line. It handles a maximum operating pressure of 150 psi and regulates output between 10 and 130 psi with a maximum flow rate of 46 cfm. An integrated gauge provides local pressure indication for each regulated outlet. The unit operates reliably from -10 to 115 degrees Fahrenheit.

Ideal for split-pressure pneumatic circuits

This regulator suits machine builders and maintenance teams who need to feed two different working pressures from one compressor branch, such as a high-force clamp and a low-force ejector on the same fixture. It is not suited for applications requiring three or more distinct regulated pressures, nor for systems that exceed the 150 psi supply limit or the 46 cfm flow capacity. Environments hotter than 115 degrees Fahrenheit or colder than -10 degrees Fahrenheit fall outside its rated range.

Knob-adjusted Mark 8 series valve

The Mark 8 series body mounts directly between a valve manifold and its sub-base using the sandwich pattern, eliminating separate piping for the second regulated line. A single air inlet feeds both regulation sections, each adjusted by its own knob, which reduces plumbing components and panel space. The compact depth of 1 1/4 inches allows installation in tight cabinets, while the included gauges remove the need for external pressure test ports during setup and troubleshooting.
