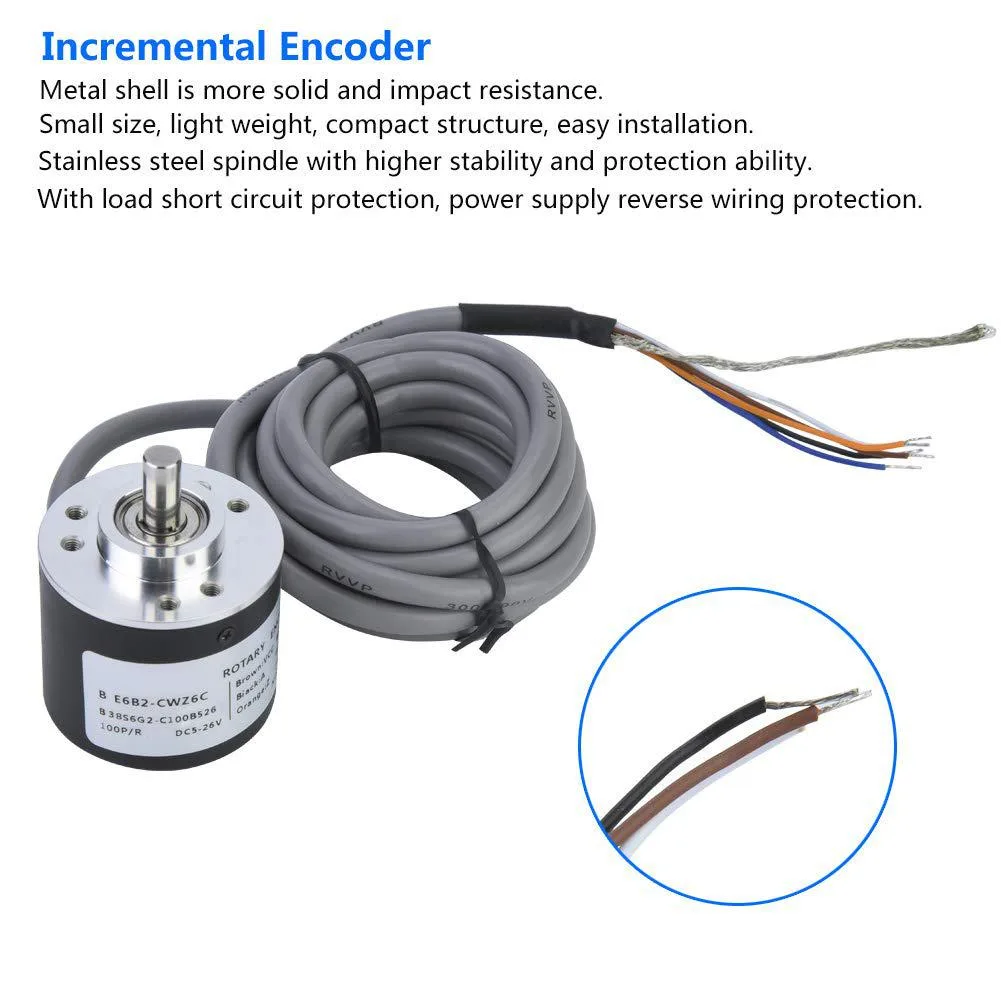

Small cylindrical encoder with metal body and 2m cable

myVolts

myVolts E6B2-CWZ6C 38mm 100P/R incremental encoder line protection

SKU CH-D99C-V2A7E MPN E6B2-CWZ6C

A 38mm incremental encoder providing 100 pulses per revolution with short-circuit and reverse-wiring protection

  • TypeAT
  • 38 mm diameter fits tight machine spaces

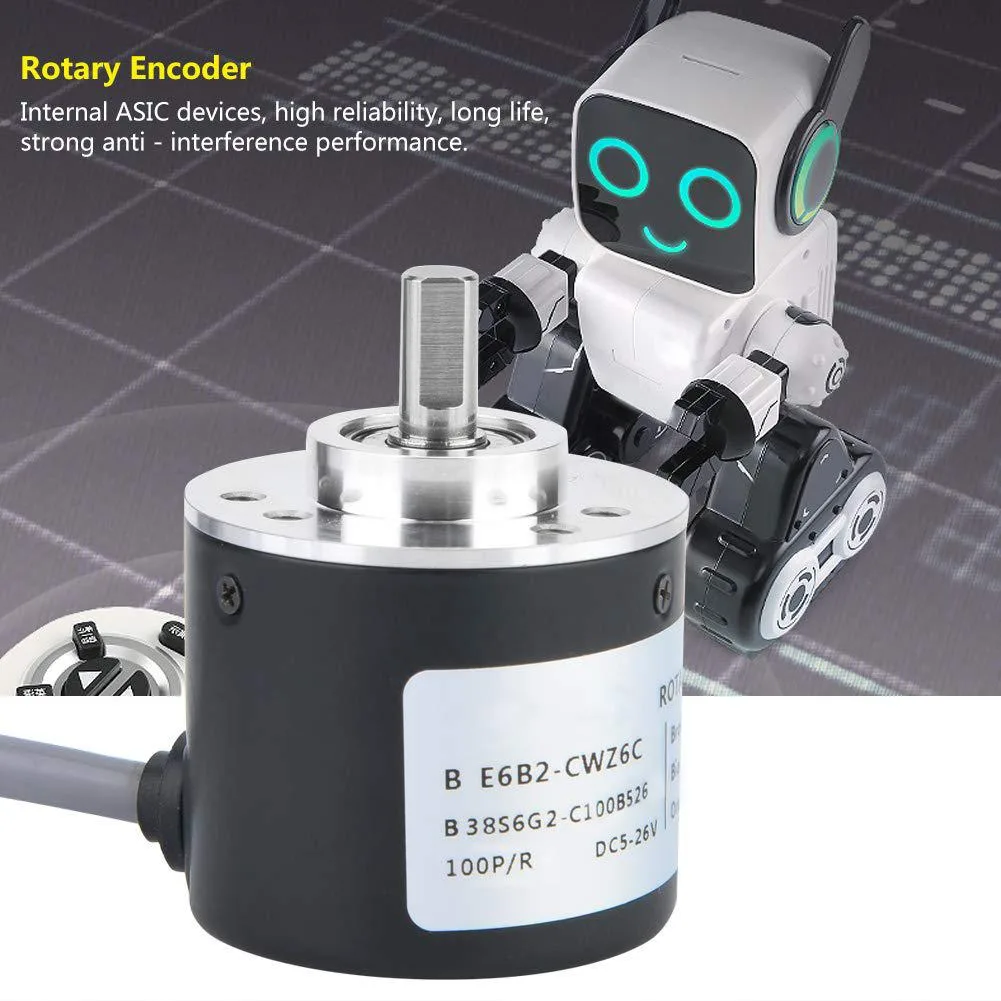

  • Internal ASIC gives strong anti‑interference and long life
  • Stainless spindle plus metal shell resists shock and vibration
  • 2 m cable with open‑collector output works on DC 5‑26 V supply
  • Built‑in short‑circuit and reverse‑wiring protection guards the encoder

38mm 100P/R Incremental Encoder

The myVolts E6B2-CWZ6C is a compact incremental encoder built for motion-control systems that need precise position feedback. Its 38mm metal housing and stainless steel spindle deliver mechanical durability in industrial environments. Internal ASIC circuitry provides strong anti-interference performance across a DC5-26V supply range. The 2m cable simplifies wiring in cabinets or on machine frames.

Suits CNC and automation builds needing 100 pulses

Engineers specifying a 100P/R resolution for velocity or position loops will match this encoder directly. The open-collector output works with common PLC and drive inputs without extra conditioning. Buyers who require higher pulse counts per turn or a different shaft diameter should select another model from the series. The fixed 100P/R option cannot be reconfigured in the field.

100P/R resolution fixes the feedback granularity

The encoder ships preset to 100 pulses per revolution, which determines the smallest measurable angular step in the control loop. This resolution suits applications where 100 counts per turn meet accuracy and speed requirements. Systems demanding finer granularity must use a different resolution variant from the available range. No other specification overrides this fundamental choice.

Highlights

  • 38 mm diameter fits tight machine spaces
  • Internal ASIC gives strong anti‑interference and long life
  • Stainless spindle plus metal shell resists shock and vibration
  • 2 m cable with open‑collector output works on DC 5‑26 V supply
  • Built‑in short‑circuit and reverse‑wiring protection guards the encoder

Specifications

TypeAT

Questions about this item

What mounting clearance does the 38 mm encoder body need?

The encoder has a 38 mm outer diameter and a 6 mm thrust shaft, so allow at least that diameter plus cable bend radius for the 2 m lead.

Which wiring step is most often missed when connecting the brown and blue power leads?

Confirm the supply is between DC 5 V and 26 V before connecting brown to positive and blue to 0 V; reverse polarity triggers the built-in protection.

When should the encoder be inspected or replaced given its 30 N radial and 20 N thrust load ratings?

Inspect the stainless spindle and metal shell if vibration increases or if loads approach the 30 N radial or 20 N thrust limits; replace if bearing play or signal jitter appears.
