Miuputake STN625-White HVAC control 24V white 5 pack
A five-pack of 24 V programmable thermostats for single-stage heat-pump or conventional systems, each with a backlit LCD and 30-minute DIY install
- TypeThermostat,Two Screws and anchors,Installation manual and Op
- Size/Dimensions4.72 in x 3.86 in x 0.98 in
- ColorWhite
- Voltage24 volts_of_alternating_current
- Mount TypeWall Mount
- Relay ContactDigital, 24 volts_of_alternating_current
- 7-day programmable schedule syncs comfort with your routine
- Large terminal blocks and universal sub-base enable 30-minute DIY install

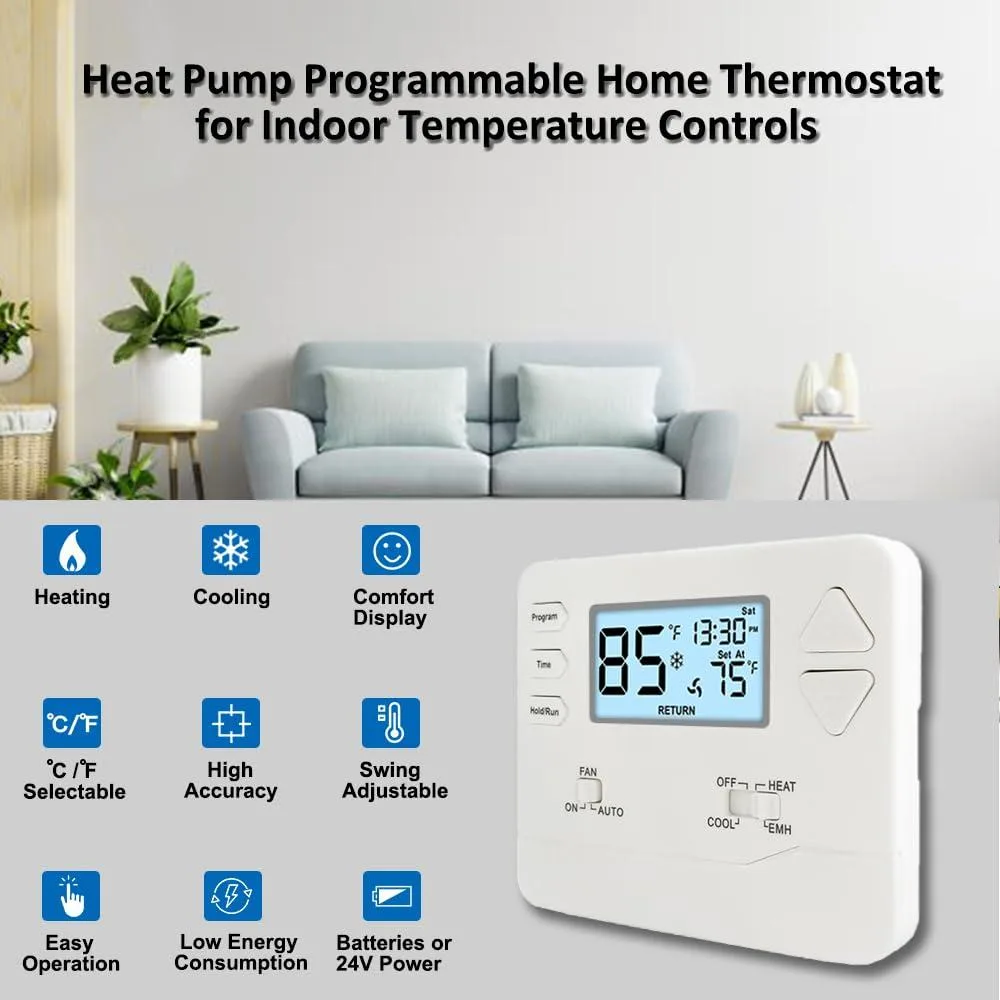

- White backlit LCD display and push-button controls simplify daily adjustments
- Adjustable temperature swing optimises energy use and extends system life
- 5-pack includes thermostats, screws, anchors, labels and manuals for multi-zone setup
Five-pack thermostat kit

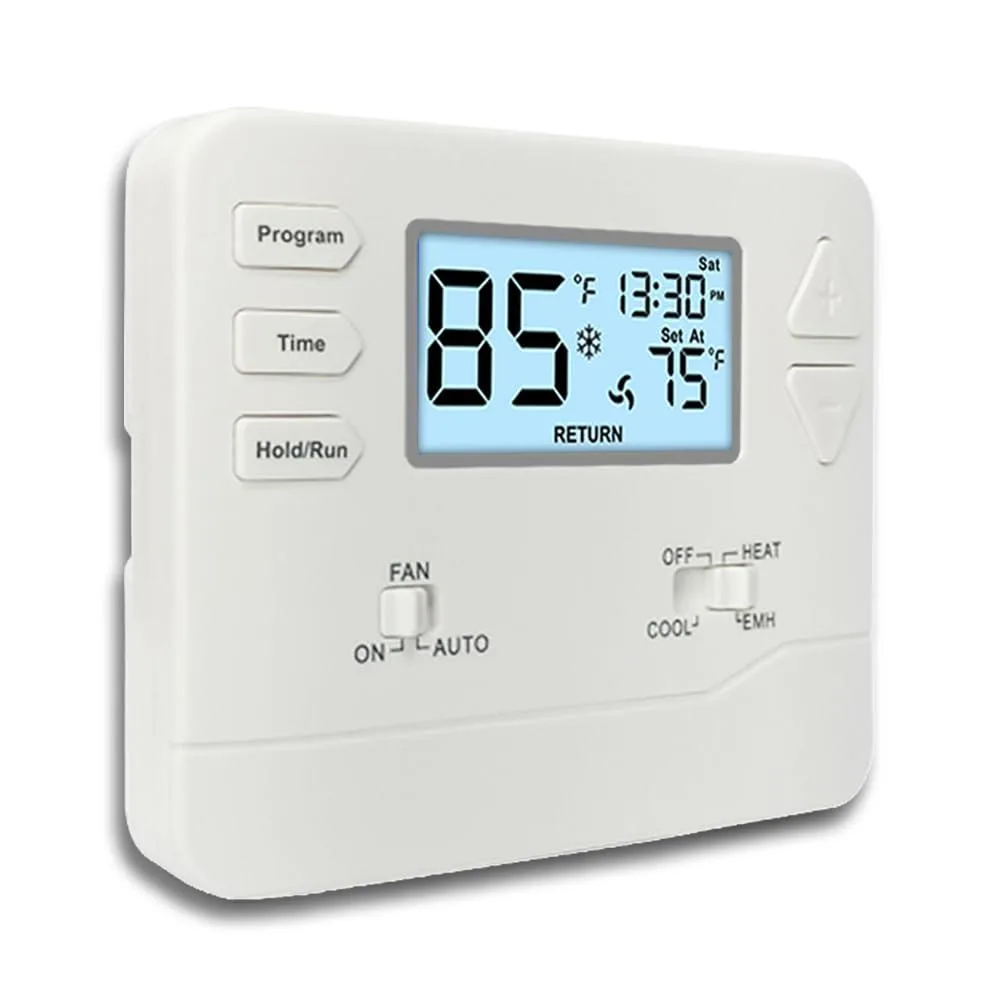

This pack contains five Miuputake STN625-White thermostats designed for 24 V AC heat-pump or single-stage conventional systems. Each unit supports two heat/one cool heat-pump operation or one heat/one cool conventional wiring. The white backlit LCD and push-button interface suit residential and light-commercial installations.
Sustained operation
The digital 24 V relay contacts maintain consistent switching over long heating or cooling cycles without mechanical bounce. Factory pre-set 7-day and 5/1/1 programmes keep the schedule running continuously, while the adjustable temperature differential reduces short-cycling and extends equipment life. Front-load battery access allows uninterrupted power during routine maintenance.
24 V compatibility gate

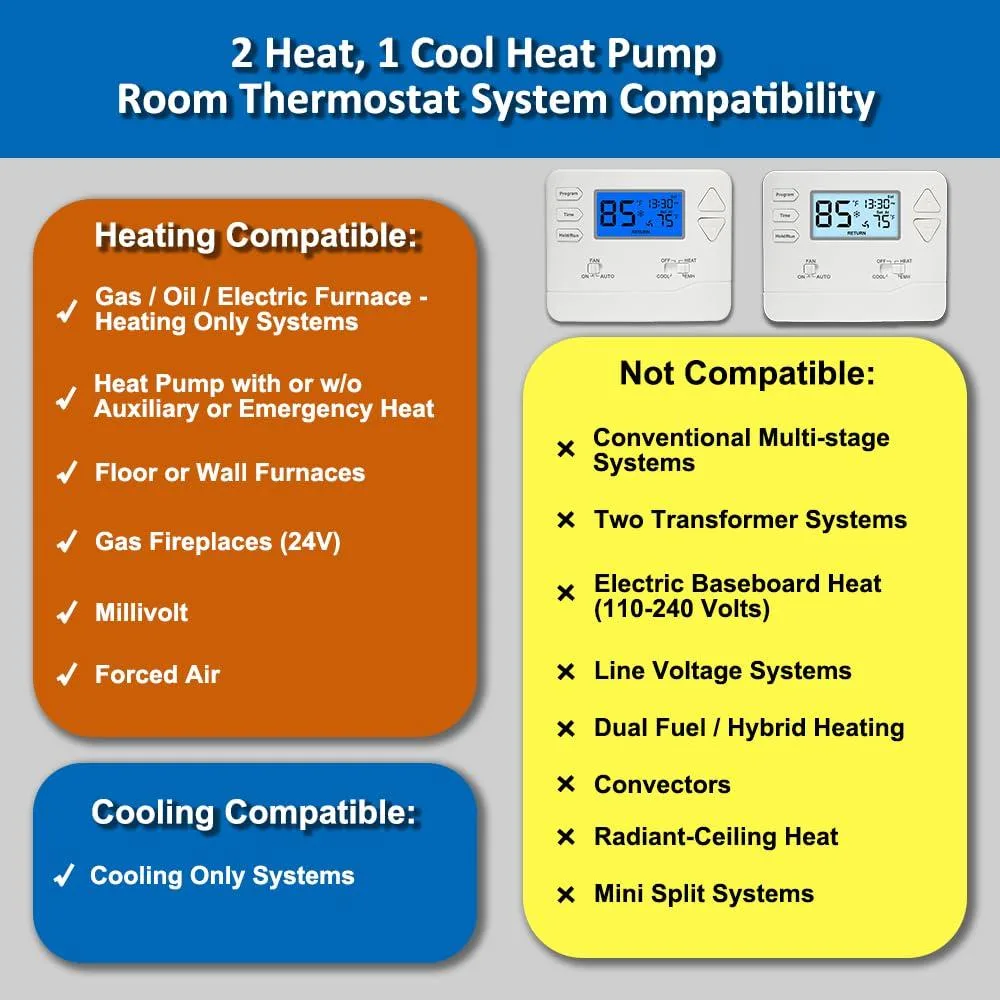

This thermostat only works with 24 V AC systems such as forced-air gas, oil or electric furnaces, heat pumps with or without auxiliary heat, millivolt gas fireplaces and hydronic radiant heat. It will not operate two-transformer, multi-stage conventional, dual-fuel, line-voltage, 12 V RV or electric baseboard systems rated 110–240 V.
Highlights
- 7-day programmable schedule syncs comfort with your routine
- Large terminal blocks and universal sub-base enable 30-minute DIY install
- White backlit LCD display and push-button controls simplify daily adjustments
- Adjustable temperature swing optimises energy use and extends system life
- 5-pack includes thermostats, screws, anchors, labels and manuals for multi-zone setup
Specifications
| Type | Thermostat,Two Screws and anchors,Installation manual and Operating manual,Cable label, 24V Heat Pump Thermostat, Push Button |
|---|---|
| Brand | Miuputake |
| Model | STN625-White |
| Size/Dimensions | 4.72 in x 3.86 in x 0.98 in |
| Color | White |
| Voltage | 24 volts_of_alternating_current |
| Mount Type | Wall Mount |
| Relay Contact | Digital, 24 volts_of_alternating_current |
| Item Count | 5 pack |
| Selling Unit | 5, Thermostat,Two Screws and anchors,Installation manual and Operating manual,Cable label |
| Features | Heating and Cooling Controls, 24V Heat Pump Thermostat, Miuputake |
Questions about this item
Does the STN625-White thermostat use much power or make noise while running 24/7?
The thermostat runs on 24 V AC and uses a digital relay contact, so it draws very little power and operates silently without fans or moving parts.
What existing wiring or system must I already have for this 5-pack to work?
You need a 24 V AC low-voltage system — heat pump single-stage (2 heat/1 cool) or conventional single-stage (1 heat/1 cool) — with a C wire or batteries for the backlight.
Will the STN625-White control my older gas furnace or millivolt fireplace?
Yes, it supports forced-air gas, oil or electric furnaces, hot-water steam or gravity radiant heat, and 24 V millivolt gas fireplaces.
