Mickey Technology
Mickey Technology Power Meter Plug White 1650W 120V 15A
Monitors electricity usage with a backlit LCD, measures power, energy, volts, amps, frequency and power factor, and cuts power automatically at 1650 W overload
- Dimensions?6.54 x 3.35 x 3.07 inches
- Weight?7.4 ounces
- FeaturesOverload Protection:Overload warning displayed on LCD, when
- Monitors real-time energy use to cut bills
- Bright backlit LCD readable in darkness at 45mm x 70mm
- Audible overload alert at 1650W with auto power cut
- Tracks volts, amps, hertz, power factor and cost per kWh
- Built-in 3.6V battery keeps data when unplugged
Home energy monitor for 120 V circuits
This plug-in meter measures power, energy, voltage, current, frequency, power factor and maximum power on North American 120 VAC, 60 Hz supplies. It accepts loads up to 15 A and 1650 W, making it suitable for household appliances, office equipment and generator output checks. A built-in 3.6 V rechargeable battery preserves cumulative kilowatt-hour and cost data when the unit is unplugged.
Measurement ceiling and overload behaviour
The display shows watts up to 9999 W, but the true measuring range stops at 1800 W; sustained loads above 1650 W trigger an audible alarm, show "OVERLOAD" on the LCD and automatically disconnect the circuit. Voltage is readable from 110 V to 130 V, current to 15.000 A and timing up to 9999 days. Electricity price can be set between 0.00 and 99.99 cost per kWh for running expense estimates.

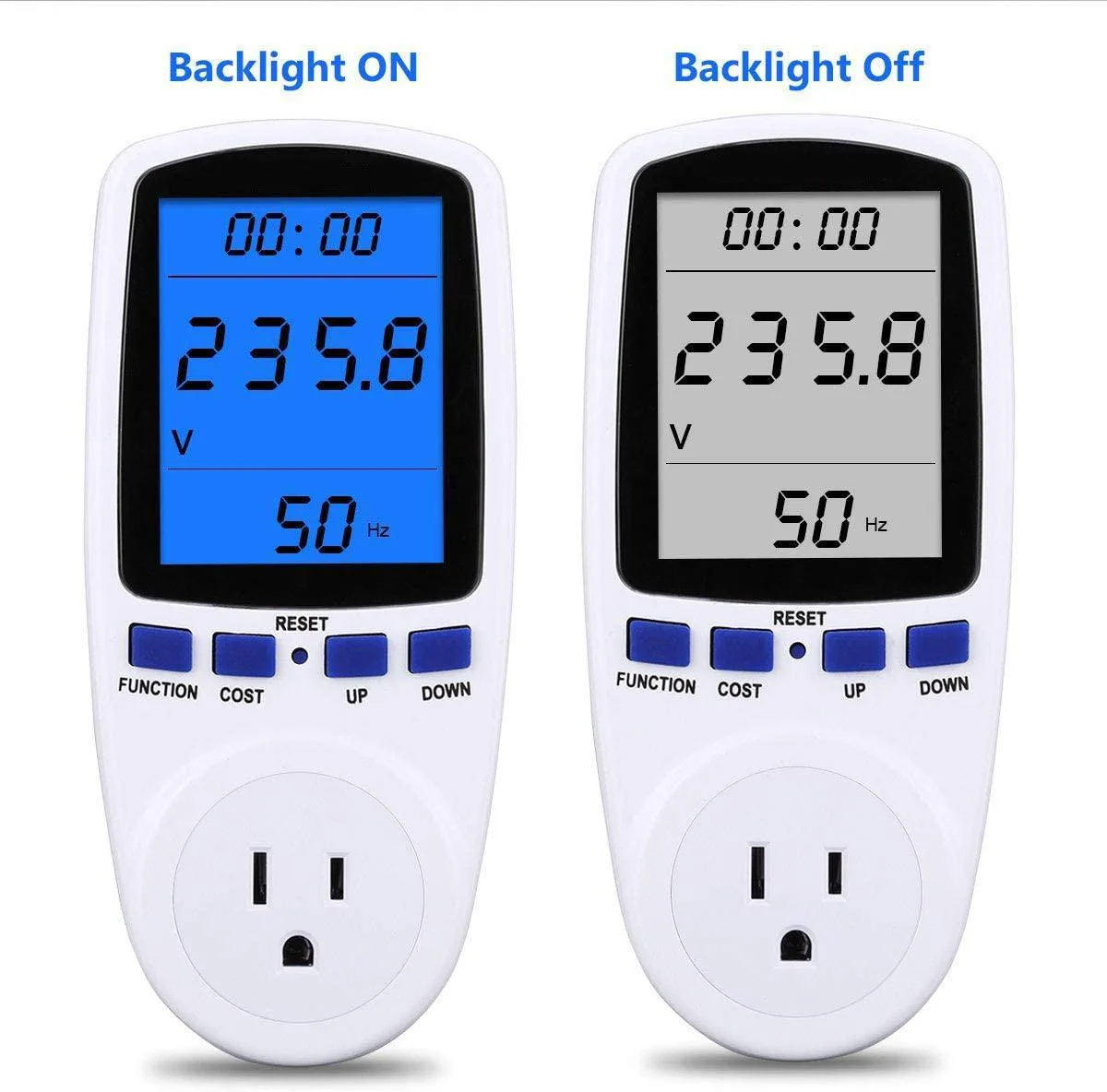

Backlit LCD and North American plug format
A 45 mm by 70 mm backlit LCD gives wide-angle visibility in darkness, while the unit draws only 0.5 W itself. The enclosure measures 6.54 by 3.35 by 3.07 inches and weighs 7.4 ounces, fitting standard NEMA 5-15 outlets without blocking the adjacent socket. Overload protection is hardware-based, so no software configuration is required for safe operation.
Highlights
- Monitors real-time energy use to cut bills
- Bright backlit LCD readable in darkness at 45mm x 70mm
- Audible overload alert at 1650W with auto power cut
- Tracks volts, amps, hertz, power factor and cost per kWh
- Built-in 3.6V battery keeps data when unplugged
Specifications
| Model | White |
|---|---|
| Dimensions | ?6.54 x 3.35 x 3.07 inches |
| Weight | ?7.4 ounces |
| Features | Overload Protection:Overload warning displayed on LCD, when the whole power exceeds the rated power 1650W of monitor, LCD will display "OVERLOAD" with booming noise to warn the user, and automatically disconnect the power. Upgraded Digital LCD Display: The power consumption monitor with a large clear backlit LCD display, full wide view clear visible, make it easy to read and record the data, especially in the darkness. Electricity Usage Monitor:With the help of this Power Meter Monitor, You can make certain how much your standby appliances cost, what the power factor is, whether the |
Questions about this item
What does the 1650W overload limit mean for my appliances?
If total draw exceeds 1650W the LCD shows "OVERLOAD" with an audible alarm and the meter automatically cuts power to protect the circuit.
What does the 120V 15A rating mean in daily use?
It matches standard US household outlets, so you can plug in any 120V device drawing up to 15A and the meter will measure volts, amps, watts, kWh, frequency and power factor.
How does the 60Hz frequency display cap what I can measure?
The meter is designed for 60Hz mains; it will show frequency from 0 to 9999Hz but accurate power readings are only specified for 60Hz operation.
