Meterk MKD-001 Mechanical Deadbolt Keypad Stainless Steel 304 Black
Mechanical keyless deadbolt in stainless steel 304 fits wood or metal doors 35-50 mm thick with a 4-8 digit code offering over 8000 combinations
- Size/Dimensions6.4 in x 6.09 in x 4.1 in
- Color/FinishBlack
- Compatibility/FitmentOut-Opening, Narrow Stile, Store Front Doors
- Power Requirementsfalse
- FeaturesWidely Use
- Item Count1 pack

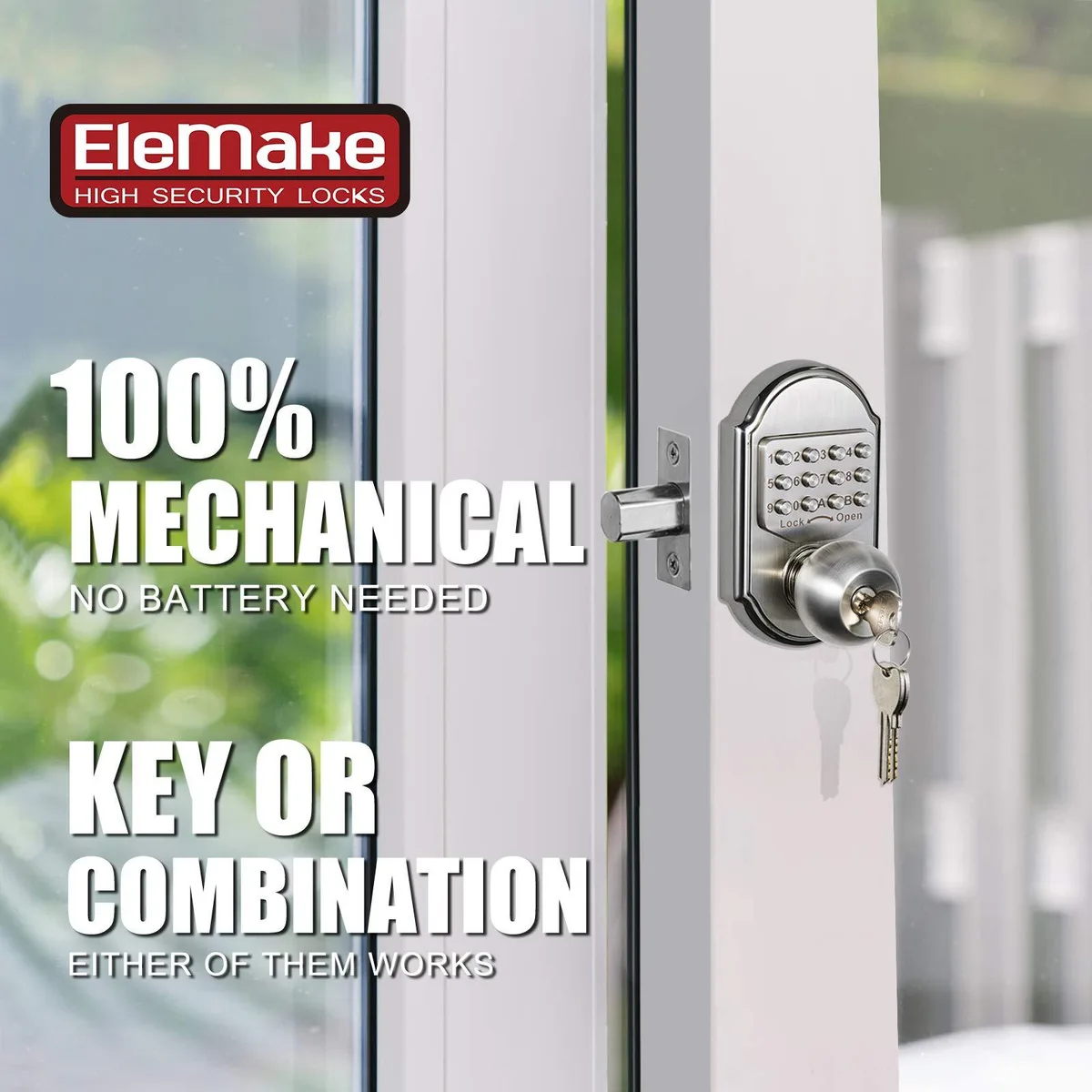

- 100% mechanical operation removes battery failure risk
- 304 stainless steel deadbolt resists prying and corrosion
- 4 to 8 digit code with over 8,000 combinations
- Fits 35 to 50 mm thick doors left or right handed
- Installs in about an hour on standard boreholes
Keyless mechanical deadbolt
The Meterk MKD-001 is a 100 percent mechanical deadbolt with a stainless steel 304 body and a wear-free keypad. It suits wood or metal doors 35 to 50 mm thick and works on left or right handed, inward or outward openings. No batteries or wiring are required, so there is no risk of power failure. A physical key override is included.
Borehole fit and hand adjustment
Installation takes about an hour on standard prepared doors with a maximum borehole diameter of 2-1/8 inches. The borehole cannot be less than 1-15/16 inches. A slight knob cutout adjustment may be needed for the lock width. On double bore doors the unit must occupy the upper bore. The combination can be set in any order.
Code capacity and security limits
The tumbler system allows a 4 to 8 digit code with no repeated digits, yielding over 8000 combinations. The lock does not automatically engage, so users must lock it manually each time. It resists prying but offers no remote access, audit trail or timed entry features. Buyers needing electronic logging or auto-locking should look elsewhere.
Highlights
- 100% mechanical operation removes battery failure risk
- 304 stainless steel deadbolt resists prying and corrosion
- 4 to 8 digit code with over 8,000 combinations
- Fits 35 to 50 mm thick doors left or right handed
- Installs in about an hour on standard boreholes
Specifications
| Size/Dimensions | 6.4 in x 6.09 in x 4.1 in |
|---|---|
| Color/Finish | Black |
| Compatibility/Fitment | Out-Opening, Narrow Stile, Store Front Doors |
| Power Requirements | false |
| Features | Widely Use |
| Brand | Meterk |
| Model | Hand Rivet Nut Setter Kit |
| Item Count | 1 pack |
| Part Number | MKD-001 |
Questions about this item
How can I confirm the MKD-001 deadbolt is operating correctly after installation?
Turn the keypad to enter your 4 to 8 digit code; the 304 stainless steel bolt should extend and retract smoothly. Test both the passcode and the supplied key from either side of the door to verify full mechanical function.
What components are included with the MKD-001 and what must I provide separately?
The pack contains the mechanical keypad deadbolt body, a strike plate, mounting hardware and two keys. You only need standard tools such as a drill with a 2-1/8 inch hole saw and a screwdriver; no batteries or wiring are required.
Which door thicknesses and borehole sizes does the MKD-001 support so I can choose the right fit?
The lock fits wood or metal doors 35 to 50 mm (1.38 to 1.96 inch) thick and requires a borehole no smaller than 1-15/16 inch up to a maximum of 2-1/8 inch diameter.
