Meterk K10ID Access Barrier 12V IP68 2000 Users 5 Fobs

Wired keypad for garage and gate systems

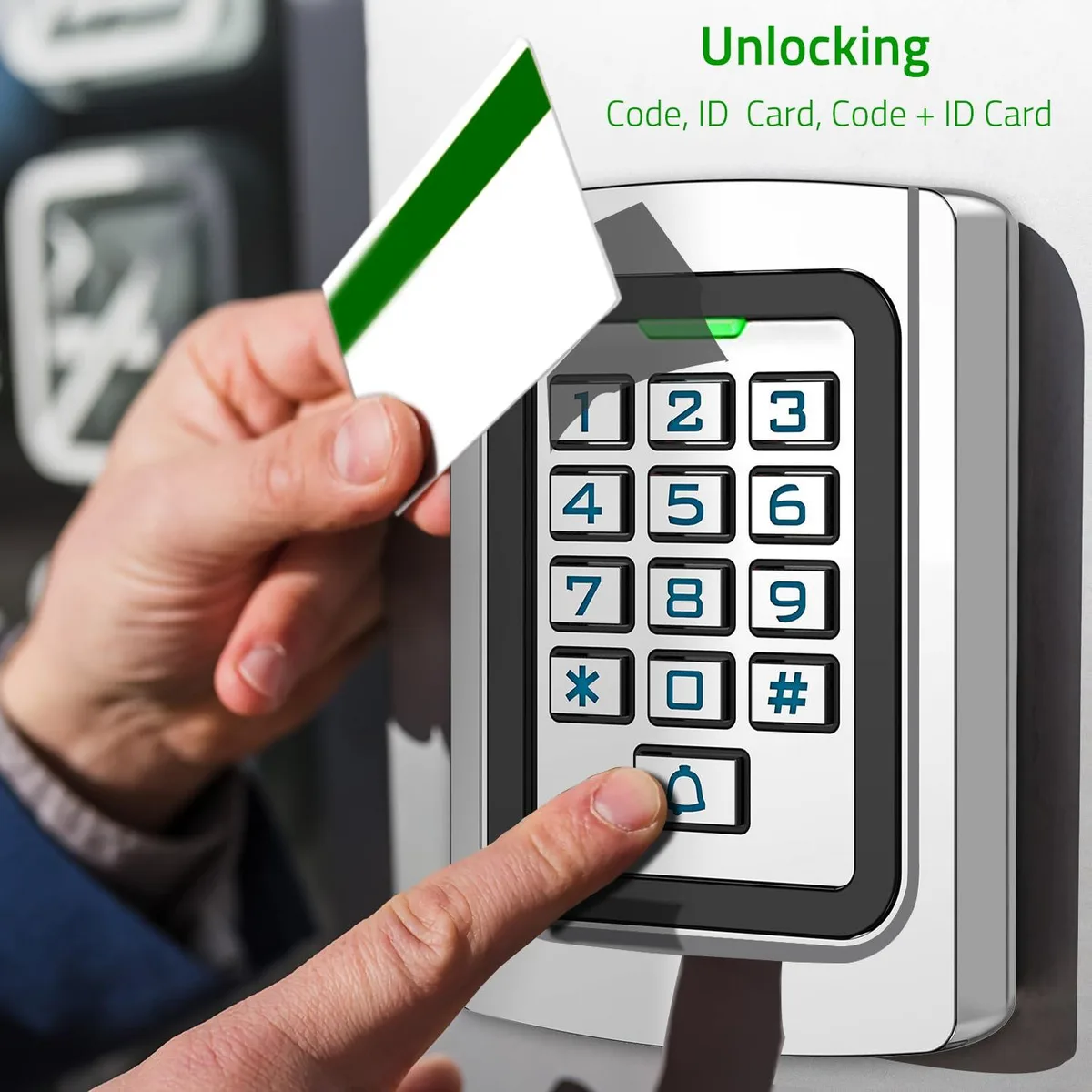

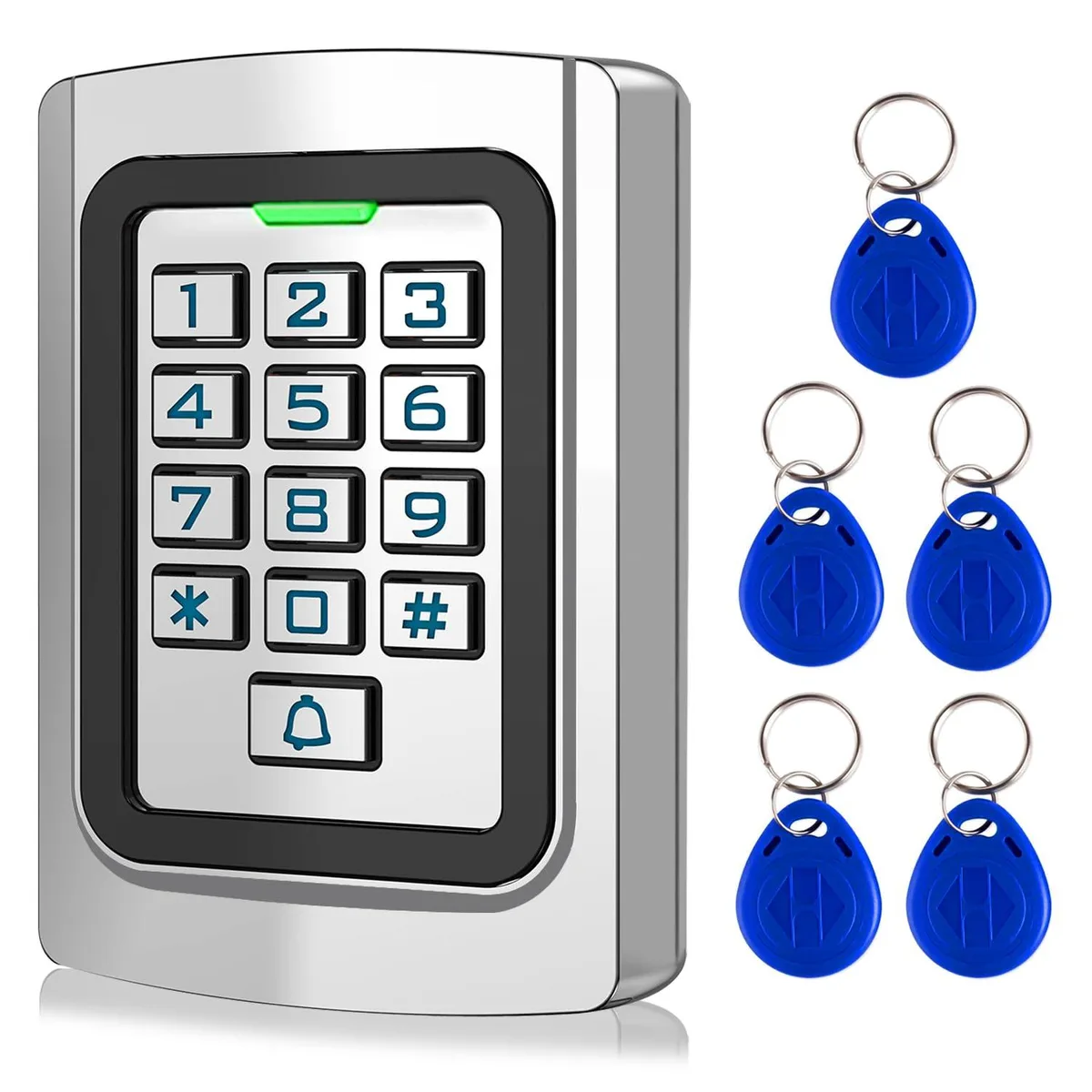

The Meterk K10ID is a 12V DC wired access control keypad designed for garage doors, gate openers, magnetic locks and access control systems that accept a dry contact signal. It supports up to 2000 users who can unlock via PIN code or the five included 125KHz RFID keyfobs. The zinc alloy housing with internal epoxy potting achieves an IP68 rating for permanent outdoor exposure. An LED backlight aids night-time entry.

Replaces separate remotes and keys

The unit consolidates remote transmitters and physical keys into a single wall-mounted device that stores all credentials locally without internet or extra software. The upgrade is worthwhile when a property needs managed access for many users, when existing openers accept a momentary dry contact input, and when a weatherproof keypad eliminates the hassle of lost or damaged handheld remotes. It does not support openers that rely on Wi-Fi, learn-button pairing, safety-beam protocols or rolling-code encryption.

Fits a 12V DC supply and dry-contact wiring

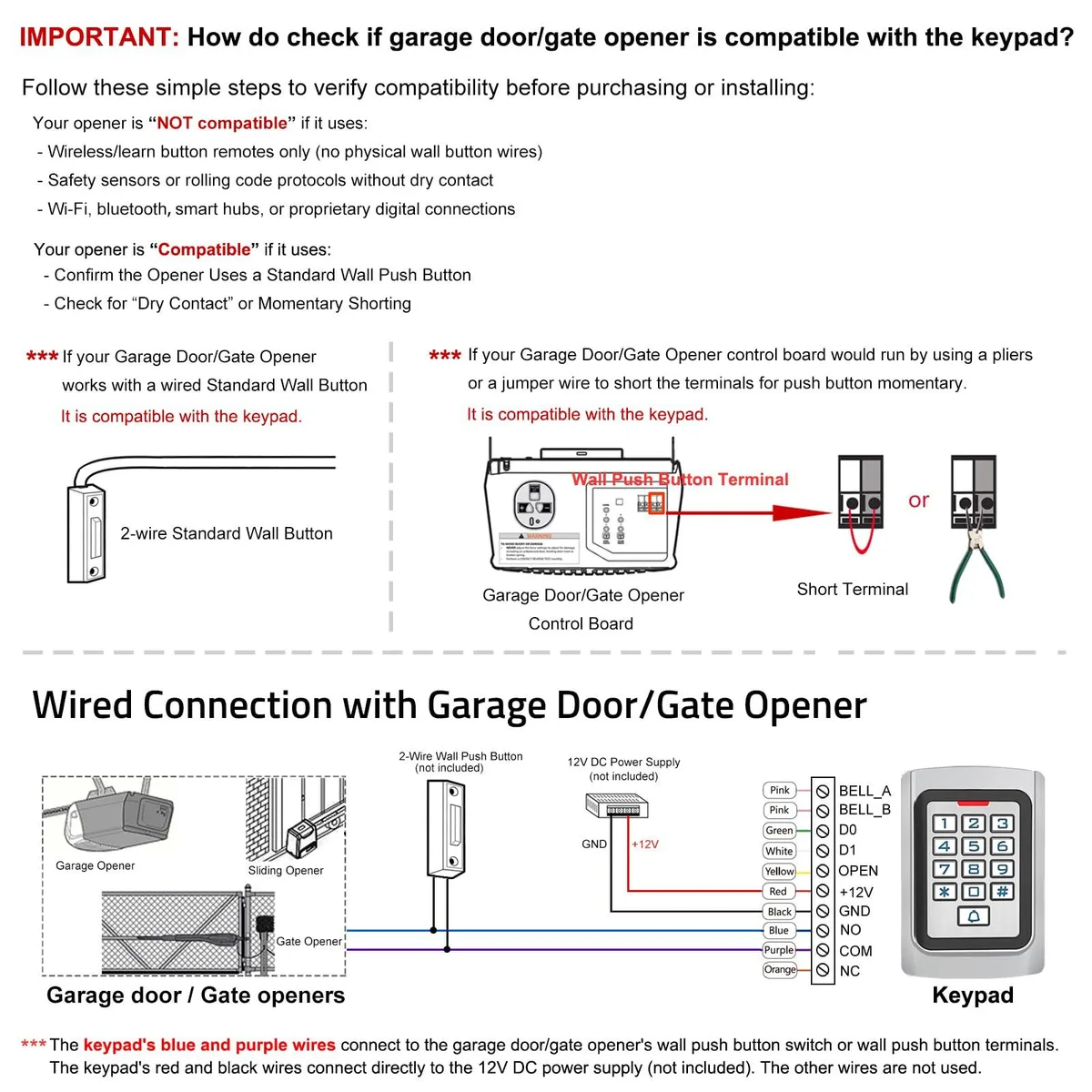

Installation requires a 12V DC power source and two low-voltage wires to the opener or lock control board using the provided wiring diagrams for either a garage gate operator or a magnetic strike. The 7.5 in by 4.9 in by 2.2 in footprint mounts on a flat surface with standard screws. The keypad frees up the need to distribute multiple remotes and removes the mechanical wear of traditional lock cylinders. Buyers whose opener uses a proprietary wireless protocol or encrypted rolling code cannot use this keypad.
