Rectangular silver solenoid relay with four copper studs and mounting bracket

Meterk 24063 24V 150A SPST 4 Terminal Solenoid Relay

SKU CH-1P92-XGAY6

24 V SPST solenoid relay rated at 150 A continuous with 200 A peak, sealed nickel-plated housing and 5/16‑24 studs for golf carts, winches and marine use

  • TypeRelays
  • Compatibility/FitmentOut-Opening, Narrow Stile, Store Front Doors
  • FeaturesWidely Use
  • Parts1 Year
  • Labor1 Year
  • 24 VDC SPST relay handles 150 A continuous current
  • Sealed nickel-plated housing resists dust, water and corrosion
  • 200 A transient peak for short-duration heavy loads

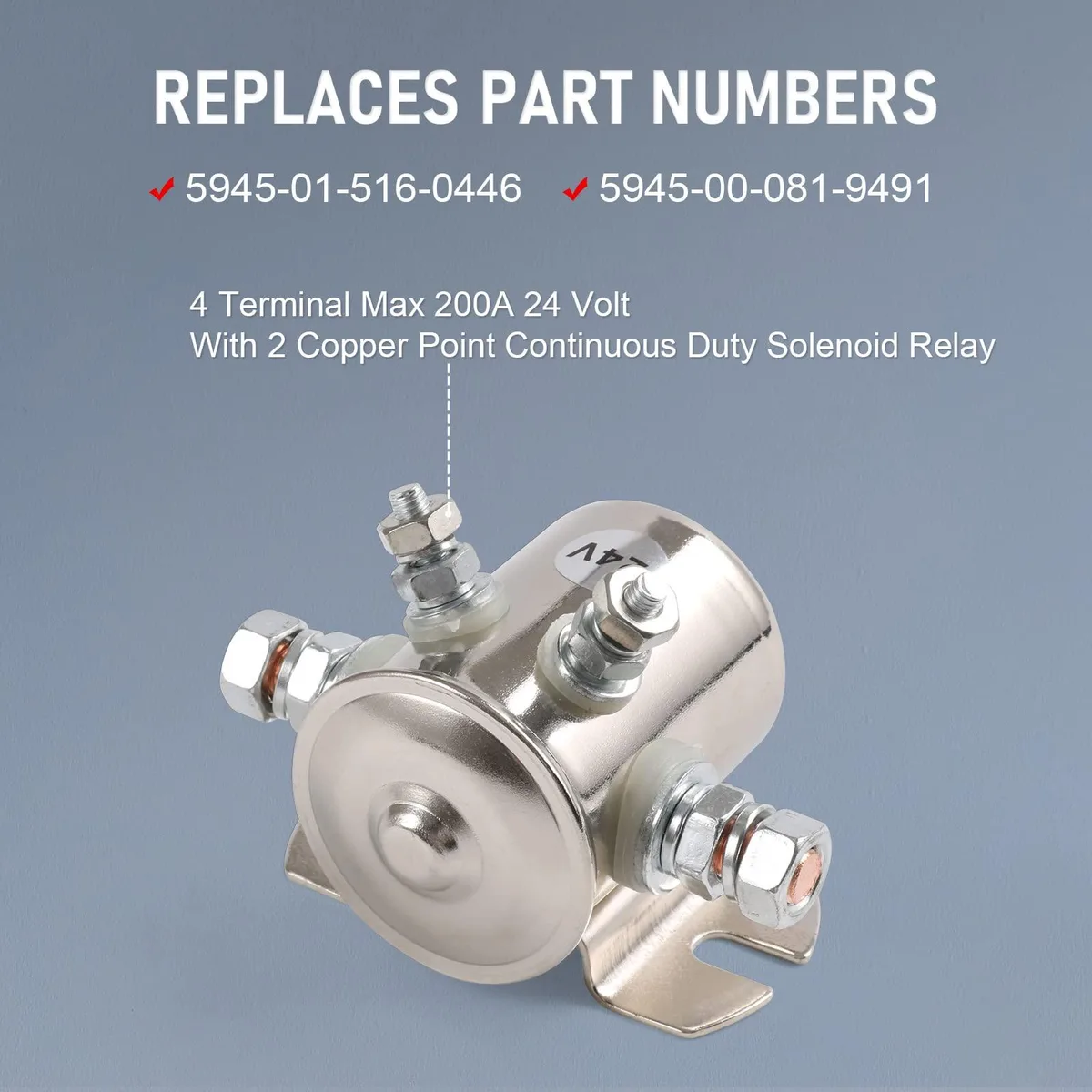

  • Replaces military part numbers 5945-01-516-0446 and 5945-00-081-9491
  • 16 Ω coil with 180-grade copper wire ensures reliable actuation

24V 150A SPST Solenoid Relay

The Meterk 24063 is a four-terminal continuous-duty solenoid relay rated for 24VDC systems. It handles a rated current of 150A and a maximum transient flash current of 200A. The unit suits golf carts, winches, marine craft, military vehicles, hydraulic control units and factory machines requiring high-current switching.

Sealed nickel-plated housing with copper studs

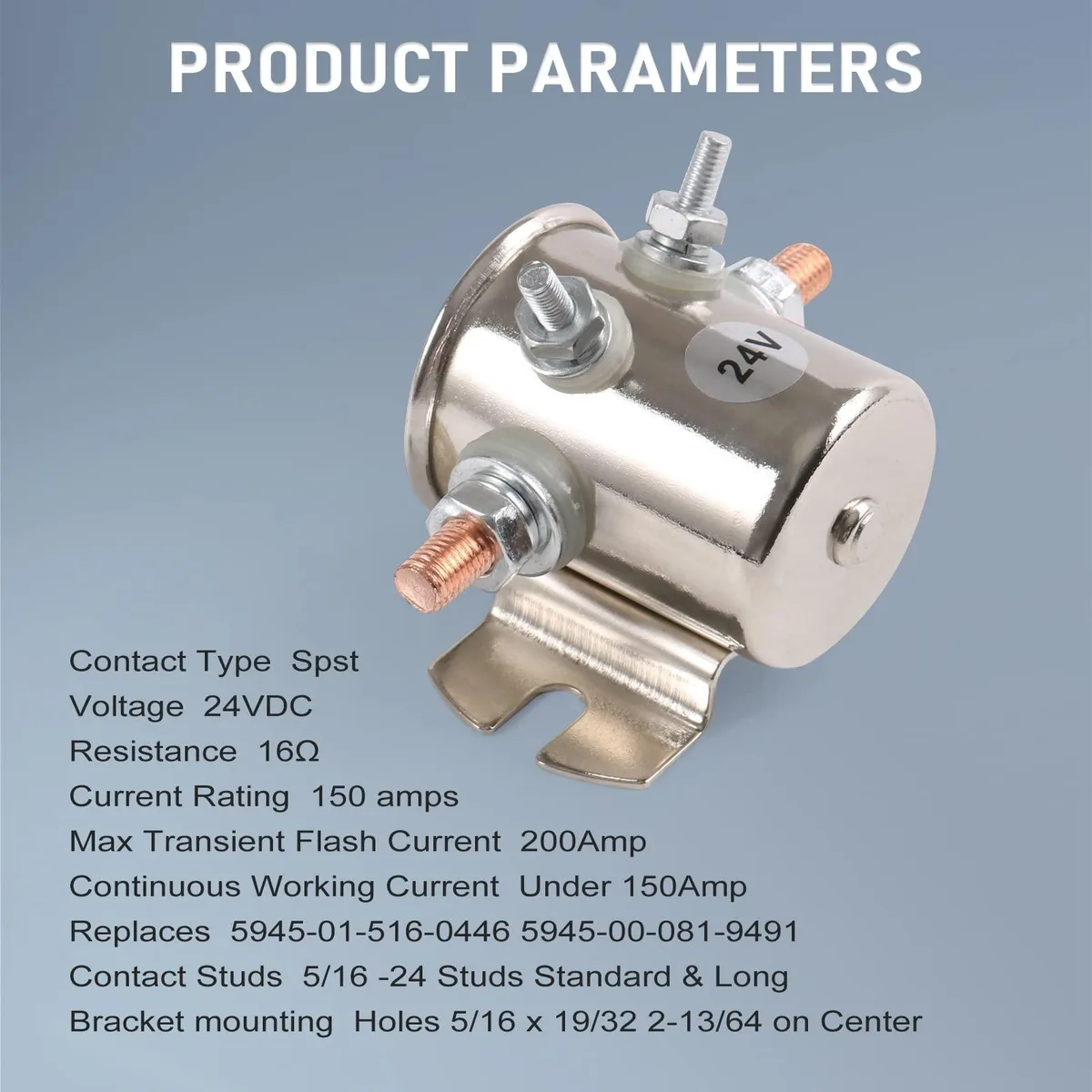

The relay features a nickel-plated outer layer and potted coil interior that resists water, dust, sand and corrosion. Two copper 5/16‑24 studs provide the main power contacts. Mounting holes measure 5/16 x 19/32 with a 2‑13/64 centre spacing. Coil resistance is 16Ω using 180 copper wire.

Check voltage, duty cycle and replacement numbers

Verify the system runs on 24VDC and that the application tolerates the noted duty limit: continuous operation at 150A requires a break, otherwise the unit can overheat. Typical working current is 80A with a 10‑second on, 30‑minute off cycle. Confirm the part replaces 5945‑01‑516‑0446, 5945‑00‑081‑9491 or 0662565200754 before ordering.

Highlights

  • 24 VDC SPST relay handles 150 A continuous current
  • Sealed nickel-plated housing resists dust, water and corrosion
  • 200 A transient peak for short-duration heavy loads
  • Replaces military part numbers 5945-01-516-0446 and 5945-00-081-9491
  • 16 Ω coil with 180-grade copper wire ensures reliable actuation

Specifications

TypeRelays
Compatibility/FitmentOut-Opening, Narrow Stile, Store Front Doors
BrandMeterk
ModelHand Rivet Nut Setter Kit
FeaturesWidely Use
Parts1 Year
Labor1 Year
Part Number24063

Questions about this item

How can I verify the solenoid is operating correctly after installation?

Apply 24 VDC to the coil terminals and listen for a firm click; then measure continuity across the two 5/16-24 contact studs — they should show a closed circuit while the coil is energised and open when power is removed.

What comes in the box and what must I supply separately?

The package contains the 24063 solenoid with nickel-plated housing, potted coil and two 5/16-24 copper contact studs; you must provide 24 VDC power wiring, suitable ring terminals for the studs and mounting hardware for the 5/16 x 19/32 bracket holes on 2-13/64 centres.

Which version should I choose for a golf-cart winch circuit that draws about 80 A continuously?

The single 24 V 150 A SPST model (part 24063) covers that load — it handles 80 A continuous with a 10 s on / 30 min off duty cycle and peaks at 200 A transient, matching the stated 16 Ω coil resistance and four-terminal layout.
