Open three-pole copper power distribution block, surface-mount, 7.89 in wide

Mersen

Mersen MPDB69113 Power Distribution Block 3 Pole 760 A 1000 V

SKU CH-CY1Y-ZCQ5Q

Three-pole open power distribution block rated 760 A at 1000 V with two line and twelve load connections per pole

  • Engine BrandMERSEN
  • Handles heavy loads with 760 A copper rating
  • Fits three-phase systems using 3-pole configuration
  • Works up to 1000 V AC/DC for industrial voltage
  • Accepts 12 load connections per pole from 14 to 4 AWG
  • Surface-mount design measures 5.7 in long by 7.89 in wide

3-Pole 760 A Power Distribution Block

The Mersen MPDB69113 is an open-type power distribution block rated for 760 A with copper conductors at 1,000 V AC/DC. It provides three poles for industrial power distribution in surface-mount installations. Electrical contractors and panel builders use it to consolidate multiple load circuits from a single line feed.

Two line and twelve load connections per pole

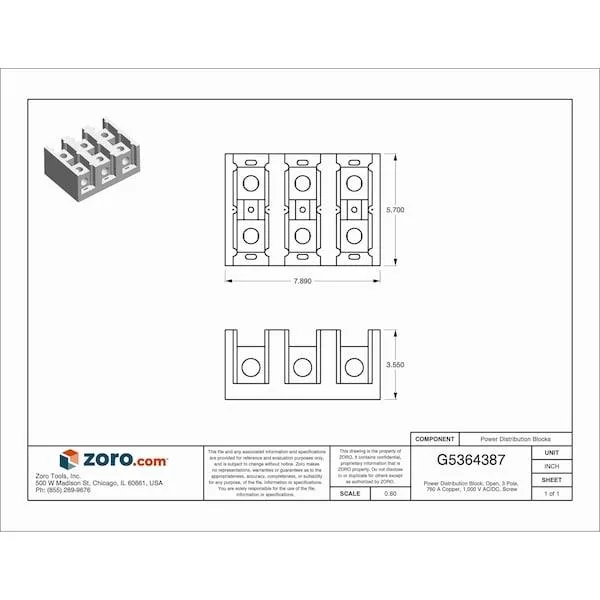

Each pole accepts two line conductors ranging from 4 AWG to 500 kcmil copper and twelve load conductors from 14 AWG to 4 AWG copper. The block is specified for aluminum conductor material compatibility. Surface-mount dimensions are 5.7 in length, 7.89 in width and 3.55 in depth.

760 A copper rating at 1,000 V

The decisive specification is the 760 A maximum current with copper conductors at 1,000 V AC/DC. Buyers needing higher ampacity or a different pole count must select another block. The part carries no enclosed housing or integral overcurrent protection.

Highlights

  • Handles heavy loads with 760 A copper rating
  • Fits three-phase systems using 3-pole configuration
  • Works up to 1000 V AC/DC for industrial voltage
  • Accepts 12 load connections per pole from 14 to 4 AWG
  • Surface-mount design measures 5.7 in long by 7.89 in wide

Specifications

Engine BrandMERSEN

Questions about this item

How do I pick the right pole count for my three-phase panel?

This block has three poles rated at 760 A and 1000 V, matching standard three-phase distribution.

What does the 760 A rating mean when the block is installed in a cabinet?

It is the maximum continuous current per pole with copper conductors up to 500 kcmil, assuming proper torque and ventilation.

Which conductor standard does the 1000 V AC/DC rating follow, and what does it limit?

The 1000 V AC/DC rating sets the maximum working voltage for both line and load sides across all three poles.
