Rectangular metal bench power supply unit with digital display and front panel controls, 17 by 20 by 3.5 inches

Matrix

Matrix MPS-6000S-2000-2 2000V 2A 2KW industrial power supply

SKU CH-TMHX-YHYJ7

Programmable DC supply delivers 0–2000 V at 2 A with 2 kW continuous and 6 kW surge, plus OVP, OCP, OTP and short-circuit protection

  • TypeMATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power S
  • Watts2000 watts
  • Surge Wats6000 watts
  • Engine BrandMATRIX
  • Voltage2000 volts
  • Circuit BreakerMATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power S
  • Precise control with simultaneous five-digit voltage and current display
  • Stable output via PWM modulation and high-gain amplification circuit
  • Flexible setup using front-panel preset buttons for voltage and current
  • Comprehensive protection including OVP, OCP, OTP and short-circuit safeguards
  • Remote voltage compensation maintains accuracy across load changes

High-voltage programmable DC supply

The Matrix MPS-6000S-2000-2 delivers adjustable DC output from 0 to 2000 volts at up to 2 amps with a continuous rating of 2000 watts. It is built for laboratory, test-bench and industrial users who need precise high-voltage control with simultaneous five-digit voltage and current readout.

Single-phase AC 220 V input constraint

The unit requires a single-phase 220 V supply at 50 Hz with a ±10 % tolerance. No other mains voltage or frequency is supported, so installation must match this specification exactly.

2 kW continuous with 6 kW surge headroom

Continuous loads up to 2000 watts are handled indefinitely while a 6000 watt surge capacity covers brief peaks. Demands above the continuous rating or currents exceeding 2 amps will trigger protection and shut the output down.

Highlights

  • Precise control with simultaneous five-digit voltage and current display
  • Stable output via PWM modulation and high-gain amplification circuit
  • Flexible setup using front-panel preset buttons for voltage and current
  • Comprehensive protection including OVP, OCP, OTP and short-circuit safeguards
  • Remote voltage compensation maintains accuracy across load changes

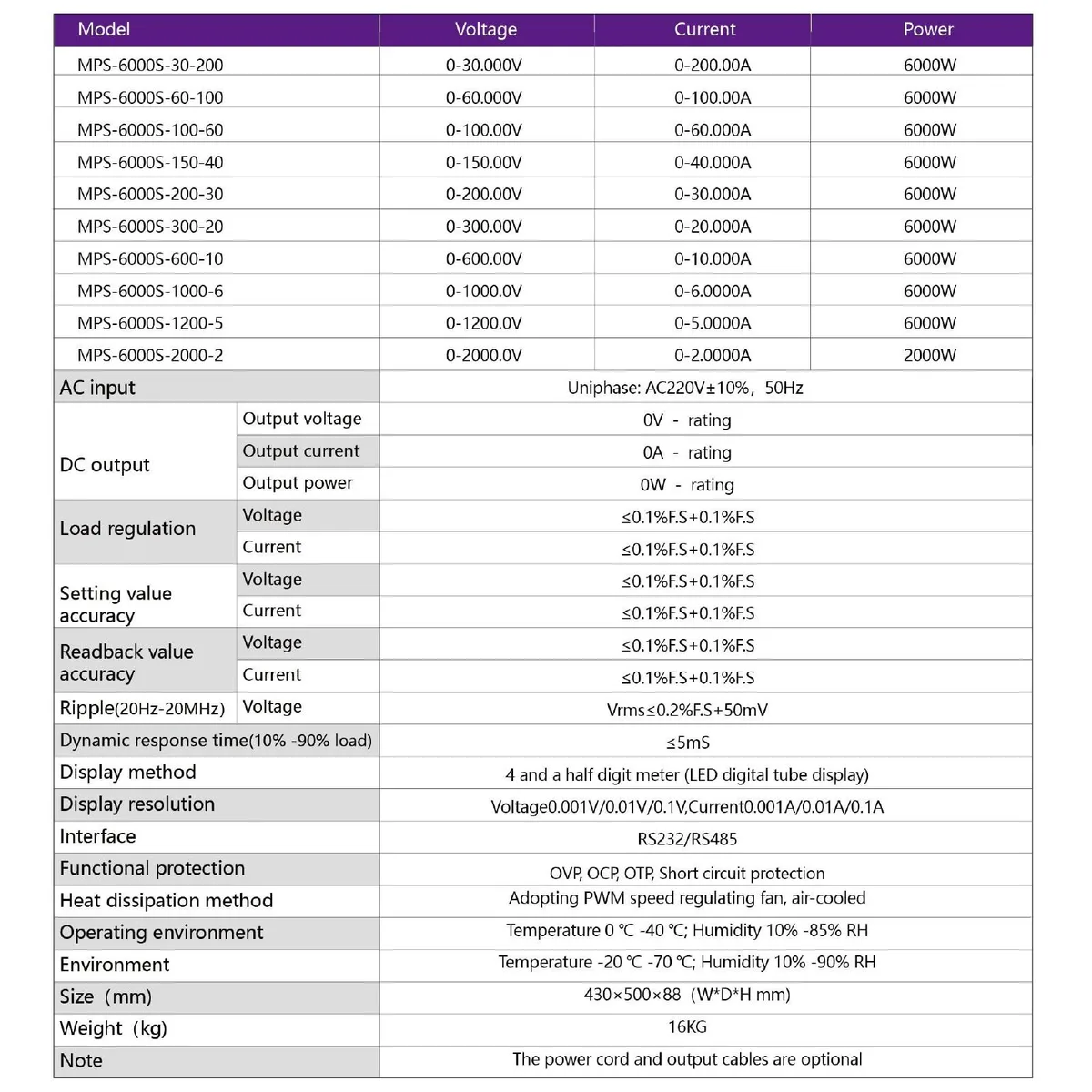

Specifications

TypeMATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power Supply 2000V 2A 2KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Watts2000 watts
Surge Wats6000 watts
Engine BrandMATRIX
Voltage2000 volts
Circuit BreakerMATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power Supply 2000V 2A 2KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Size/Dimensions17 in x 20 in x 3.5 in
Horsepower6000 watts
Input VoltageMATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power Supply 2000V 2A 2KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Output VoltageMPS-6000S-2000-2, MATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power Supply 2000V 2A 2KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Output AmpsMPS-6000S-2000-2, MATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power Supply 2000V 2A 2KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Input Amps2U, MATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power Supply 2000V 2A 2KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Styleadjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Operating Frequencynot_applicable
MaterialMetal
Regulationnot_applicable
RippleMATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power Supply 2000V 2A 2KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Featuresadjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply, MATRIX MPS-6000S-2000-2 High Voltage Programmable DC Power Supply 2000V 2A 2KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Parts3 Years
Labor3 Years

Questions about this item

Should I choose the 2000 V 2 A model or a different voltage and current combination?

This unit delivers 0 to 2000 V at up to 2 A for 2000 W continuous; select it when your test or production load requires that specific high-voltage, low-current range.

What does the 6000 W surge rating mean when the supply is running in my lab?

The 6000 W figure is a peak surge capability; the continuous output is limited to 2000 W, so plan your load for 2000 W steady-state operation.

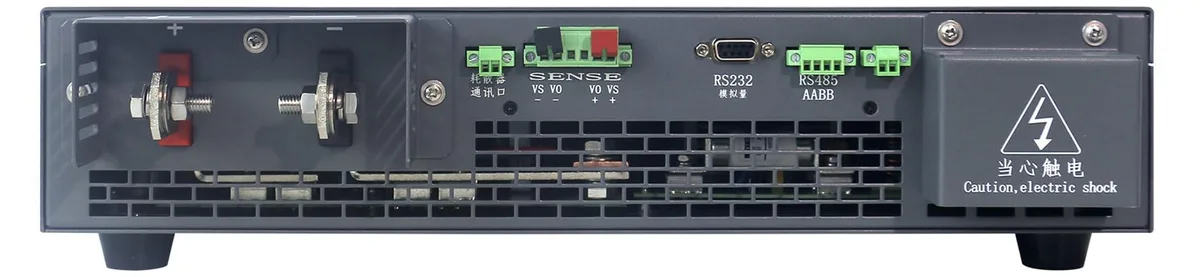

Which remote interfaces are built in and what do they limit in practice?

RS-232 and RS-485 are provided for computer control; they set the communication speed and command set you can use for automated sequencing.
