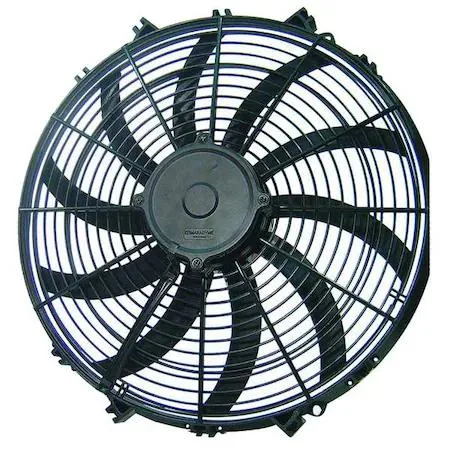

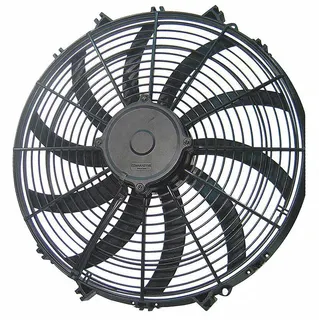

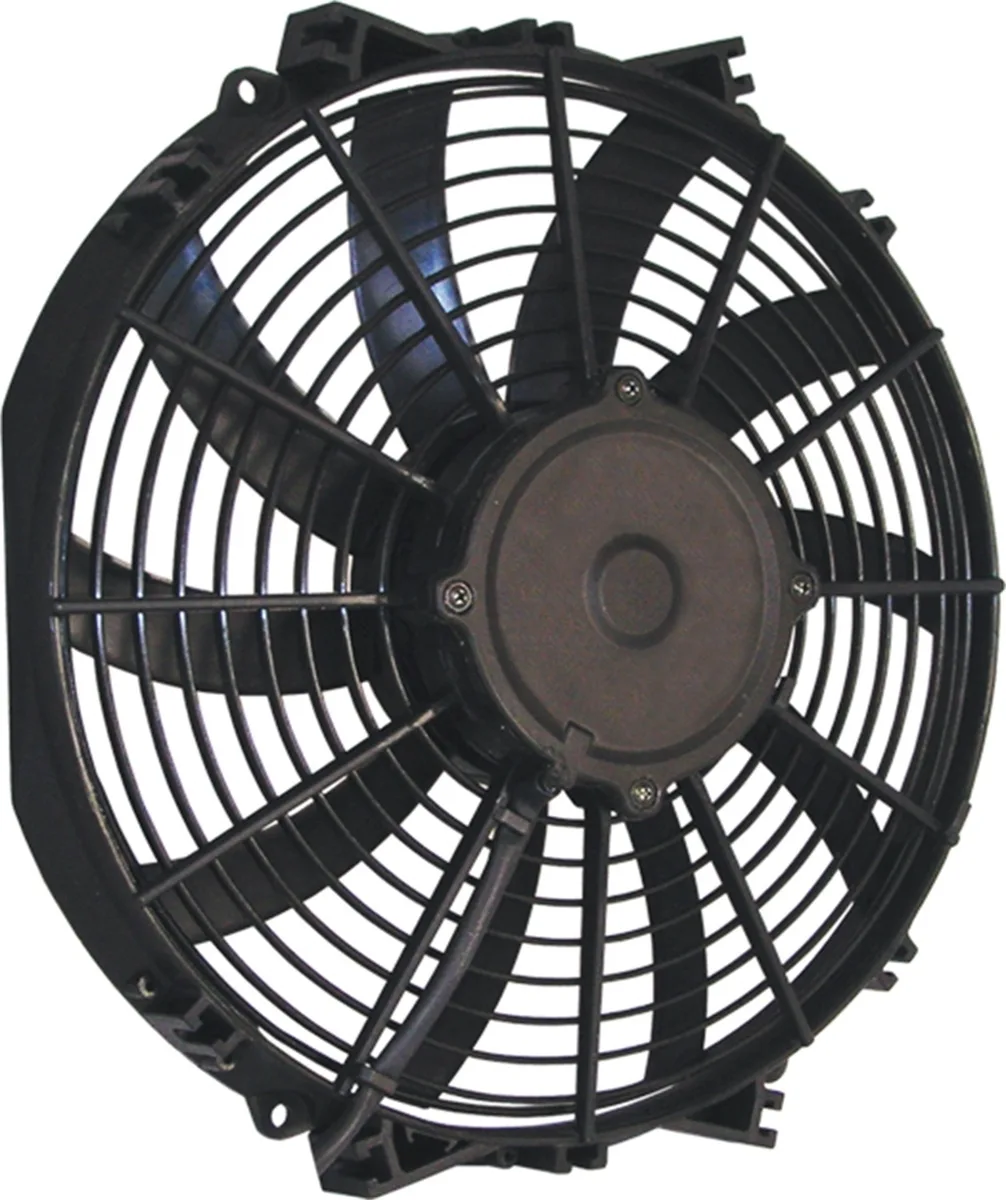

Black 14 inch 12 volt DC blower fan with plastic blades and metal housing

Maradyne

Maradyne M146K 14 Inch 12 VDC 1555 CFM Blower

SKU CH-HCVW-SFGVJ

A 14-inch 12 VDC blower delivering 1555 CFM at zero static pressure with a 3/32 hp DC motor running 2600 to 3200 RPM

  • High airflow at 1555 CFM with zero static pressure
  • Consistent output of 800 CFM at 0.375 in. SP
  • Operates up to 200 °F maximum ambient temperature
  • 12 V DC motor runs between 2600 and 3200 RPM
  • 14 inch blade diameter moves high volume air

Maradyne M146K 14 Inch 12 VDC Blower

The Maradyne M146K is a 12 VDC blower with a 14 inch blade diameter. It delivers 1555 CFM at 0.000 In. SP and 339 CFM at 0.500 In. SP. The motor runs between 2600 and 3200 RPM with a 3/32 hp rating.

Suited for high-volume airflow in 12 VDC systems

This blower suits installations that need strong airflow at low static pressure. It fits equipment rated for 200 Degrees F ambient temperature. Builders who need higher static pressure performance or a different voltage supply should look at other options.

1555 CFM at 0.000 In. SP defines the airflow

The 1555 CFM rating at zero static pressure is the key figure for sizing this blower. At 0.375 In. SP the output reaches 800 CFM while at 0.500 In. SP it drops to 339 CFM. Match these points to your duct resistance to confirm the right part.

Highlights

  • High airflow at 1555 CFM with zero static pressure
  • Consistent output of 800 CFM at 0.375 in. SP
  • Operates up to 200 °F maximum ambient temperature
  • 12 V DC motor runs between 2600 and 3200 RPM
  • 14 inch blade diameter moves high volume air

Specifications

BrandMaradyne

Questions about this item

What power source do I need to run this 12 VDC blower?

The fan operates on a 12 V DC supply and draws 3/32 hp from the motor, so a compatible 12-volt DC power source rated for that load is required.

Will the 14-inch blade diameter and 2600–3200 RPM range fit my existing duct opening and mounting points?

The blower uses a 14 in blade diameter with a totally enclosed DC motor running at 2600 to 3200 RPM; verify your duct and bracket dimensions against those specifications.

How can I confirm the blower is delivering the rated airflow after installation?

Measure the output against the published CFM curve: 1555 cfm at 0.000 in. SP, 1400 cfm at 0.125 in. SP, 1200 cfm at 0.250 in. SP, 800 cfm at 0.375 in. SP and 339 cfm at 0.500 in. SP.
