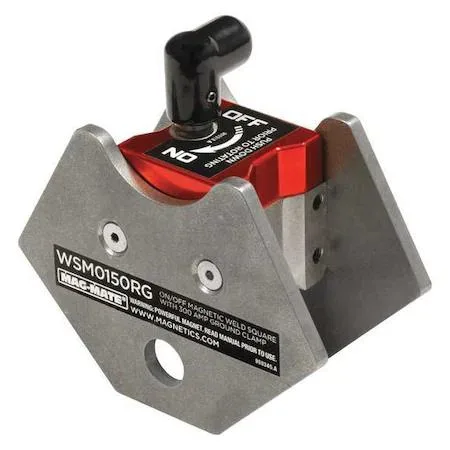

Red magnetic weld angle 4 in 150 lb with ground clamp switchable on off

Mag-Mate

Mag-Mate Magnetic Weld Angle 4 in 150 lb Red with Ground

SKU CH-X1FP-FM2VG

Magnetic welding angle holds workpieces at five preset angles up to 150 lb pull and includes a 300 A ground attachment

  • TypeWelding Parts & Supplies
  • Size5.500
  • Holds workpieces at five preset angles from 45° to 135°
  • Rare-earth magnet delivers 150 lb pull for secure clamping
  • Switchable on/off control enables quick positioning and release
  • Integrated 300 A ground attachment simplifies welding setup
  • Operates reliably up to 180 °F in shop environments

Magnetic Weld Angle with Ground

The Mag-Mate magnetic weld angle holds ferrous workpieces at five preset angles including 45, 75, 90, 105 and 135 degrees. A 150 lb maximum pull from rare earth magnets keeps plate up to 1.94 in thick in position during tack welding. The integrated 300 amp ground attachment completes the electrical circuit without a separate clamp.

Practical Limits of Magnetic Holding

Magnetic force drops sharply if rust, paint or an air gap exceeds a fraction of a millimetre between the magnet face and the workpiece. The 150 lb rating assumes clean, flat, low-carbon steel at least 1.9 in thick; thinner or coated material reduces effective pull. Operating temperature must stay below 180 degrees F or the rare earth material can lose strength permanently.

Installation and Common Issues

Switch the magnet on after the angle rests on the joint so the full 150 lb pull engages at once. Debris trapped under the 1.9 in wide base is the usual cause of misalignment; wipe both surfaces before each use. Forgetting to toggle the switch off before lifting the tool leads to dropped workpieces and damaged edges.

Highlights

  • Holds workpieces at five preset angles from 45° to 135°
  • Rare-earth magnet delivers 150 lb pull for secure clamping
  • Switchable on/off control enables quick positioning and release
  • Integrated 300 A ground attachment simplifies welding setup
  • Operates reliably up to 180 °F in shop environments

Specifications

BrandMAG-MATE
TypeWelding Parts & Supplies
Size5.500

Questions about this item

Which positioning angles are available on the 4 in Mag-Mate magnetic weld angle?

The angle offers five fixed positions at 45, 75, 90, 105 and 135 degrees for versatile joint set-up.

What does the 150 lb maximum pull mean when the magnet is on a real workpiece?

It indicates the magnet can hold up to 150 lb of pull force on clean, flat steel of at least 1.94 in plate thickness before releasing.

How does the 300 amp welding ground attachment connect to the tool?

The ground attachment is included and integrates with the switchable magnetic base to provide a 300 amp electrical path during welding.
