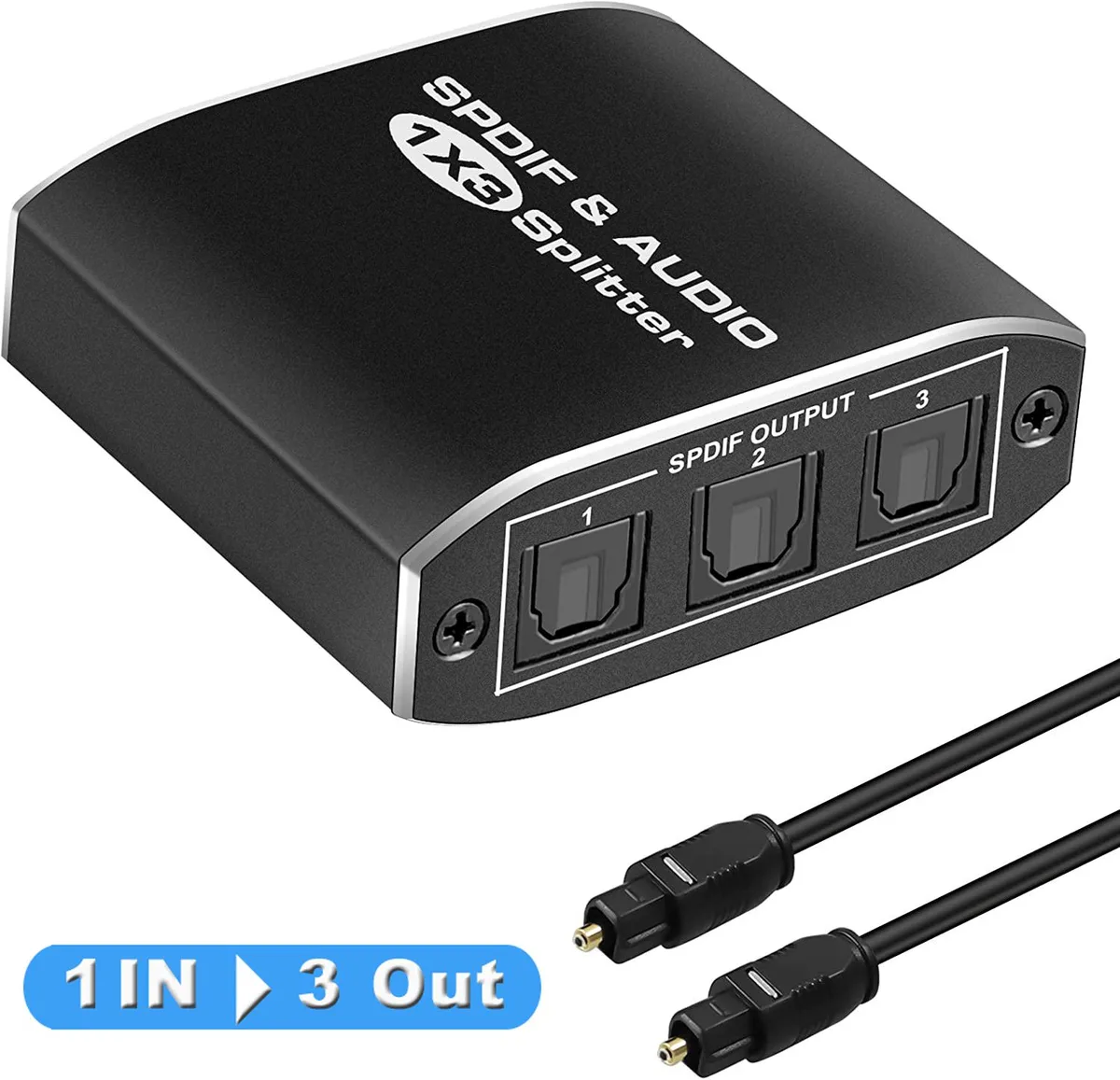

Black rectangular optical audio splitter with three Toslink output ports and one input port, aluminium alloy finish

LUOM

LUOM OZG1 1×3 Toslink Splitter with Cable

SKU CH-CM91-W98F5

Splits one optical audio source to three devices with included cable and supports 5.1 surround formats

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical source to three devices
  • Supports LPCM2.0, DTS and Dolby-AC3 audio formats
  • Signal retiming and ESD protection ensure stable transmission
  • Outputs reach up to 40 m over fibre cable
  • Includes optical cable and USB power cable

What the product is

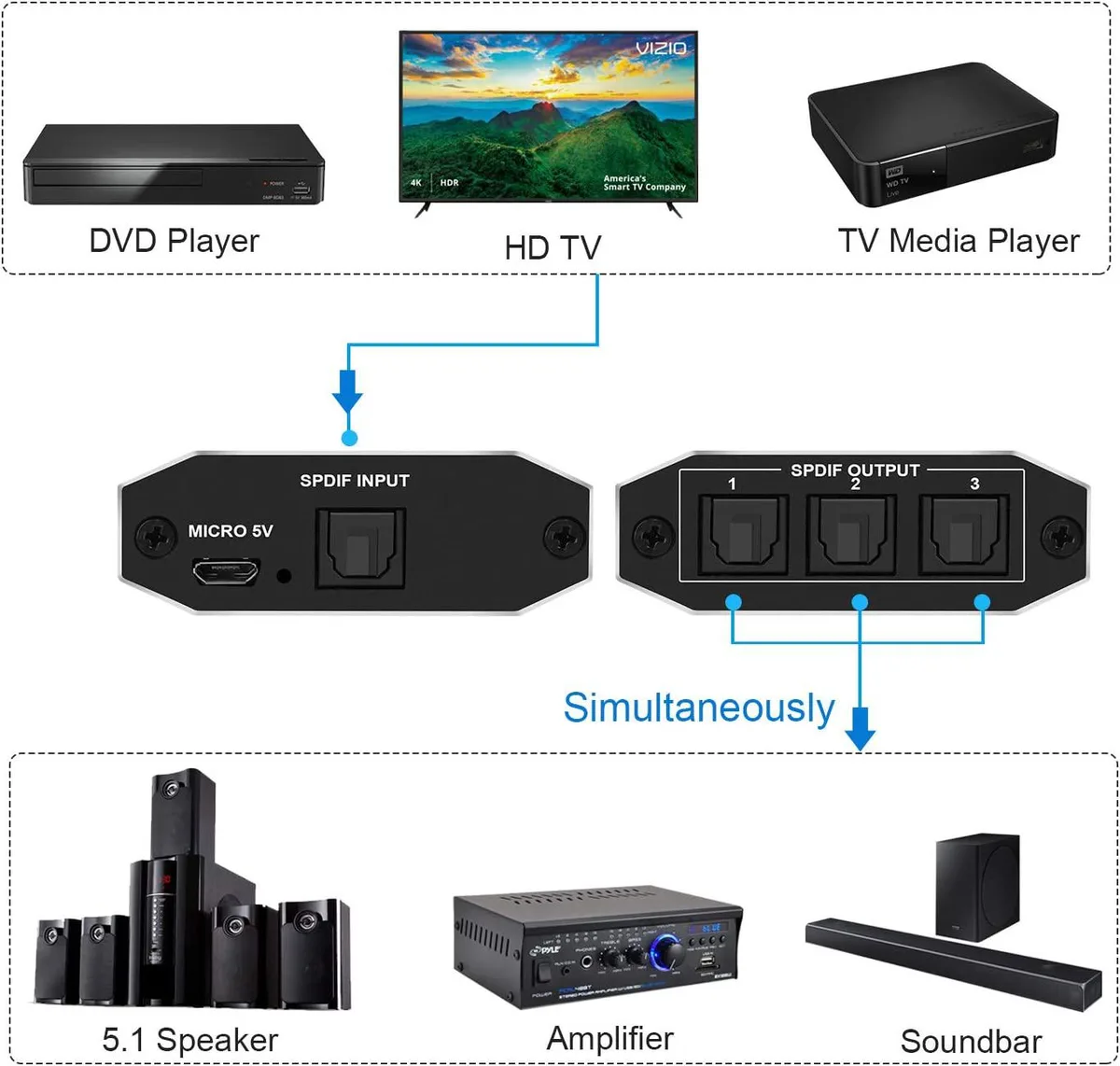

The LUOM OZG1 is a 1×3 Toslink splitter that takes a single SPDIF optical input and distributes it to three separate outputs. It ships with an optical cable and a USB power lead so the unit is ready to connect a source such as a game console or streaming box to multiple amplifiers or sound bars.

Sustained-load behaviour

The splitter uses an automatic balance circuit and built-in ESD protection to keep the optical signal stable over long runs. It supports a maximum baud rate of 16Mbps with a peak wavelength of 650nm and can drive cables up to 40 metres while keeping loss below .2 dB per metre, drawing no more than 100mA from the 5 V supply.

The deciding specification

The unit only passes LPCM2.0, DTS and Dolby-AC3 formats; it does not carry DTS-HD or multichannel LPCM beyond 5.1. Buyers who need lossless high-resolution audio or more than three simultaneous zones should look for a different distribution method.

Highlights

  • Splits one optical source to three devices
  • Supports LPCM2.0, DTS and Dolby-AC3 audio formats
  • Signal retiming and ESD protection ensure stable transmission
  • Outputs reach up to 40 m over fibre cable
  • Includes optical cable and USB power cable

Specifications

BrandLUOM
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply

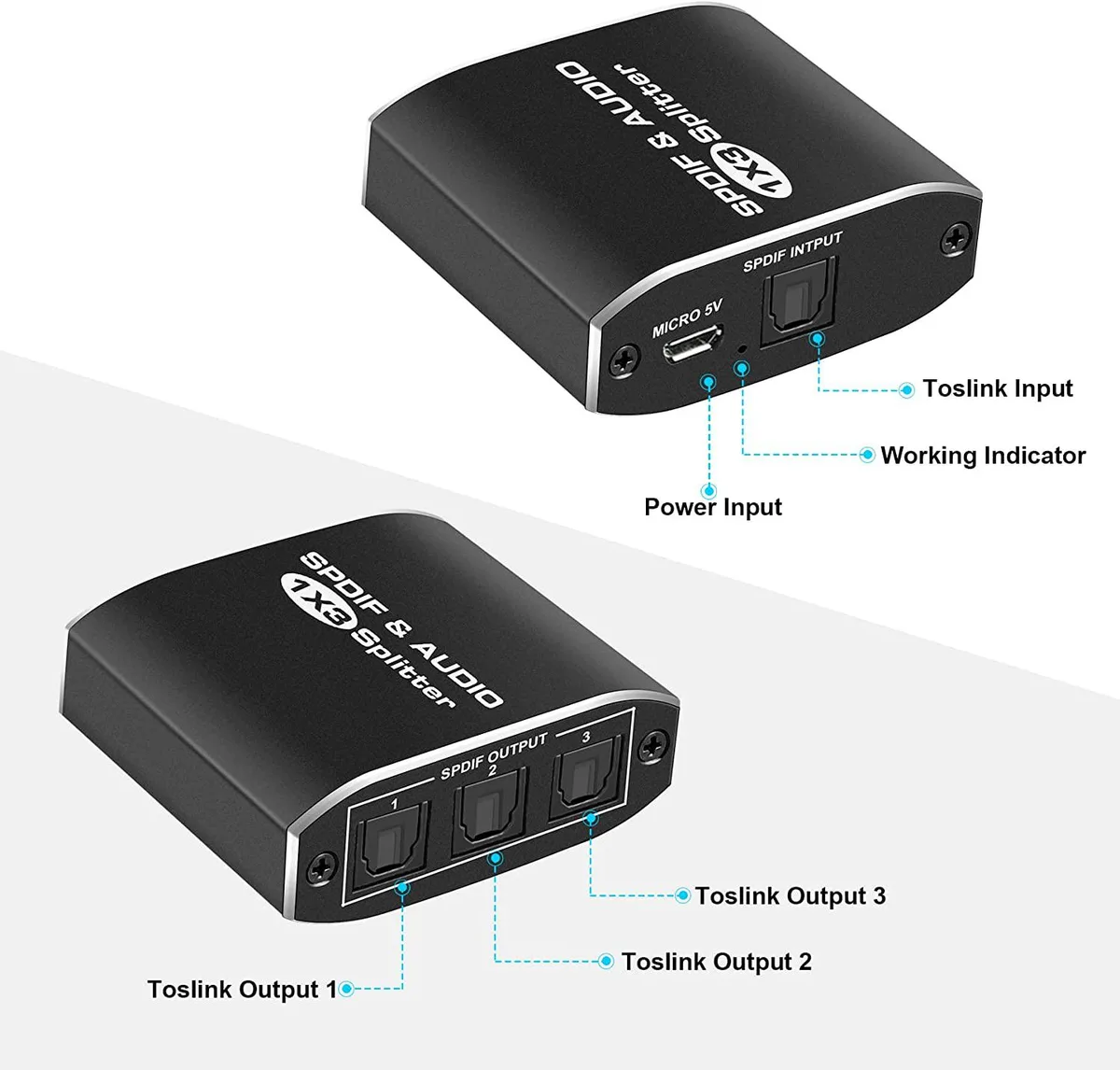

Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

Does the LUOM OZG1 splitter need a fan or get hot when powered through its USB cable all day?

The splitter draws a maximum working current of 100 mA from the USB power cable, so it runs cool without a fan.

What source device and cables must I already have to use the LUOM OZG1 splitter?

You need one source with a Toslink output, up to three receiving devices with Toslink inputs, and optical cables for each connection; a USB power source is also required.

Will the LUOM OZG1 work with my older Dolby Digital 5.1 receiver and a legacy DVD player?

Yes, it supports Dolby AC3 and DTS 5.1 channels, so legacy DVD players and older 5.1 receivers connect without issues.
