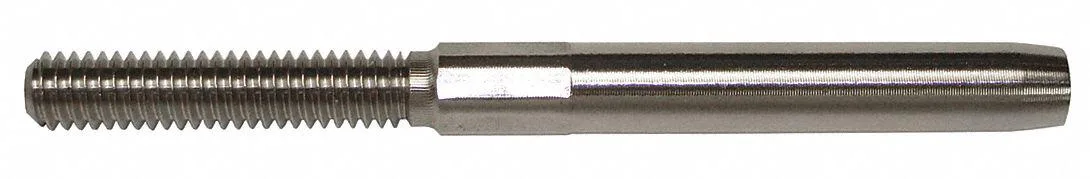

Stainless steel wire rope stud with coarse right-hand threads and swaged fitting

Locoloc

Locoloc 259-8CTRH Coarse Thread Stud Right Hand 1/4 in conveying

SKU CH-C456-59KSB

Stainless steel swage stud for 1/4 in wire rope with right-hand external threads

  • Right-hand thread ensures secure lifting connections
  • External 3/8-16 threads fit standard hardware
  • Swaged 7/16 in OD matches 1/4 in wire rope
  • Stainless steel construction resists corrosion in harsh use
  • Rated for lifting applications per commercial standards

Coarse Thread Stud for Lifting

The Locoloc 259-8CTRH is a right-hand coarse thread stud designed for lifting, pulling, and conveying applications. It is built from stainless steel and features a swaged fitting type for secure wire rope termination. This component suits rigging professionals who need a compatible stud for 1/4 inch stainless steel wire rope.

Verify Rope Diameter and Thread Specs

Confirm that your existing wire rope measures 1/4 inch in diameter and is stainless steel before ordering. The stud provides a 3/8 In. -16 external thread with a 1 3/4 inch thread length and a 7/16 inch swaged outside diameter. Ensure the right-hand thread direction matches the mating hardware on your current assembly.

Swaged Fitting Creates Permanent Termination

The swaged fitting type means the stud is permanently compressed onto the wire rope during installation, forming a fixed end termination. This eliminates the need for reusable mechanical clips but requires access to a swaging tool. The stainless steel material resists corrosion in commercial lifting environments.

Highlights

  • Right-hand thread ensures secure lifting connections
  • External 3/8-16 threads fit standard hardware
  • Swaged 7/16 in OD matches 1/4 in wire rope
  • Stainless steel construction resists corrosion in harsh use
  • Rated for lifting applications per commercial standards

Specifications

BrandLOCOLOC

Questions about this item

What comes in the box and what do I need to buy separately?

The package contains the 259-8CTRH coarse-thread swage stud with a 3/8 in.-16 right-hand thread and a 7/16 in. swaged OD. You must supply 1/4 in. stainless-steel wire rope and a swaging tool to complete the termination.

Which thread size matches my 1/4 in. stainless rope?

This stud is built for 1/4 in. stainless-steel rope and carries a 3/8 in.-16 external thread, so select it when your rope diameter and thread requirement match those dimensions.

How does the 3/8 in.-16 thread perform in a lifting setup?

The right-hand 3/8 in.-16 external thread engages standard lifting hardware, while the 1 3/4 in. thread length and 7/16 in. swaged OD provide the bearing surface needed for rated lifting loads.
