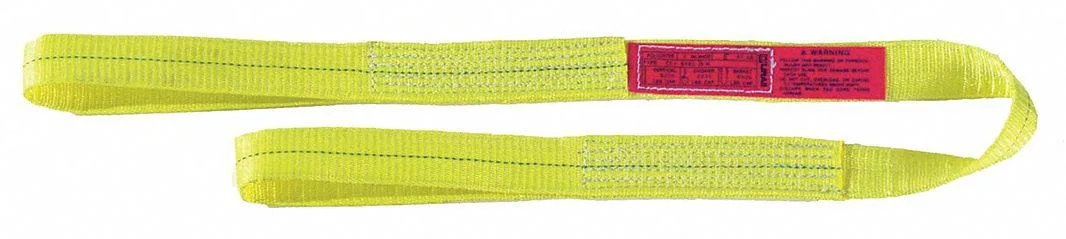

Yellow polyester web sling, flat 3-inch wide webbing with sewn eyes at each end

Lift-all

Lift-all Web Sling Type 3 Polyester 3in 20ft EE2803DFX20

SKU CH-A8SS-3AGM3

A 20 ft polyester web sling rated for 8,800 lb vertical, 7,040 lb choker and 17,600 lb basket hitches, meeting ASME B30.9 and OSHA 1910.184 standards

  • MaterialHAWA
  • 2-ply polyester construction meets ASME B30.9 and OSHA 1910.184 standards
  • Vertical hitch rated at 8,800 lb for straight lifts
  • Choker hitch capacity 7,040 lb for angled load control
  • Basket hitch supports 17,600 lb when load is balanced
  • 20 ft length with 11 in eyes fits wide rigging points

Purpose and construction

The Lift-all Web Sling Type 3 is a two-ply polyester lifting sling measuring 20 ft in overall length and 3 in wide. Yellow colour coding provides quick visual identification on site. It is built for vertical, choker and basket hitches in rigging, automotive and industrial material-handling tasks.

Rated capacities and standards

Vertical hitch capacity is 8,800 lb, choker hitch capacity is 7,040 lb and basket hitch capacity is 17,600 lb. The sling meets ASME B 30.9, OSHA 1910.184 and WSTDA requirements. Each eye is 11 in long and the body thickness is 1/8 in, giving consistent load distribution across the full width.

Sustained load behaviour

Polyester construction resists stretch under continuous tension and retains strength during prolonged lifts. The two-ply design distributes stress evenly across both layers, reducing localised wear when the sling remains under load for extended periods. No basket-hitch ratings are provided for 30-degree or 60-degree angles, so those configurations should be avoided.

Highlights

  • 2-ply polyester construction meets ASME B30.9 and OSHA 1910.184 standards
  • Vertical hitch rated at 8,800 lb for straight lifts
  • Choker hitch capacity 7,040 lb for angled load control
  • Basket hitch supports 17,600 lb when load is balanced
  • 20 ft length with 11 in eyes fits wide rigging points

Specifications

BrandLIFT-ALL
MaterialHAWA

Questions about this item

How do I install the 11 in eye onto a hook or shackle?

Slide the 11 in eye over the attachment point and ensure it seats flat against the bearing surface without twisting the 3 in wide webbing.

What maintenance or replacement will this sling need later?

Inspect the yellow polyester webbing before each use for cuts, abrasion, heat damage or chemical burns; remove from service immediately if red core yarns become visible or if the label is illegible.

What limit shows up first under sustained use?

The vertical hitch capacity of 8,800 lb is the lowest rated working load limit; exceeding it in a straight lift will cause failure before the choker or basket ratings are reached.
