Lift-all
Lift-all KEN10KX3 Roundsling 3 ft 20000 lb
Three-foot roundsling with aramid core and polyester sleeve handles vertical loads up to 10,000 lb, choker loads up to 8,000 lb, and basket loads up to 20,000 lb
- Aramid core delivers 20000 lb basket capacity
- 10000 lb vertical rating for straight lifts
- 8000 lb choker rating for tight grips
- Angled basket ratings: 10000 lb at 30°, 14100 lb at 45°, 17300 lb at 60°
- Polyester sleeve protects core from abrasion
Lift-all KEN10KX3 Roundsling 3 ft 20000 lb

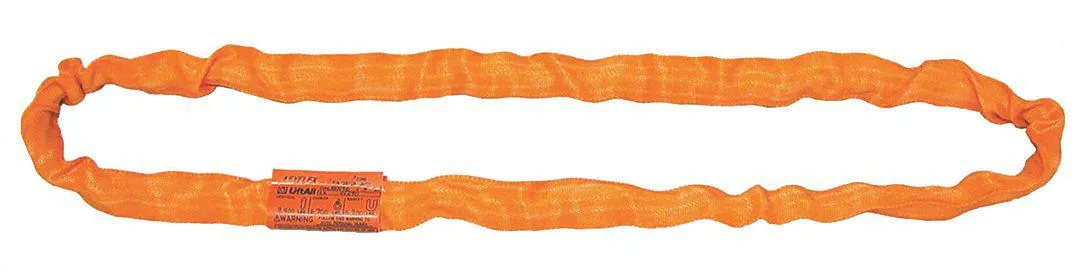

This 3 ft roundsling uses an aramid core wrapped in a polyester sleeve to handle heavy lifting tasks. It suits riggers and maintenance crews who need a compact sling for vertical, choker or basket hitches. The orange sleeve aids visibility on busy job sites. Rated capacities reach 20,000 lb in a basket hitch.
Aramid core polyester sleeve construction
The aramid core provides high tensile strength while the polyester sleeve protects against abrasion and UV exposure. A 1 in body diameter expands to 1 1/2 in width under load, distributing pressure across the load surface. No eyes are present, so the sling body forms the hitch directly. The Type 5 designation confirms the endless roundsling configuration.
Replaces wire rope or chain slings of similar
Switching to this roundsling reduces weight and eliminates kinking or corrosion concerns common with steel alternatives. The jump is worth it when loads have finished surfaces that steel could damage or when crew fatigue from heavy rigging is a factor. Basket hitch ratings drop to 10,000 lb at 30 degrees, 14,100 lb at 45 degrees and 17,300 lb at 60 degrees.
Highlights
- Aramid core delivers 20000 lb basket capacity
- 10000 lb vertical rating for straight lifts
- 8000 lb choker rating for tight grips
- Angled basket ratings: 10000 lb at 30°, 14100 lb at 45°, 17300 lb at 60°
- Polyester sleeve protects core from abrasion
Specifications
| Brand | LIFT-ALL |
|---|
Questions about this item
What is the basket-hitch capacity at a 60-degree angle?
The roundsling is rated for 17,300 lb in a basket hitch at 60 degrees.
What are the body diameter and width under load?
The sling has a 1 in body diameter and a 1 1/2 in width under load.
How is the sling attached to the load?
As a Type 5 endless roundsling it is rigged by forming the required hitch — vertical, choker or basket — around the load; the common error is using an angle below 30 degrees, which reduces capacity below the rated 10,000 lb.
