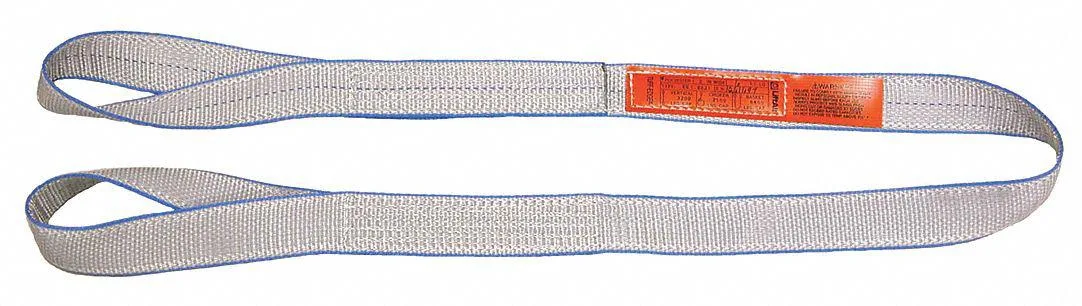

Flat silver polyester web sling, 3 inches wide, reinforced eyes at each end

Lift-all

Lift-all EE2803TTX8 Web Sling Type 4 8 ft 3 in Polyester Silver

SKU CH-D51Y-Z6GZ5

Polyester web sling rated for 8,800 lb vertical lifts, 17,600 lb basket capacity, 8 ft length with 11 in eyes, meets ASME B 30.9 and OSHA 1910.184 standards

  • Type 4 eye-and-eye design enables versatile rigging configurations
  • Two-ply polyester construction delivers 8,800 lb vertical capacity
  • 11 in eye length speeds attachment to hooks and shackles
  • Rated to ASME B30.9 and OSHA 1910.184 for compliant lifting
  • Silver colour with blue tracer allows quick visual inspection

Lift-all EE2803TTX8 Web Sling

The Lift-all EE2803TTX8 is a Type 4 web sling made from polyester with a silver and blue finish. It measures 8 feet in length and 3 inches in overall width with a thickness of 1/8 inch. The sling features two plies and 11 inch eye length for secure attachment points. It is designed for lifting, pulling and conveying tasks in industrial and automotive settings.

Sustained load performance and hitch ratings

Under vertical hitch configuration the sling supports a capacity of 8,800 lb while a choker hitch reduces capacity to 7,040 lb. A basket hitch provides a capacity of 17,600 lb when the legs are vertical. Angled basket hitches at 30 degrees and 60 degrees are not rated for this model. The sling meets ASME B 30.9 and OSHA 1910.184 standards along with WSTDA guidelines for safe working loads.

Installation notes and common issues

The flat web construction allows the sling to be wrapped around loads and passed through its own eyes without additional hardware. No hook attachment is included so users must ensure compatible rigging points are available. Inspect the polyester webbing for cuts, abrasion or UV damage before each use as these compromise the rated capacities. Improper angle loading beyond vertical basket configuration is a frequent cause of overload.

Highlights

  • Type 4 eye-and-eye design enables versatile rigging configurations
  • Two-ply polyester construction delivers 8,800 lb vertical capacity
  • 11 in eye length speeds attachment to hooks and shackles
  • Rated to ASME B30.9 and OSHA 1910.184 for compliant lifting
  • Silver colour with blue tracer allows quick visual inspection

Specifications

BrandLIFT-ALL

Questions about this item

Does the polyester webbing generate heat or noise when the 8 ft Type 4 sling is under load all day?

The sling is passive polyester webbing with no moving parts, so it produces no noise and negligible heat during continuous lifting use.

What hardware must I already own to attach this 3 in wide, 2 ply web sling with 11 in eyes?

You need compatible shackles, hooks or master links rated for the 8,800 lb vertical capacity that accept 3 in wide eyes.

Will this ASME B30.9 sling work safely with older rigging hooks rated to OSHA 1910.184?

Yes, the sling meets both ASME B30.9 and OSHA 1910.184, so it is compatible with existing hardware certified to those same standards.
