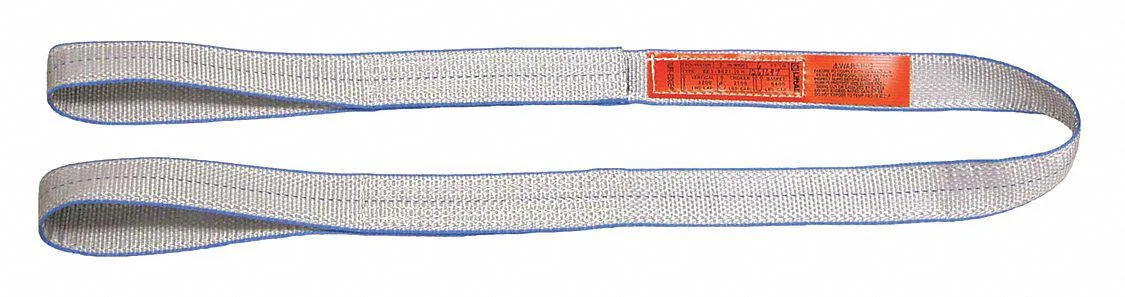

Flat silver polyester web sling with reinforced blue edges and stitched eye loops at each end

Lift-all

Lift-all EE2803TFX12 Tuff-Edge Web Sling 12 ft 3 in

SKU CH-Z5GJ-ZSC6T

A 12 ft polyester web sling with flat eyes rated for 8,800 lb vertical capacity

  • 8,800 lb vertical lift capacity with two-ply polyester construction
  • 17,600 lb basket hitch rating for balanced heavy loads
  • 11-inch eye length speeds rigging on wide hardware
  • Silver Tuff-Edge wear strips extend sling service life
  • Meets ASME B30.9 and OSHA 1910.184 compliance standards

Lift-All EE2803TFX12 Web Sling

The Lift-All EE2803TFX12 is a flat eye-and-eye web sling built for industrial lifting, pulling and conveying tasks. It uses a two-ply polyester construction with Tuff-Edge wear resistance and a silver-blue colour code. The sling measures 12 ft long and 3 in wide with 11 in eyes. It is suited for riggers and maintenance crews who need a flexible, lightweight synthetic sling for general-purpose hoisting.

Capacity limits by hitch configuration

Vertical hitch capacity is rated at 8,800 lb while choker hitch capacity drops to 7,040 lb. Basket hitch capacity reaches 17,600 lb when the legs are vertical, but angled basket ratings at 30 degrees and 60 degrees are not applicable for this model. The sling complies with ASME B30.9, OSHA 1910.184 and WSTDA standards. Always match the hitch type to the load angle to stay within the rated working load limit.

Pre-use inspection and compatibility checks

Verify that the 3 in width and 1/8 in thickness fit your hook, shackle or load contact points without bunching or pinch points. Confirm the 11 in eye length suits your hardware and that the two-ply body meets your abrasion and cut-resistance requirements. Inspect the sling before each use for cuts, heat damage, chemical exposure or missing identification tags. Do not use if the red core warning yarns become visible through the cover.

Highlights

  • 8,800 lb vertical lift capacity with two-ply polyester construction
  • 17,600 lb basket hitch rating for balanced heavy loads
  • 11-inch eye length speeds rigging on wide hardware
  • Silver Tuff-Edge wear strips extend sling service life
  • Meets ASME B30.9 and OSHA 1910.184 compliance standards

Specifications

BrandLiftall

Questions about this item

Should I choose the 12 ft length or a shorter sling?

The 12 ft length with 11 in eye length suits lifts needing that reach; select a shorter sling only if the distance between hook and load is less.

What does the 8,800 lb vertical hitch capacity mean on the job?

It is the maximum load for a straight vertical lift with this two-ply polyester sling; angled or choker configurations reduce the allowable weight.

Which standard governs the sling and what does it cap in practice?

ASME B30.9 and OSHA 1910.184 set the design and inspection rules; they cap the vertical hitch at 8,800 lb, choker at 7,040 lb and basket at 17,600 lb.
