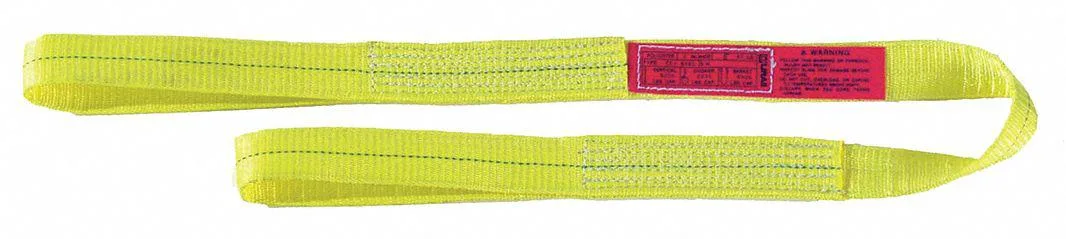

Yellow polyester web sling, 12 ft long, 3 in wide, flat woven with reinforced eyes

Lift-all

Lift-all EE2803DFX12 Web Sling Type 3 12 ft 3 in Polyester Yellow

SKU CH-6N8K-CPVSQ

A 12 ft polyester web sling with 3 in width, 2 plies and 11 in eyes rated for 8,800 lb vertical, 7,040 lb choker and 17,600 lb basket hitches

  • Two-ply polyester resists abrasion and UV
  • Type 3 flat eyes speed up rigging
  • 12 ft length suits wide lifting spans
  • Vertical capacity 8,800 lb handles heavy loads
  • Meets ASME B30.9 and OSHA 1910.184 standards

LIFT-ALL EE2803DFX12 Web Sling

This LIFT-ALL web sling is a Type 3 polyester lifting strap built for vertical, choker and basket hitches. The yellow two-ply construction measures 12 ft long and 3 in wide with 11 in eyes. Rated capacities reach 8,800 lb vertical, 7,040 lb choker and 17,600 lb basket. It meets ASME B 30.9, OSHA 1910.184 and WSTDA standards for professional rigging use.

Replaces worn or undersized slings

When an existing sling shows cuts, abrasion or UV damage, this unit restores the full 8,800 lb vertical rating in a single step. The jump is worth it if the current sling limits the load below 8,800 lb vertical or 17,600 lb basket, or if the eye length of 11 in better fits the hardware in use. It is not for applications that require a hook attachment or a specific 30-degree or 60-degree basket rating.

Sustained-load behaviour

The polyester material resists stretch under continuous tension and retains its rated capacities across repeated lifts. Thickness of 1/8 in distributes pressure evenly across the 3 in width, reducing localised wear during long-duration basket hitches. Yellow colour aids visual inspection for fibre damage between cycles. No basket-hitch ratings at 30 degrees or 60 degrees are provided, so angled lifts must be evaluated separately.

Highlights

  • Two-ply polyester resists abrasion and UV
  • Type 3 flat eyes speed up rigging
  • 12 ft length suits wide lifting spans
  • Vertical capacity 8,800 lb handles heavy loads
  • Meets ASME B30.9 and OSHA 1910.184 standards

Specifications

BrandLIFT-ALL

Questions about this item

What eye length does the 12 ft sling have for hook or shackle attachment?

Each eye measures 11 in, giving ample room for standard hooks or shackles on the Type 3 flat-eye configuration

How should the two-ply polyester web be oriented during a vertical hitch to reach the 8 800 lb rating?

Keep the sling body flat and untwisted, align both eyes in the same plane, and apply load straight through the centre line — twisting the web is the common error that cuts capacity

When does the yellow polyester webbing need to be taken out of service?

Remove it if you see cuts, abrasion exposing core yarns, melted or charred fibres, broken stitching at the eyes, or if the ASME B 30.9 inspection tag is missing or illegible
