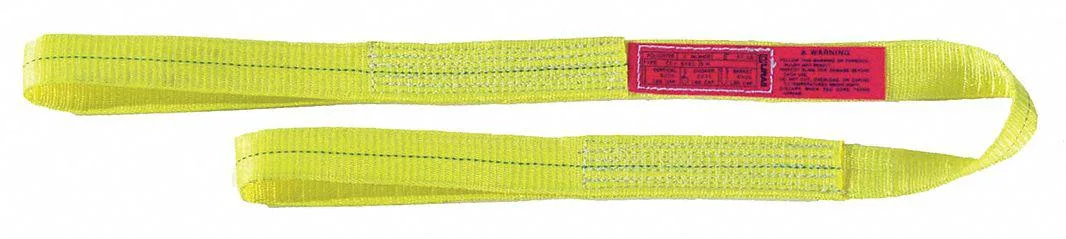

Yellow polyester web sling, flat two-ply construction, two feet long, two inches wide, reinforced eyes at each end

Lift-all

Lift-all EE2802DFX2 Web Sling Type 3 2 ft 2 in Polyester Yellow

SKU CH-VZZ7-2TW05

A 2 ft polyester web sling rated for 6,400 lb vertical, 5,000 lb choker and 12,800 lb basket hitches, built to ASME B30.9 and OSHA 1910.184 standards

  • Type 3 flat-eye design for versatile rigging
  • 6,400 lb vertical capacity handles heavy loads
  • Two-ply polyester construction resists abrasion
  • 10-inch eyes speed up hook attachment
  • Meets ASME B30.9 and OSHA 1910.184 standards

Lift-All EE2802DFX2 Type 3 Web Sling

This Lift-All EE2802DFX2 is a Type 3 flat web sling made from two-ply polyester webbing. It measures two feet in overall length with a two-inch width and features ten-inch eyes at each end. The yellow sling is rated for vertical, choker and basket hitches in general lifting and rigging applications.

Installation and common issues

The flat eye design allows the sling to seat cleanly on hooks, shackles or load edges without twisting during attachment. Polyester webbing resists abrasion and UV exposure better than nylon, but cuts or heat damage above recommended limits will reduce capacity immediately. Inspect the full length before each use and remove the sling from service if red core yarns become visible.

Capacity ratings and standards

Vertical hitch capacity is 6,400 lb, choker hitch capacity is 5,000 lb and basket hitch capacity is 12,800 lb. The sling conforms to ASME B30.9 and OSHA 1910.184 requirements and carries WSTDA compliance tagging. Buyers who need longer reach or higher basket ratings at specific angles must select a different length or configuration.

Highlights

  • Type 3 flat-eye design for versatile rigging
  • 6,400 lb vertical capacity handles heavy loads
  • Two-ply polyester construction resists abrasion
  • 10-inch eyes speed up hook attachment
  • Meets ASME B30.9 and OSHA 1910.184 standards

Specifications

BrandLIFT-ALL

Questions about this item

How can I verify the sling is rated for the 6,400 lb vertical hitch capacity after setup?

Check the attached identification tag for the ASME B 30.9 and OSHA 1910.184 markings and confirm the yellow polyester webbing shows no cuts, abrasion or heat damage before each lift.

What comes with the EE2802DFX2 web sling and what must be purchased separately?

The package includes the 2 ft Type 3 sling with 10 in eyes and 2 in width; hooks, shackles or other end fittings are not included and must be sourced separately.

Which capacity rating should I use when choosing between vertical, choker and basket hitches?

Use 6,400 lb for vertical, 5,000 lb for choker and 12,800 lb for basket hitches; do not exceed the lowest rating that matches your rigging configuration.
