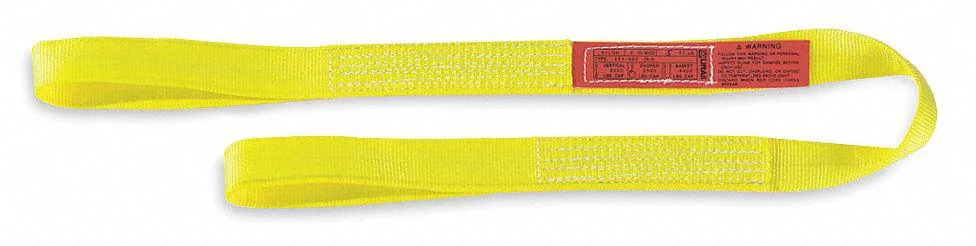

Yellow polyester web sling, flat 2-inch wide webbing, 20-foot length, reinforced eyes at both ends

Lift-all

Lift-all EE2602DFX20 Web Sling Type 3 20 ft 2 in Polyester Yellow

SKU CH-HXAF-STGC0

A 20 ft, 2-ply polyester web sling rated for 4,800 lb vertical, 3,800 lb choker and 9,600 lb basket hitches, built to ASME B 30.9 and OSHA 1910.184

  • Type 3 flat-eye design enables versatile basket, choker and vertical hitches
  • Two-ply polyester construction delivers 4 800 lb vertical, 3 800 lb choker and 9 600 lb basket capacity
  • 20 ft length with 10 in eyes provides extended reach for large loads
  • Yellow colour and 1/4 in thickness allow quick visual inspection for wear
  • Meets ASME B30.9, OSHA 1910.184 and WSTDA standards for regulated lifting operations

Lift-all EE2602DFX20 Web Sling Type 3

This Lift-all EE2602DFX20 is a Type 3 web sling built for lifting, pulling and conveying tasks. It suits rigging crews and maintenance teams who need a flat, wide-body sling with reinforced eyes for vertical, choker or basket hitches. The yellow polyester body provides clear visibility on site.

Thermals noise and power draw

As a passive polyester web sling, the EE2602DFX20 generates no heat, produces no noise and draws no power during normal use. Performance depends entirely on the applied load and the hitch configuration chosen by the operator. There are no thermal or acoustic limits to observe.

Vertical choker basket capacity

The sling rates 4,800 lb in a vertical hitch, 3,800 lb in a choker hitch and 9,600 lb in a basket hitch. Buyers who need higher working-load limits or a different sling type should select another model. The 20 ft length and 2 in width fix the reach and contact area for each lift.

Highlights

  • Type 3 flat-eye design enables versatile basket, choker and vertical hitches
  • Two-ply polyester construction delivers 4 800 lb vertical, 3 800 lb choker and 9 600 lb basket capacity
  • 20 ft length with 10 in eyes provides extended reach for large loads
  • Yellow colour and 1/4 in thickness allow quick visual inspection for wear
  • Meets ASME B30.9, OSHA 1910.184 and WSTDA standards for regulated lifting operations

Specifications

BrandLIFT-ALL

Questions about this item

How do I install the EE2602DFX20 web sling correctly, and which step is most often missed?

Attach the 10 in eyes to the load and lifting device using a vertical, choker or basket hitch; the step most often missed is verifying the angle — basket capacity drops at 30 and 60 degrees, so confirm the angle before lifting.

What maintenance or replacement will the EE2602DFX20 sling need over time?

Inspect the 2-ply polyester webbing before every use for cuts, abrasion, UV damage or chemical exposure; remove from service immediately if red core yarns become visible or if the ASME B30.9 tag is illegible.

What is the first capacity limit reached on the EE2602DFX20 during sustained heavy lifts?

The vertical hitch limit of 4,800 lb is reached first; choker capacity is 3,800 lb and basket capacity is 9,600 lb, so vertical loading governs the maximum working load.
