Lift-all EE1804DFX4 Web Sling Type 3 Polyester 4 in 4 ft

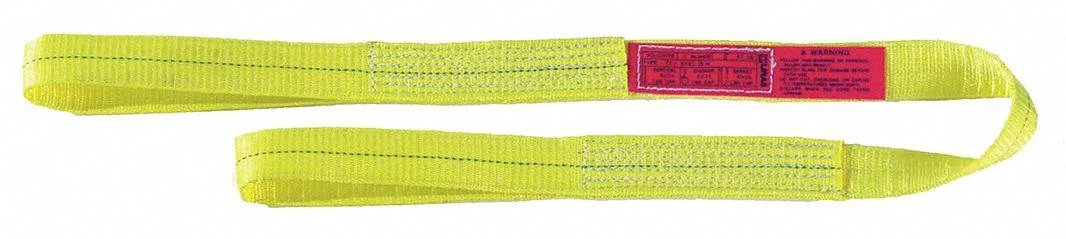

Lift-all EE1804DFX4 web sling

This Lift-all EE1804DFX4 is a Type 3 polyester web sling built for vertical, choker and basket hitches in rigging and material-handling tasks. It measures four feet long with a four-inch overall width and a 12-inch eye length. The single-ply construction uses yellow polyester webbing rated to ASME B 30.9 and OSHA 1910.184 standards. It suits crews who need a flat eye-and-eye sling for general lifting duties.

Replaces worn or undersized flat slings

Swap this in when an existing sling shows cuts, abrasion or UV damage, or when the job calls for higher vertical capacity than the current gear provides. The vertical hitch rating is 6,400 lb, choker 5,000 lb and basket 12,800 lb, so the step up is worth it whenever loads approach those limits. Do not use it where a multi-leg bridle or a hardware-fitted assembly is required, because this model has no hook attachment and only a single leg.

Simple eye-and-eye rigging

Pass the eyes over the load or hook and secure with standard shackles or master links; no tools are needed beyond the rigging hardware already on site. The 5/32-inch thickness keeps the sling flexible for tight choke points. Inspect the yellow webbing before every lift for cuts, heat damage or missing tags, as those are the most common reasons a sling fails inspection.
